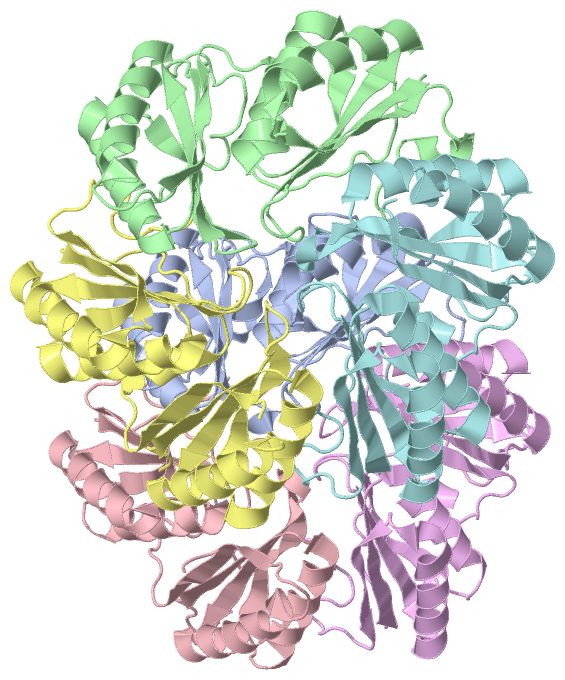

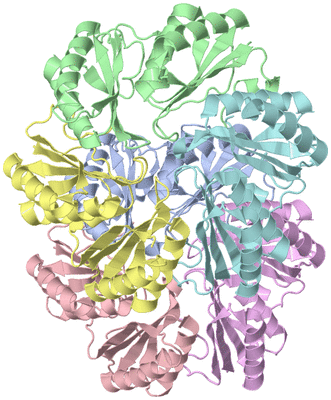

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

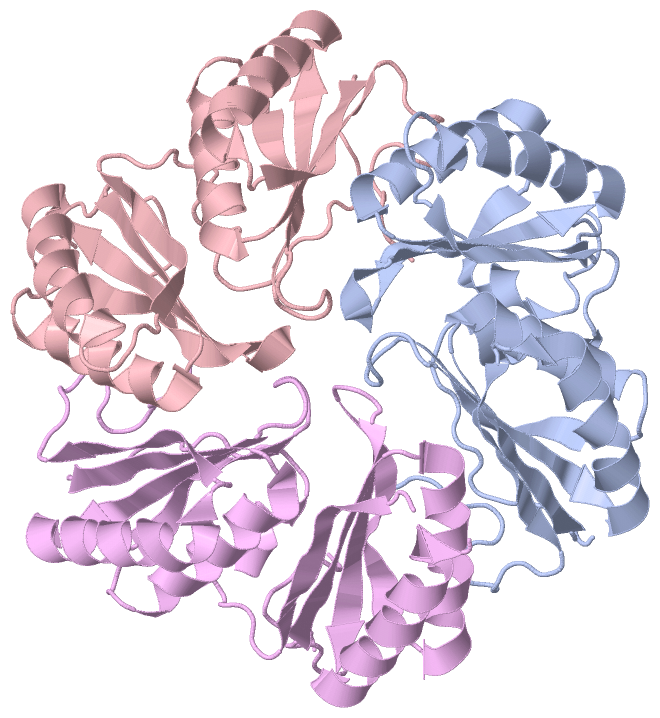

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

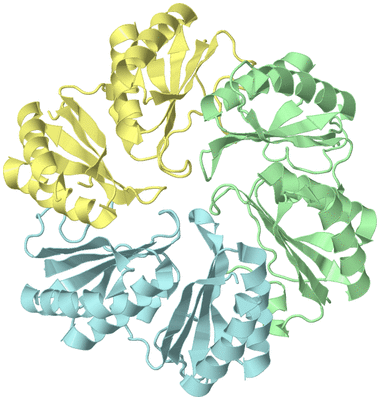

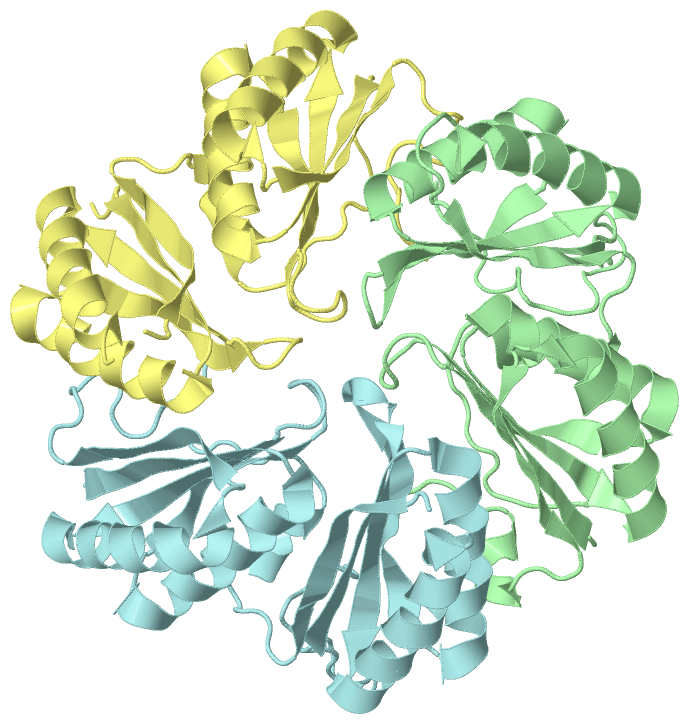

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF HALIANGIUM OCHRACEUM BMC-T HO-5812

Authors :  M. Sutter, C. Aussignargues, A. Turmo, C. A. Kerfeld
Date :  01 Sep 15  (Deposition) - 03 Feb 16  (Release) - 11 May 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.44
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,C,E  (1x)
Biol. Unit 2:  B,D,F  (1x)
Keywords :  Bacterial Microcompartments, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Aussignargues, M. E. Pandelia, M. Sutter, J. S. Plegaria, J. Zarzycki, A. Turmo, J. Huang, D. C. Ducat, E. L. Hegg, B. R. Gibney, C. A. Kerfeld
Structure And Function Of A Bacterial Microcompartment Shel Protein Engineered To Bind A [4Fe-4S] Cluster.
J. Am. Chem. Soc. V. 138 5262 2016
PubMed-ID: 26704697  |  Reference-DOI: 10.1021/JACS.5B11734

(-) Compounds

Molecule 1 - MICROCOMPARTMENTS PROTEIN
    Chains: A, B, C, D, E, F
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: HOCH_5812
    Organism Scientific: HALIANGIUM OCHRACEUM (STRAIN DSM 14365 / JCM 11303 / SMP-2)
    Organism Taxid: 502025
    Strain: DSM 14365 / JCM 11303 / SMP-2

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x): A C E
Biological Unit 2 (1x):  B D F

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5DIH)

(-) Sites  (0, 0)

(no "Site" information available for 5DIH)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5DIH)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5DIH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5DIH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5DIH)

(-) Exons   (0, 0)

(no "Exon" information available for 5DIH)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:201

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhh...........eeeeeee.hhhhhhhhhhhhhhhh..eeeeeee.hhh.eeeeeeehhhhhhhhhhhhhhhhh.....eeeeeee...hhhhhhhh............eeeeeee.hhhhhhhhhhhhh.....eeeeeee.......eeeeeeehhhhhhhhhhhhhhhhh..eeeeeee............. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5dih A   3 HAPERFDATPPAGEPDRPALGVLELTSIARGITVADAALKRAPSLLLMSRPVSSGKHLLMMRGQVAEVEESMIAAREIAGAGSGALLDELELPYAHEQLWRFLDAPVVADAWEEESVIIVETATVCAAIDSADAALKTAPVVLRDMRLAIGIAGKAFFTLTGELADVEAAAEVVRERCGARLLELACIARPVDELRGRLFF 205
                                    12        22        32        42        52        62        72        82        92       102       112   ||  124       134       144       154       164       174       184       194       204
                                                                                                                                           116|
                                                                                                                                            119


Chain B from PDB  Type:PROTEIN  Length:202

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....................eeeeeee.hhhhhhhhhhhhhhhh..eeeeeeee...eeeeeeeehhhhhhhhhhhhhhhhh.....eeeeeee...hhhhhhhh...........eeeeeee.hhhhhhhhhhhhhhhh..eeeeeee.......eeeeeeehhhhhhhhhhhhhhhhh..eeeeeee...hhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5dih B   1 MDHAPERFDATPPAGEPDRPALGVLELTSIARGITVADAALKRAPSLLLMSRPVSSGKHLLMMRGQVAEVEESMIAAREIAGAGSGALLDELELPYAHEQLWRFLDAPVVADAWEESVIIVETATVCAAIDSADAALKTAPVVLRDMRLAIGIAGKAFFTLTGELADVEAAAEVVRERCGARLLELACIARPVDELRGRLFF 205
                                    10        20        30        40        50        60        70        80        90       100       110    || 123       133       143       153       163       173       183       193       203
                                                                                                                                            115|
                                                                                                                                             119


Chain C from PDB  Type:PROTEIN  Length:191

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeee.hhhhhhhhhhhhhh....eeeeeeeehhheeeeeeeehhhhhhhhhhhhhhhhh.....eeeeeee......................eeeeeee.hhhhhhhhhhhhhh....eeeeeee.......eeeeeeehhhhhhhhhhhhhhhhh..eeeeeee............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5dih C   7 RFDAEPDRPALGVLELTSIARGITVADAALKRAPSLLLMSRPVSSGKHLLMMRGQVAEVEESMIAAREIAGAGSGALLDELELPYAHEQLWRFLDAPVVADAWEESVIIVETATVCAAIDSADAALKTAPVVLRDMRLAIGIAGKAFFTLTGELADVEAAAEVVRERCGARLLELACIARPVDELRGRLFF 205
                               ||   21        31        41        51        61        71        81        91       101       111   ||  124       134       144       154       164       174       184       194       204
                              10|                                                                                                115|
                               16                                                                                                 119


Chain D from PDB  Type:PROTEIN  Length:182

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee.hhhhhhhhhhhhhhhh..eeeeeee.....eeeeeeehhhhhhhhhhhhhhhh....eeeeeee....hhhhhhh..........eeeeeee.hhhhhhhhhhhhhhhh..eeeeeee.......eeeeeeehhhhhhhhhhhhhhhhh..eeeeeee............. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5dih D  18 DRPALGVLELTSIARGITVADAALKRAPSLLLMSRPVSSGKHLLMMRGQVAEVEESMIAAREIAGAGALLDELELPYAHEQLWRFLDAPVVADAWESVIIVETATVCAAIDSADAALKTAPVVLRDMRLAIGIAGKAFFTLTGELADVEAAAEVVRERCGARLLELACIARPVDELRGRLFF 205
                                    27        37        47        57        67        77     || 89        99       109    || 123       133       143       153       163       173       183       193       203
                                                                                            83|                         114|
                                                                                             86                          119


Chain E from PDB  Type:PROTEIN  Length:192

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .............eeeeeee.hhhhhhhhhhhhhhhh..eeeeeeee...eeeeeeeehhhhhhhhhhhhhhhhh...eeeeeee......hhhhh..........eeeeeee.hhhhhhhhhhhhhh....eeeeeee.......eeeeeeehhhhhhhhhhhhhhhhh..eeeeeee............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5dih E   6 ERFDATPPEPDRPALGVLELTSIARGITVADAALKRAPSLLLMSRPVSSGKHLLMMRGQVAEVEESMIAAREIAGAGALLDELELPYAHEQLWRFLDAPVVADAWESVIIVETATVCAAIDSADAALKTAPVVLRDMRLAIGIAGKAFFTLTGELADVEAAAEVVRERCGARLLELACIARPVDELRGRLFF 205
                                   |17        27        37        47        57        67        77     || 89        99       109    || 123       133       143       153       163       173       183       193       203
                                  13|                                                                 83|                         114|
                                   16                                                                  86                          119


Chain F from PDB  Type:PROTEIN  Length:192

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...............eeeeeee.hhhhhhhhhhhhhhhh..eeeeeeeehhheeeeeeeehhhhhhhhhhhhhhhhh...eeeeeee......hhhhh........eeeeeee.hhhhhhhhhhhhhhhh..eeeeeee.......eeeeeeehhhhhhhhhhhhhhhhh..eeeeeee............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5dih F   6 ERFDATPPAGEPDRPALGVLELTSIARGITVADAALKRAPSLLLMSRPVSSGKHLLMMRGQVAEVEESMIAAREIAGAGALLDELELPYAHEQLWRFLDAPVVADESVIIVETATVCAAIDSADAALKTAPVVLRDMRLAIGIAGKAFFTLTGELADVEAAAEVVRERCGARLLELACIARPVDELRGRLFF 205
                                    15        25        35        45        55        65        75       |87        97       107    || 123       133       143       153       163       173       183       193       203
                                                                                                        83|                       112|
                                                                                                         86                        119
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5DIH)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5DIH)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5DIH)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 5DIH)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5dih)

  Sites
(no "Sites" information available for 5dih)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5dih)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5dih
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  D0LHE3_HALO1 | D0LHE3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  D0LHE3_HALO1 | D0LHE3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        D0LHE3_HALO1 | D0LHE3: 5dii

(-) Related Entries Specified in the PDB File

5dii 5djb
