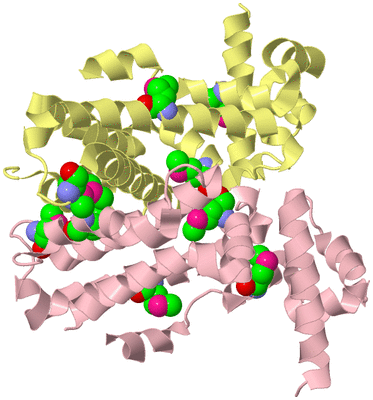

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF NALD, THE SECONDARY REPRESSOR OF MEXAB-OPRM MULTIDRUG EFFLUX PUMP IN PSEUDOMONAS AERUGINOSA

Authors :  W. Z. Chen, D. Wang, S. Q. Huang, Q. Y. Hu, X. C. Liu, J. H. Gan, H. Chen
Date :  20 Aug 15  (Deposition) - 20 Apr 16  (Release) - 08 Jun 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.65
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Keywords :  Repressor, Transcriptional Regulator, Tetr Family, Transcription Regulator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  W. Z. Chen, D. Wang, W. Zhou, H. Sang, X. C. Liu, Z. Ge, J. Zhang, L. Lan, C. G. Yang, H. Chen
Novobiocin Binding To Nald Induces The Expression Of The Mexab-Oprm Pump In Pseudomonas Aeruginosa
Mol. Microbiol. V. 100 749 2016
PubMed-ID: 26844397  |  Reference-DOI: 10.1111/MMI.13346

(-) Compounds

Molecule 1 - NALD
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Gene: NALD
    Organism Scientific: PSEUDOMONAS AERUGINOSA PAO1
    Organism Taxid: 208964

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x):       GH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 40)

Asymmetric Unit (1, 40)
No.NameCountTypeFull Name
1MSE40Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 10)
No.NameCountTypeFull Name
1MSE10Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 10)
No.NameCountTypeFull Name
1MSE10Mod. Amino AcidSELENOMETHIONINE
Biological Unit 3 (1, 10)
No.NameCountTypeFull Name
1MSE10Mod. Amino AcidSELENOMETHIONINE
Biological Unit 4 (1, 10)
No.NameCountTypeFull Name
1MSE10Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 5DAJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5DAJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5DAJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5DAJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5DAJ)

(-) Exons   (0, 0)

(no "Exon" information available for 5DAJ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:197

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5daj A   5 KEDSEKTRTAILLAAEELFLEKGVSHTSLEQIARAAGVTRGAVYWHFQNKAHLFNEmLNQVRLPPEQLTERLSSDPLRSLYDLCLEAVQSLLTQEKKRRILTILmQRCEFTEELREAQERNNAFVQmFIELCEQLFARDECRVRLHPGmTPRIASRALHALILGLFNDWLRDPRLFDPDTDAEHLLEPmFRGLVRDW 205
                                    14        24        34        44        54      | 64        74  ||    88        98       108    |  118       128      |138       148       158       168       178       188       198
                                                                                   61-MSE          77|                            113-MSE               135-MSE               157-MSE                                 197-MSE
                                                                                                    82


Chain B from PDB  Type:PROTEIN  Length:195

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5daj B   7 DSEKTRTAILLAAEELFLEKGVSHTSLEQIARAAGVTRGAVYWHFQNKAHLFNEmLNQVRLPPEQLTERLSSDPLRSLYDLCLEAVQSLLTQEKKRRILTILmQRCEFTEELREAQERNNAFVQmFIELCEQLFARDECRVRLHPGmTPRIASRALHALILGLFNDWLRDPRLFDPDTDAEHLLEPmFRGLVRDW 205
                                    16        26        36        46        56    |   66        76||      90       100       110  |    120       130    |  140       150      |160       170       180       190      |200
                                                                                 61-MSE          77|                            113-MSE               135-MSE               157-MSE                                 197-MSE
                                                                                                  82


Chain C from PDB  Type:PROTEIN  Length:195

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5daj C   5 KEDSEKTRTAILLAAEELFLEKGVSHTSLEQIARAAGVTRGAVYWHFQNKAHLFNEmLNQVRLPPEQLTERLDPLRSLYDLCLEAVQSLLTQEKKRRILTILmQRCEFTEELREAQERNNAFVQmFIELCEQLFARDECRVRLHPGmTPRIASRALHALILGLFNDWLRDPRLFDPDTDAEHLLEPmFRGLVRDW 205
                                    14        24        34        44        54      | 64        74 ||     90       100       110  |    120       130    |  140       150      |160       170       180       190      |200
                                                                                   61-MSE         76|                           113-MSE               135-MSE               157-MSE                                 197-MSE
                                                                                                   83


Chain D from PDB  Type:PROTEIN  Length:192

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5daj D   7 DSEKTRTAILLAAEELFLEKGVSHTSLEQIARAAGVTRGAVYWHFQNKAHLFNEmLNQVRLPPEQLTERDPLRSLYDLCLEAVQSLLTQEKKRRILTILmQRCEFTEELREAQERNNAFVQmFIELCEQLFARDECRVRLHPGmTPRIASRALHALILGLFNDWLRDPRLFDPDTDAEHLLEPmFRGLVRDW 205
                                    16        26        36        46        56    |   66        83        93       103       113       123       133 |     143       153   |   163       173       183       193   |   203
                                                                                 61-MSE        75|                           113-MSE               135-MSE               157-MSE                                 197-MSE
                                                                                                83


Chain E from PDB  Type:PROTEIN  Length:193

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5daj E   8 SEKTRTAILLAAEELFLEKGVSHTSLEQIARAAGVTRGAVYWHFQNKAHLFNEmLNQVRLPPEQLTERLSDPLRSLYDLCLEAVQSLLTQEKKRRILTILmQRCEFTEELREAQERNNAFVQmFIELCEQLFARDECRVRLHPGmTPRIASRALHALILGLFNDWLRDPRLFDPDTDAEHLLEPmFRGLVRDW 205
                                    17        27        37        47        57   |    67        77|       92       102       112|      122       132  |    142       152    |  162       172       182       192    |  202
                                                                                61-MSE          77|                           113-MSE               135-MSE               157-MSE                                 197-MSE
                                                                                                 83


Chain F from PDB  Type:PROTEIN  Length:193

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5daj F   7 DSEKTRTAILLAAEELFLEKGVSHTSLEQIARAAGVTRGAVYWHFQNKAHLFNEmLNQVRLPPEQLTERLDPLRSLYDLCLEAVQSLLTQEKKRRILTILmQRCEFTEELREAQERNNAFVQmFIELCEQLFARDECRVRLHPGmTPRIASRALHALILGLFNDWLRDPRLFDPDTDAEHLLEPmFRGLVRDW 205
                                    16        26        36        46        56    |   66        76|       92       102       112|      122       132  |    142       152    |  162       172       182       192    |  202
                                                                                 61-MSE         76|                           113-MSE               135-MSE               157-MSE                                 197-MSE
                                                                                                 83


Chain G from PDB  Type:PROTEIN  Length:198

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5daj G   8 SEKTRTAILLAAEELFLEKGVSHTSLEQIARAAGVTRGAVYWHFQNKAHLFNEmLNQVRLPPEQLTERLSGCDGSDPLRSLYDLCLEAVQSLLTQEKKRRILTILmQRCEFTEELREAQERNNAFVQmFIELCEQLFARDECRVRLHPGmTPRIASRALHALILGLFNDWLRDPRLFDPDTDAEHLLEPmFRGLVRDW 205
                                    17        27        37        47        57   |    67        77        87        97       107     | 117       127       137       147       157       167       177       187       197
                                                                                61-MSE                                             113-MSE               135-MSE               157-MSE                                 197-MSE


Chain H from PDB  Type:PROTEIN  Length:196

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5daj H   6 EDSEKTRTAILLAAEELFLEKGVSHTSLEQIARAAGVTRGAVYWHFQNKAHLFNEmLNQVRLPPEQLTERLSDPLRSLYDLCLEAVQSLLTQEKKRRILTILmQRCEFTEELREAQERNNAFVQmFIELCEQLFARDECRVRLHPGmTPRIASRALHALILGLFNDWLRDPRLFDPDTDAEHLLEPmFRGLVRDWG 206
                                    15        25        35        45        55     |  65        75 ||     90       100       110  |    120       130    |  140       150      |160       170       180       190      |200
                                                                                  61-MSE          77|                           113-MSE               135-MSE               157-MSE                                 197-MSE
                                                                                                   83
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
