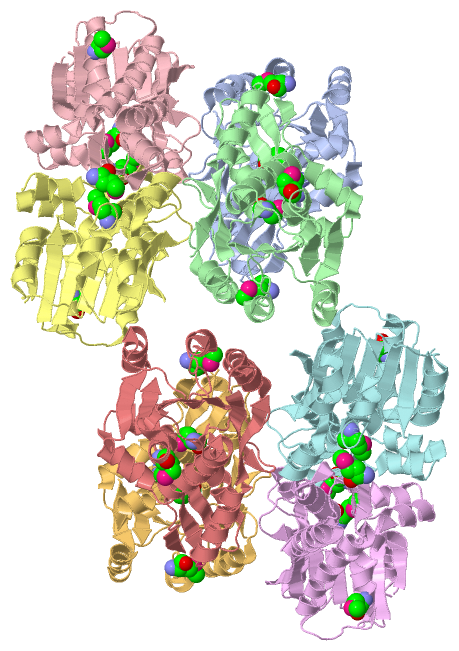

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

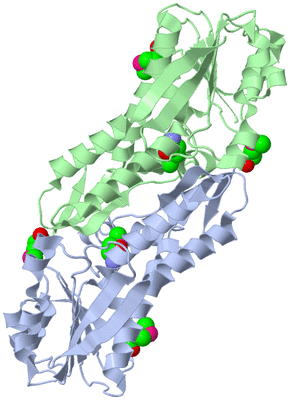

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

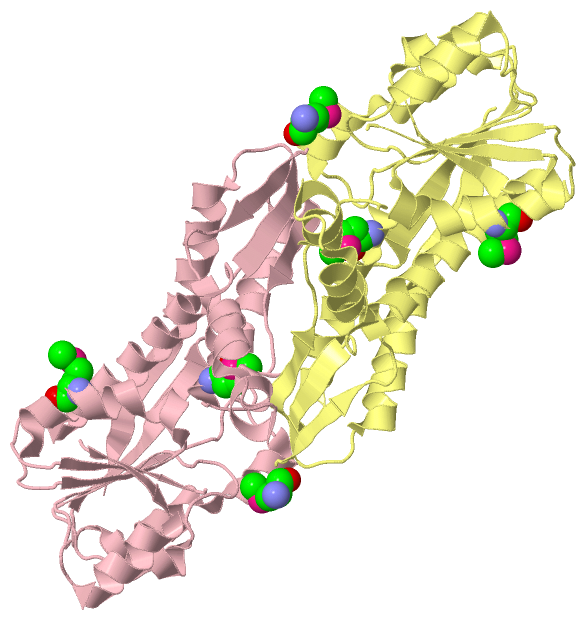

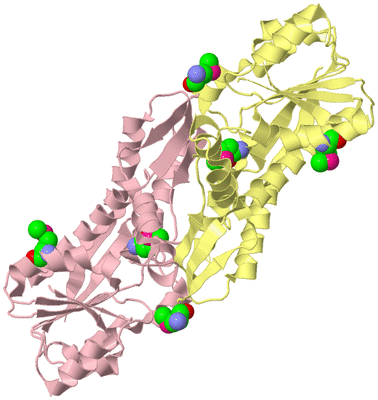

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

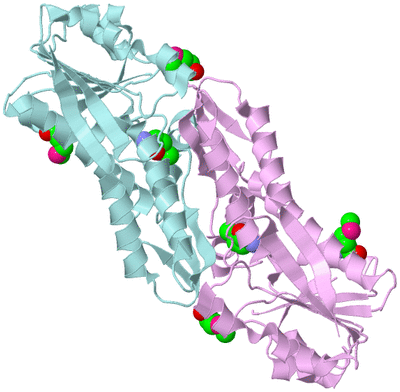

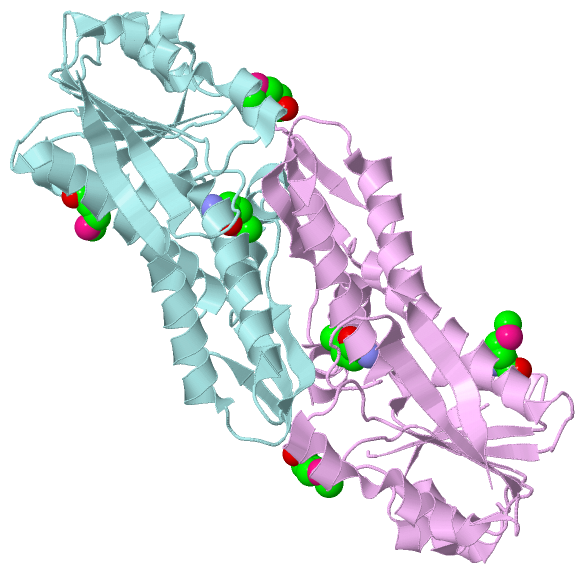

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

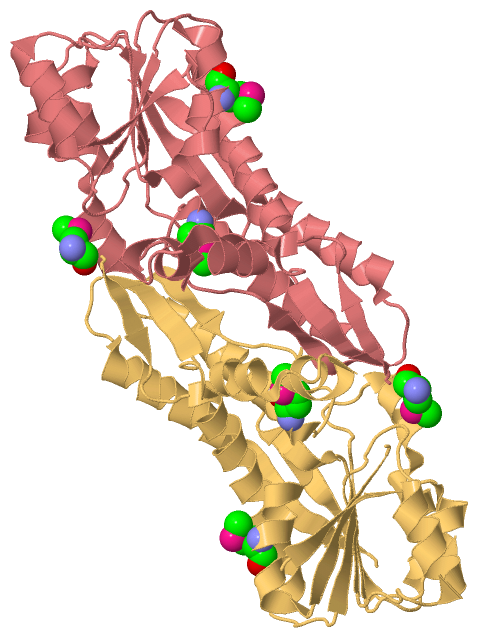

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  SEMET-LABELLED HCGC FROM METHANOCALDOCOCCUS JANNASCHII IN SPACE GROUP P212121

Authors :  T. Fujishiro, U. Ermler, S. Shima
Date :  09 Aug 15  (Deposition) - 20 Jul 16  (Release) - 10 Aug 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Keywords :  Rossmann-Like Fold, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Fujishiro, L. Bai, T. Xu, X. Xie, M. Schick, J. Kahnt, M. Rother, X. Hu U. Ermler, S. Shima
Identification Of Hcgc As A Sam-Dependent Pyridinol Methyltransferase In [Fe]-Hydrogenase Cofactor Biosynthesis
Angew. Chem. Int. Ed. Engl. V. 55 9648 2016
PubMed-ID: 27391308  |  Reference-DOI: 10.1002/ANIE.201604352

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN MJ0489
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET24B
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: ROSSMANN-LIKE DOMAIN, RESIDUES 2-268
    Gene: MJ0489
    Organism Scientific: METHANOCALDOCOCCUS JANNASCHII
    Organism Taxid: 2190
    Synonym: HCGC

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x):       GH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 24)

Asymmetric Unit (1, 24)
No.NameCountTypeFull Name
1MSE24Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 3 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 4 (1, 6)
No.NameCountTypeFull Name
1MSE6Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 5D4T)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5D4T)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5D4T)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5D4T)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5D4T)

(-) Exons   (0, 0)

(no "Exon" information available for 5D4T)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:243

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...hhhhhhhhhhhhhhhhhhhhhh......eeee.hhhhhhhhhhhhh.....eeeee..eeeehhhhhhhhhh......eeee.......hhhhhh.....eeeee......hhhhhhhhhhhhhhhhhh...eeeeeeeee........hhhhhhhhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...eeeee...hhhhhhhhhhhhhhheeeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5d4t A  13 mVKTIDTKTRVVDVTNEIAKKKYQAIRDFLEGEEFKEVVIFGVYLWGNYTAQmLSKYADKVYLVDIIKFLNLNEFKLKFIRGEVNPDLIVDLTGLGGIEPEFLAKFNPKVFIVEDPKGVFDVDIYEADNTYKRTAPFIEKAKVGVLKTYRKARVSKTSGTmTLTIDTIVDASREITSLDGVLYAIPNLRYYEGILFHENDIHKFLSEISQPAITISTLNDVLDEAEEILSNNINLIYSFVEEL 268
                            |       22        32        42        52        62  |     72     || 95       105       115       125       135       145       155       165       175       185|      195       205       215       225       235       245       255       265
                            |                                                  65-MSE       78|                                                                                           186-MSE
                           13-MSE                                                            92


Chain B from PDB  Type:PROTEIN  Length:246

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeee...hhhhhhhhhhhhhhhhhhhhhh......eeee.hhhhhhhhhhhhh.....eeeee....eeeeehhhhhhhhhh......eeee.......hhhhhh.....eeeee......hhhhhhhhhhhhhhhhhh...eeeeeeeee........hhhhhhhhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...eeeee...hhhhhhhhhhhhhhheeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5d4t B  13 mVKTIDTKTRVVDVTNEIAKKKYQAIRDFLEGEEFKEVVIFGVYLWGNYTAQmLSKYADKVYLVDINNSIKFLNLNEFKLKFIRGEVNPDLIVDLTGLGGIEPEFLAKFNPKVFIVEDPKGVFDVDIYEADNTYKRTAPFIEKAKVGVLKTYRKARVSKTSGTmTLTIDTIVDASREITSLDGVLYAIPNLRYYEGILFHENDIHKFLSEISQPAITISTLNDVLDEAEEILSNNINLIYSFVEEL 268
                            |       22        32        42        52        62  |     72     || 92       102       112       122       132       142       152       162       172       182   |   192       202       212       222       232       242       252       262
                           13-MSE                                              65-MSE       78|                                                                                              186-MSE
                                                                                             89


Chain C from PDB  Type:PROTEIN  Length:243

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...hhhhhhhhhhhhhhhhhhhhh.......eeee.hhhhhhhhhhhhhhhh..eeeee..eeeehhhhhhhhhh......eeee.......hhhhhh.....eeeee......hhhhhhhhhhhhhhhhhh...eeeeeeeee........hhhhhhhhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...eeeee...hhhhhhhhhhhhhhheeeeeeee Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5d4t C  13 mVKTIDTKTRVVDVTNEIAKKKYQAIRDFLEGEEFKEVVIFGVYLWGNYTAQmLSKYADKVYLVDIIKFLNLNEFKLKFIRGEVNPDLIVDLTGLGGIEPEFLAKFNPKVFIVEDPKGVFDVDIYEADNTYKRTAPFIEKAKVGVLKTYRKARVSKTSGTmTLTIDTIVDASREITSLDGVLYAIPNLRYYEGILFHENDIHKFLSEISQPAITISTLNDVLDEAEEILSNNINLIYSFVEEL 268
                            |       22        32        42        52        62  |     72     || 95       105       115       125       135       145       155       165       175       185|      195       205       215       225       235       245       255       265
                           13-MSE                                              65-MSE       78|                                                                                           186-MSE
                                                                                             92


Chain D from PDB  Type:PROTEIN  Length:244

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...hhhhhhhhhhhhhhhhhhhhhh.....eeeee.hhhhhhhhhhhhhhhh.eeeeee..eeeeehhhhhhhhhh......eeee.......hhhhhh.....eeeee......hhhhhhhhhhhhhhhhhh...eeeeeeeee........hhhhhhhhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...eeeee...hhhhhhhhhhhhhhheeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5d4t D  13 mVKTIDTKTRVVDVTNEIAKKKYQAIRDFLEGEEFKEVVIFGVYLWGNYTAQmLSKYADKVYLVDISIKFLNLNEFKLKFIRGEVNPDLIVDLTGLGGIEPEFLAKFNPKVFIVEDPKGVFDVDIYEADNTYKRTAPFIEKAKVGVLKTYRKARVSKTSGTmTLTIDTIVDASREITSLDGVLYAIPNLRYYEGILFHENDIHKFLSEISQPAITISTLNDVLDEAEEILSNNINLIYSFVEEL 268
                            |       22        32        42        52        62  |     72     || 94       104       114       124       134       144       154       164       174       184 |     194       204       214       224       234       244       254       264
                           13-MSE                                              65-MSE       78|                                                                                            186-MSE
                                                                                             91


Chain E from PDB  Type:PROTEIN  Length:243

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...hhhhhhhhhhhhhhhhhhhhh......eeeee.hhhhhhhhhhhhh....eeeeee..eeeehhhhhhhhhh......eeee.......hhhhhh.....eeeee......hhhhhhhhhhhhhhhhhh...eeeeeeeee........hhhhhhhhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...eeeee...hhhhhhhhhhhhhhheeeeeeee Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5d4t E  13 mVKTIDTKTRVVDVTNEIAKKKYQAIRDFLEGEEFKEVVIFGVYLWGNYTAQmLSKYADKVYLVDIIKFLNLNEFKLKFIRGEVNPDLIVDLTGLGGIEPEFLAKFNPKVFIVEDPKGVFDVDIYEADNTYKRTAPFIEKAKVGVLKTYRKARVSKTSGTmTLTIDTIVDASREITSLDGVLYAIPNLRYYEGILFHENDIHKFLSEISQPAITISTLNDVLDEAEEILSNNINLIYSFVEEL 268
                            |       22        32        42        52        62  |     72     || 95       105       115       125       135       145       155       165       175       185|      195       205       215       225       235       245       255       265
                           13-MSE                                              65-MSE       78|                                                                                           186-MSE
                                                                                             92


Chain F from PDB  Type:PROTEIN  Length:244

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...hhhhhhhhhhhhhhhhhhhhhh......eeee.hhhhhhhhhhhhhhhh..eeeee..eeeeehhhhhhhhhh......eeee.......hhhhhh.....eeeee......hhhhhhhhhhhhhhhhhh...eeeeeeeee........hhhhhhhhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...eeeee...hhhhhhhhhhhhhhheeeeeeee Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5d4t F  13 mVKTIDTKTRVVDVTNEIAKKKYQAIRDFLEGEEFKEVVIFGVYLWGNYTAQmLSKYADKVYLVDISIKFLNLNEFKLKFIRGEVNPDLIVDLTGLGGIEPEFLAKFNPKVFIVEDPKGVFDVDIYEADNTYKRTAPFIEKAKVGVLKTYRKARVSKTSGTmTLTIDTIVDASREITSLDGVLYAIPNLRYYEGILFHENDIHKFLSEISQPAITISTLNDVLDEAEEILSNNINLIYSFVEEL 268
                            |       22        32        42        52        62  |     72     || 94       104       114       124       134       144       154       164       174       184 |     194       204       214       224       234       244       254       264
                           13-MSE                                              65-MSE       78|                                                                                            186-MSE
                                                                                             91


Chain G from PDB  Type:PROTEIN  Length:244

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...hhhhhhhhhhhhhhhhhhhhhh.....eeeee.hhhhhhhhhhhhhhhh.eeeeee..eeeeehhhhhhhhhh......eeee.......hhhhhh.....eeeee......hhhhhhhhhhhhhhhhhh...eeeeeeeee........hhhhhhhhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...eeeee...hhhhhhhhhhhhhhheeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5d4t G  13 mVKTIDTKTRVVDVTNEIAKKKYQAIRDFLEGEEFKEVVIFGVYLWGNYTAQmLSKYADKVYLVDISIKFLNLNEFKLKFIRGEVNPDLIVDLTGLGGIEPEFLAKFNPKVFIVEDPKGVFDVDIYEADNTYKRTAPFIEKAKVGVLKTYRKARVSKTSGTmTLTIDTIVDASREITSLDGVLYAIPNLRYYEGILFHENDIHKFLSEISQPAITISTLNDVLDEAEEILSNNINLIYSFVEEL 268
                            |       22        32        42        52        62  |     72     || 94       104       114       124       134       144       154       164       174       184 |     194       204       214       224       234       244       254       264
                           13-MSE                                              65-MSE       78|                                                                                            186-MSE
                                                                                             91


Chain H from PDB  Type:PROTEIN  Length:247

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...hhhhhhhhhhhhhhhhhhhhh.......eeee.hhhhhhhhhhhhhhhh..eeeee.....eeeeehhhhhhhhhh......eeee.......hhhhhh.....eeeee......hhhhhhhhhhhhhhhhhh...eeeeeeeee........hhhhhhhhhhhhhhhhhhh...eeeeee...hhhhhhhh..hhhhhhhhhh...eeeee...hhhhhhhhhhhhhhheeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5d4t H  13 mVKTIDTKTRVVDVTNEIAKKKYQAIRDFLEGEEFKEVVIFGVYLWGNYTAQmLSKYADKVYLVDINNNSIKFLNLNEFKLKFIRGEVNPDLIVDLTGLGGIEPEFLAKFNPKVFIVEDPKGVFDVDIYEADNTYKRTAPFIEKAKVGVLKTYRKARVSKTSGTmTLTIDTIVDASREITSLDGVLYAIPNLRYYEGILFHENDIHKFLSEISQPAITISTLNDVLDEAEEILSNNINLIYSFVEEL 268
                            |       22        32        42        52        62  |     72     || 91       101       111       121       131       141       151       161       171       181    |  191       201       211       221       231       241       251       261
                           13-MSE                                              65-MSE       78|                                                                                               186-MSE
                                                                                             88
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5D4T)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5D4T)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5D4T)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 5D4T)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 5d4t)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5d4t)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5d4t
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y489_METJA | Q57913
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y489_METJA | Q57913
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Y489_METJA | Q57913: 5d4u 5d4v 5d5o 5d5t

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5D4T)
