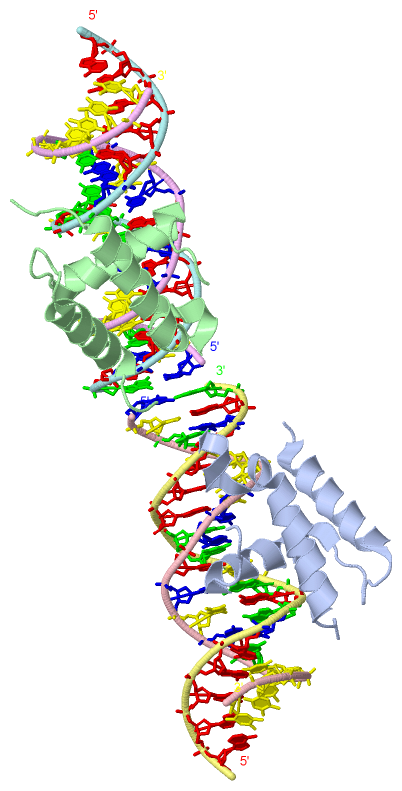

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE DROSOPHILA ZESTE DNA BINDING DOMAIN IN COMPLEX WITH DNA

Authors :  G. N. Gao, M. Wang, N. Yang, Y. Huang, R. M. Xu
Date :  22 Jul 15  (Deposition) - 04 Nov 15  (Release) - 09 Dec 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.10
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,C,D  (1x)
Biol. Unit 2:  B,E,F  (1x)
Keywords :  Complex, Protein-Dna Interaction, Tanscription Factor, Gene Regulation, Transcription-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. N. Gao, M. Wang, N. Yang, Y. Huang, R. M. Xu
Structure Of Zeste-Dna Complex Reveals A New Modality Of Dn Recognition By Homeodomain-Like Proteins
J. Mol. Biol. V. 427 3824 2015
PubMed-ID: 26478222  |  Reference-DOI: 10.1016/J.JMB.2015.10.008

(-) Compounds

Molecule 1 - REGULATORY PROTEIN ZESTE
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PGEX-4T-1
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 51-130
    Gene: Z, CG7803
    Organism Common: FRUIT FLY
    Organism Scientific: DROSOPHILA MELANOGASTER
    Organism Taxid: 7227

Molecule 2 - DNA (5'- D(*CP*TP*GP*TP*TP*TP*TP*CP*CP*AP*CP*TP*CP*GP*TP*TP*TP*TP*T)-3')
    Chains: C, E
    Engineered: YES
    Organism Scientific: DROSOPHILA MELANOGASTER
    Organism Taxid: 7227
    Synthetic: YES

Molecule 3 - DNA (5'- D(*AP*AP*AP*AP*AP*CP*GP*AP*GP*TP*GP*GP*AP*AP*AP*AP*CP*AP*G)-3')
    Chains: D, F
    Engineered: YES
    Organism Scientific: DROSOPHILA MELANOGASTER
    Organism Taxid: 7227
    Synthetic: YES

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x): A CD
Biological Unit 2 (1x):  B  EF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5CQQ)

(-) Sites  (0, 0)

(no "Site" information available for 5CQQ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5CQQ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5CQQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5CQQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5CQQ)

(-) Exons   (0, 0)

(no "Exon" information available for 5CQQ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:74

               SCOP domains -------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------- Transcript
                 5cqq A  52 LTPRFTAEEKEVLYTLFHLHEEVIDIKHRKYSVRETWDKIVKDFNSHPHVSAMRNIKQIQKFWLNSRLRKQYPY 130
                                    61        71        81|       96       106       116       126
                                                        81|
                                                         87


Chain B from PDB  Type:PROTEIN  Length:75

               SCOP domains --------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------- Transcript
                 5cqq B  52 LTPRFTAEEKEVLYTLFHLHEEVIDIKHRNKYSVRETWDKIVKDFNSHPHVSAMRNIKQIQKFWLNSRLRKQYPY 130
                                    61        71        85        95       105       115       125
                                                       80|
                                                        85


Chain C from PDB  Type:DNA  Length:19

                 5cqq C   1 CTGTTTTCCACTCGTTTTT  19
                                    10


Chain D from PDB  Type:DNA  Length:19

                 5cqq D   1 AAAAACGAGTGGAAAACAG  19
                                    10


Chain E from PDB  Type:DNA  Length:19

                 5cqq E   1 CTGTTTTCCACTCGTTTTT  19
                                    10


Chain F from PDB  Type:DNA  Length:19

                 5cqq F   1 AAAAACGAGTGGAAAACAG  19
                                    10
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5CQQ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5CQQ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5CQQ)

(-) Gene Ontology  (13, 13)
