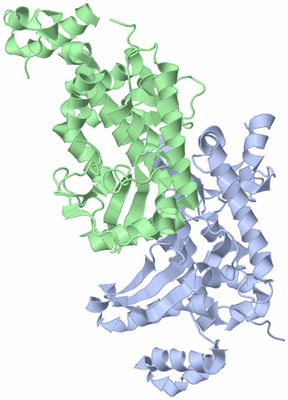

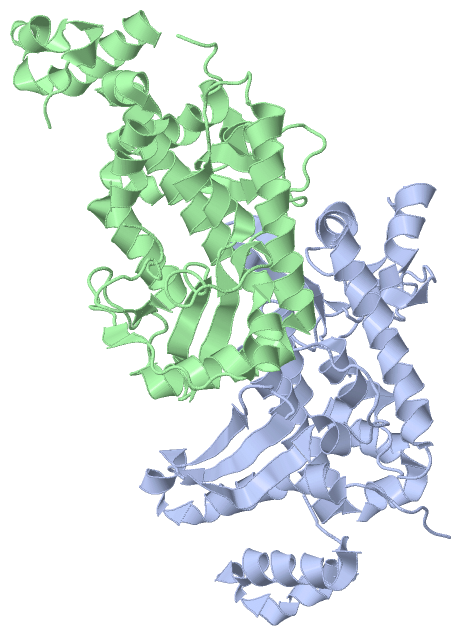

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

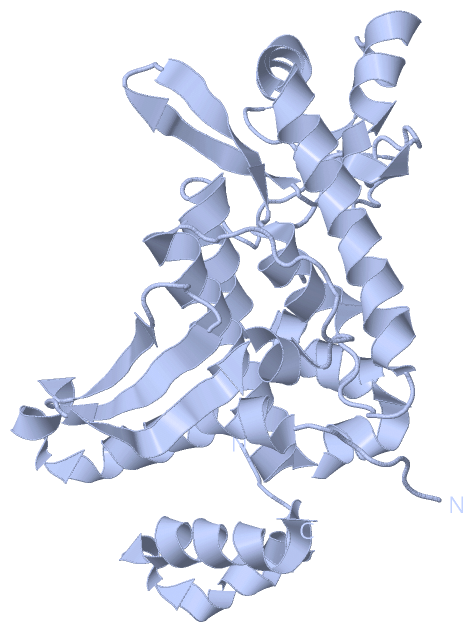

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

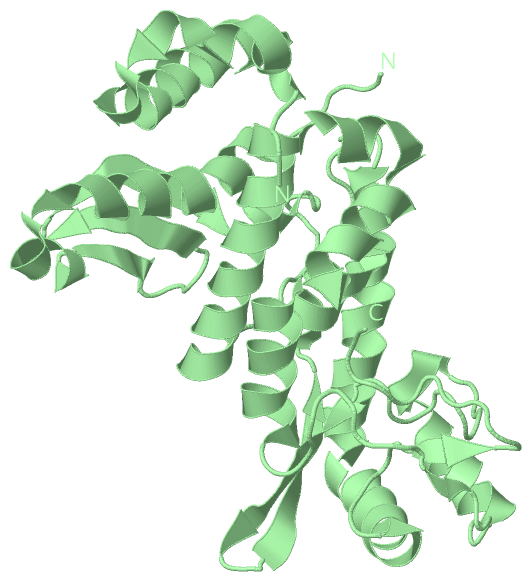

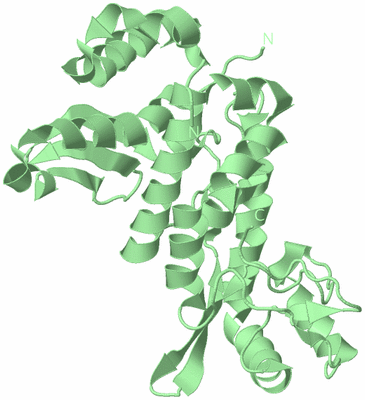

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF SOPD, A TYPE III SECRETED VIRULENCE EFFECTOR FROM SALMONELLA ENTERICA

Authors :  R. Shi, M. Cygler, Montreal-Kingston Bacterial Structural Genomi Initiative (Bsgi)
Date :  21 Jul 15  (Deposition) - 09 Sep 15  (Release) - 16 Sep 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.15
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  T3Ss Effector Protein, Structural Genomics, Montreal-Kingston Bacterial Structural Genomics Initiative, Bsgi, Cell Invasion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. M. D'Costa, V. Braun, M. Landekic, R. Shi, A. Proteau, L. Mcdonald, M. Cygler, S. Grinstein, J. H. Brumell
Salmonella Disrupts Host Endocytic Trafficking By Sopd2-Mediated Inhibition Of Rab7.
Cell Rep V. 12 1508 2015
PubMed-ID: 26299973  |  Reference-DOI: 10.1016/J.CELREP.2015.07.063

(-) Compounds

Molecule 1 - SECRETED EFFECTOR PROTEIN SOPD
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET15B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: SOPD, STM2945
    Organism Scientific: SALMONELLA TYPHIMURIUM (STRAIN LT2 / SGSC1412 / ATCC 700720)
    Organism Taxid: 99287
    Strain: LT2 / SGSC1412 / ATCC 700720
    Synonym: SALMONELLA OUTER PROTEIN D

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5CPC)

(-) Sites  (0, 0)

(no "Site" information available for 5CPC)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5CPC)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5CPC)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5CPC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5CPC)

(-) Exons   (0, 0)

(no "Exon" information available for 5CPC)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:281

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh.eeeee.....eeeeee..eeeeeeehhhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........ee.....hhhhhhhhhhhhh...........eeeeee..eeeeee.hhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....ee........... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5cpc A  30 KAIHMGGWDKVQDHFRAEKKDHALEVLHSIIHGEMEVNVEDINKIYAFKRLQHLACPAHQDLFTIKMDASQTQFLLMVGDTVISQSNIKDILNISDDAVIESMSREERQLFLQICEVIGSKMTWHPELLQESISTLRKEVTGNAQIKTAVYEMMRPAEAPDHPLVEWQDSLTADEKSMLACINAGNFEPTTQFCKIGYQEVQGEVAFSMMHPCISYLLHSYSPFSEFKPTNSGFLKKLNQDYNDYHAKKMFIDVILEKLYLTHERSLHIGKDGCSRNILLT 317
                                    39        49        59 ||     76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316
                                                          61|
                                                           69


Chain B from PDB  Type:PROTEIN  Length:280

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhh.eeeee.....eeeeee..eeeeeeehhhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........ee.....hhhhhhhhhhhhh...........eeeeee..eeeeee.hhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....ee........... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5cpc B  30 KAIHMGGWDKVQDHFRAEKKDHALEVLHSIIHEMEVNVEDINKIYAFKRLQHLACPAHQDLFTIKMDASQTQFLLMVGDTVISQSNIKDILNISDDAVIESMSREERQLFLQICEVIGSKMTWHPELLQESISTLRKEVTGNAQIKTAVYEMMRPAEAPDHPLVEWQDSLTADEKSMLACINAGNFEPTTQFCKIGYQEVQGEVAFSMMHPCISYLLHSYSPFSEFKPTNSGFLKKLNQDYNDYHAKKMFIDVILEKLYLTHERSLHIGKDGCSRNILLT 317
                                    39        49        59 ||     77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317
                                                          61|
                                                           70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
