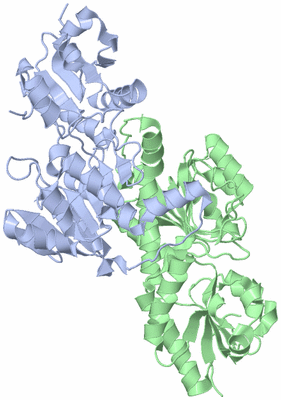

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF NADP-DEPENDENT DEHYDROGENASE FROM RHODOBACTER SPHAEROIDES

Authors :  M. Kowiel, O. A. Gasiorowska, I. G. Shabalin, K. B. Handing, P. J. Porebs M. Cymborowski, N. F. Al Obaidi, J. Bonanno, S. C. Almo, W. Minor, New Structural Genomics Research Consortium (Nysgrc)
Date :  19 Jun 15  (Deposition) - 01 Jul 15  (Release) - 01 Jul 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Structural Genomics, Psi-Biology, New York Structural Genomics Research Consortium, Nysgrc, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Kowiel, O. A. Gasiorowska, I. G. Shabalin, K. B. Handing, P. J. Porebski, J. Bonanno, S. C. Almo, W. Minor
Crystal Structures Of Nadp-Dependent Dehydrogenase From Rhodobacter Sphaeroides
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - NADP-DEPENDENT DEHYDROGENASE
    Chains: A, B
    EC Number: 1.1.1.79, 1.1.1.81
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PSGC-HIS
    Expression System Strain: BL21 (DE3) RIL
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: RSP_3442
    Organism Scientific: RHODOBACTER SPHAEROIDES
    Organism Taxid: 272943
    Other Details: BEFORE CRYSTALLIZATION PROTEIN WAS INCUBATED WITH 1/50 V/V OF 2 MG/ML CHYMOTRYPSIN.
    Strain: ATCC 17023 / 2.4.1 / NCIB 8253 / DSM 158

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5C5I)

(-) Sites  (0, 0)

(no "Site" information available for 5C5I)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5C5I)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Glu A:257 -Pro A:258
2Glu B:257 -Pro B:258

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5C5I)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5C5I)

(-) Exons   (0, 0)

(no "Exon" information available for 5C5I)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:311

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeee..hhhhhhhhhhhhhhhh....eee.hhhhhhhhhheeeeeee..hhhhhh......eeee....hhhhhhhhhhhh..ee.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhh.eeeee..hhhhhhhhhhhhhh..eeeeee.........eeeehhhhhhhhhhh..eeee............hhhhhhhh...eeeee..hhhhhhhhhhhhhhhhh.eeeeee...................eee........hhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5c5i A  -2 FQSMSRIALVTRLSPEAEAHWAGHLARALPGERIDGFRELSPAERAEVDIAIVANPDPADLAELPNLVWIHSLWAGVERLVAELGHLARPIVRLVDPELARTMAEAALAWTYYLFRDMPAYAAQQRARVWKGLPYKRPERTTVGVLGLGELGAAAALRLRDAGFDVHGWSRSPKEIAGVTCHAGEETLERMLGQVEILVCLLPLTGETRGLLDARRLACLPEGAQIVNFARGPILDSAALIEALDSGRIGHAVLDVFEVEPLPEASPFWGHPKVTVLPHISAATDPETASAIVGAHVADYRATGRIPPSVD 308
                                     7        17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307


Chain B from PDB  Type:PROTEIN  Length:309

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee..hhhhhhhhhhhhhhhh....eee.hhhhhhhhhheeeeeee..hhhhhh......eeee....hhhhhhhhhhhh..ee.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhh.eeeee..hhhhhhhhhhhhhh..eeeeee.........eeeehhhhhhhhhhh..eeee............hhhhhhhh...eeeee..hhhhhhhhhhhhhhhhh.eeeeee...................eee..hhhhh.hhhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5c5i B   0 SMSRIALVTRLSPEAEAHWAGHLARALPGERIDGFRELSPAERAEVDIAIVANPDPADLAELPNLVWIHSLWAGVERLVAELGHLARPIVRLVDPELARTMAEAALAWTYYLFRDMPAYAAQQRARVWKGLPYKRPERTTVGVLGLGELGAAAALRLRDAGFDVHGWSRSPKEIAGVTCHAGEETLERMLGQVEILVCLLPLTGETRGLLDARRLACLPEGAQIVNFARGPILDSAALIEALDSGRIGHAVLDVFEVEPLPEASPFWGHPKVTVLPHISAATDPETASAIVGAHVADYRATGRIPPSVD 308
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5C5I)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5C5I)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5C5I)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5c5i)

  Sites
(no "Sites" information available for 5c5i)

  Cis Peptide Bonds
    Glu A:257 - Pro A:258   [ RasMol ]
    Glu B:257 - Pro B:258   [ RasMol ]

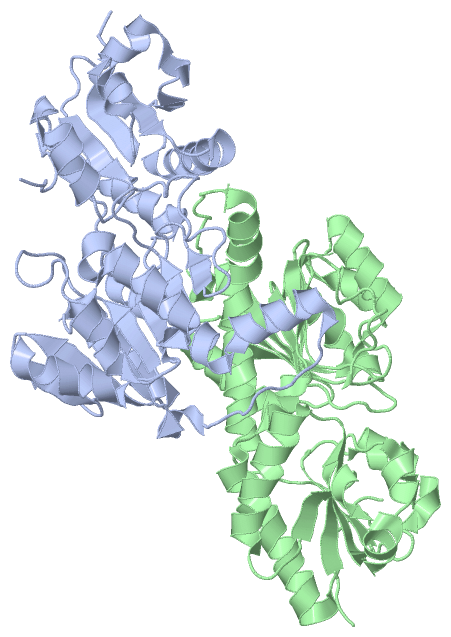

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5c5i
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q3IWN8_RHOS4 | Q3IWN8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  1.1.1.79
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc
  1.1.1.81
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q3IWN8_RHOS4 | Q3IWN8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q3IWN8_RHOS4 | Q3IWN8: 4zqb

(-) Related Entries Specified in the PDB File

4zqb 4ZQB CONTAINS THE SAME PROTEIN COMPLEXED WITH NADP AND SULFATE RELATED ID: NYSGRC-014667 RELATED DB: TARGETTRACK
