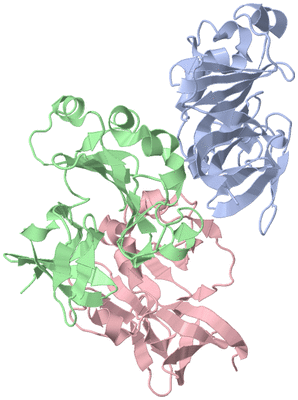

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE C-TERMINAL DOMAIN OF TAGH

Authors :  S. C. Chen, Y. Chen
Date :  26 May 15  (Deposition) - 06 Jul 16  (Release) - 06 Jul 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.68
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Keywords :  Transporter, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. P. Ko, S. T. Tseng, S. J. Lai, S. C. Chen, H. H. Guan, C. S. Yang, C. J. Chen, Y. Chen
Sh3-Like Motif-Containing C-Terminal Domain Of Staphylococcal Teichoic Acid Transporter Suggests Possible Function.
Proteins 2016
PubMed-ID: 27213893  |  Reference-DOI: 10.1002/PROT.25074

(-) Compounds

Molecule 1 - ABC TRANSPORTER, ATP-BINDING PROTEIN
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Taxid: 511693
    Fragment: UNP RESIDUES 327-505
    Gene: SERP1409
    Organism Scientific: STAPHYLOCOCCUS EPIDERMIDIS (STRAIN ATCC 35984 / RP62A)
    Organism Taxid: 176279
    Strain: ATCC 35984 / RP62A

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5BND)

(-) Sites  (0, 0)

(no "Site" information available for 5BND)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5BND)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5BND)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5BND)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5BND)

(-) Exons   (0, 0)

(no "Exon" information available for 5BND)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:179

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....eee.....eee....eeeeeeee..eeeeee..eeeeee.hhheee......ee.....hhhhhhhhhhhhhhhhhh....hhhhhh...........eee......eeee.hhh.eeeeeee..hhhhhhh.......eeeeee..eeeeee....eeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5bnd A 327 TYEEKLAYGLALDGSVTLNGSKDLKVPKYSLITITGENNKRYRVEMNQRRYSVSKNQVFYFNPAGLYESHTFKKLSPYIKSNYSTYVEYFNSHLHQKHDKVTETLRPDKDKKYVVPITQQPIKMIFGDNDKLSGFVIPMTNKTELKKTFNITKDVWITKSGSGYFIADMKEEKWIYIEL 505
                                   336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496


Chain B from PDB  Type:PROTEIN  Length:179

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....eee.....eee....eeeeeeee..eeeeee..eeeeee.hhheee......ee.....hhhhhhhhhhhhhhhhhh....hhhhhh...........eee......eeee.hhh.eeeeeee..hhhhhhh.......eeeeee..eeeeee....eeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5bnd B 327 TYEEKLAYGLALDGSVTLNGSKDLKVPKYSLITITGENNKRYRVEMNQRRYSVSKNQVFYFNPAGLYESHTFKKLSPYIKSNYSTYVEYFNSHLHQKHDKVTETLRPDKDKKYVVPITQQPIKMIFGDNDKLSGFVIPMTNKTELKKTFNITKDVWITKSGSGYFIADMKEEKWIYIEL 505
                                   336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496


Chain C from PDB  Type:PROTEIN  Length:179

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....eee.....eee....eeeeeee...eeeeee..eeeeee.hhheee......ee.....hhhhhhhhhhhhhhhhhh....hhhhhh...........eee......eeee.hhh.eeeeeee..hhhhhh........eeeeee..eeeeee....eeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5bnd C 327 TYEEKLAYGLALDGSVTLNGSKDLKVPKYSLITITGENNKRYRVEMNQRRYSVSKNQVFYFNPAGLYESHTFKKLSPYIKSNYSTYVEYFNSHLHQKHDKVTETLRPDKDKKYVVPITQQPIKMIFGDNDKLSGFVIPMTNKTELKKTFNITKDVWITKSGSGYFIADMKEEKWIYIEL 505
                                   336       346       356       366       376       386       396       406       416       426       436       446       456       466       476       486       496
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5BND)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5BND)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5BND)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
