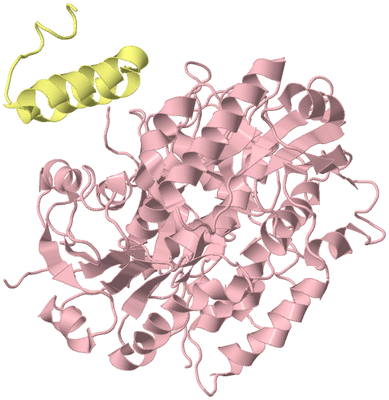

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYO-EM STRUCTURE OF THE SLO2.2 NA-ACTIVATED K CHANNEL

Authors :  R. K. Hite, P. Yuan, Z. Li, Y. Hsuing, T. Walz, R. Mackinnon
Date :  25 Jun 15  (Deposition) - 14 Oct 15  (Release) - 13 Apr 16  (Revision)
Method :  ELECTRON MICROSCOPY
Resolution :  4.20
Chains :  Asym./Biol. Unit :  C,D
Keywords :  Transport, Ion Channel, Potassium Channel (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. K. Hite, P. Yuan, Z. Li, Y. Hsuing, T. Walz, R. Mackinnon
Cryo-Electron Microscopy Structure Of The Slo2. 2 Na1-Activated K1 Channel
Nature V. 527 198 2015
PubMed-ID: 26436452  |  Reference-DOI: 10.1038/NATURE14958

(-) Compounds

Molecule 1 - GATING RING OF POTASSIUM CHANNEL SUBFAMILY T MEMBER 1
    Chains: C
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Common: FALL ARMYWORM
    Expression System Plasmid: PFASTBAC
    Expression System Taxid: 7108
    Organism Common: CHICKEN
    Organism Scientific: GALLUS GALLUS
    Organism Taxid: 9031
    Synonym: SEQUENCE LIKE A CALCIUM-ACTIVATED POTASSIUM CHANNEL SUBUNIT, SLO2.2

Molecule 2 - RCK2 ELABORATION OF POTASSIUM CHANNEL SUBFAMILY T MEMBER 1
    Chains: D
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Common: FALL ARMYWORM
    Expression System Plasmid: PFASTBAC
    Expression System Taxid: 7108
    Organism Common: CHICKEN
    Organism Scientific: GALLUS GALLUS
    Organism Taxid: 9031
    Synonym: SEQUENCE LIKE A CALCIUM-ACTIVATED POTASSIUM CHANNEL SUBUNIT, SLO2.2

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 43)

Asymmetric/Biological Unit (1, 43)
No.NameCountTypeFull Name
1UNK43Mod. Amino Acid

(-) Sites  (0, 0)

(no "Site" information available for 5A6F)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5A6F)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Unk D:1098 -Unk D:1099

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5A6F)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5A6F)

(-) Exons   (0, 0)

(no "Exon" information available for 5A6F)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain C from PDB  Type:PROTEIN  Length:540

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeeee....hhhhhhhhhhhhh........eeeeee......hhhhhh........eeeee....hhhhhhhh......eeee.......hhhhhhhhhhhhhhhhhhhh.....eeee.hhhhhhhh....eeeehhhhhhhhhhhh....hhhhhhhhhh.............hhhhhhhhh...eeeee..............hhhhhhhhhh.....ee..........................eeeee..............eeeee...hhhhhhhhh..............eeeee....hhhhhhhhh....eeeee....hhhhhhh.......eeeee......hhhhhhhhhhhhhhhhhhh...eeeeee...hhhhhh.....hhhhhhhhhhhhhhhh.........hhhhhh..eeehhhhhhhhhhhh...hhhhhhhhhhh........eeeeee...hhhhh..hhhhhhhhh....eee.ee............ee............eeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                5a6f C  351 KHVVLCVSSLKIDLLMDFLNEFYAHPRLQDYYVVILCPTEMDIQVRRVLQIPLWSQRVIYLQGSALKDQDLMRAKMDNGEACFILSSRNEVDRTAADHQTILRAWAVKDFAPNCPLYVQILKPENKFHVKFADHVVCEEECKYAMLALNCVCPATSTLITLLVHTSRGQEGQESPEQWQRMYGRCSGNEVYHIRMGDSKFFMEYEGKSFTYAAFHAHKKYGVCLIGIRREENKSILLNPGPRHIMAASDTCFYINITKEENSYGFKNKLIIVSAETAGNGLYNFIVPLRAYYRSRKELNPIVLLLDNKPEHHFLEAICCFPMVYYMEGTIDNLDSLLQCGIIYADNLVVVDKESEEDYMADAKTIVNVQTMFRLFPSLSIITELTHPSNMRFMQFRAKDSYSLALSKLEKKERENGSNLAFMFRLPFAAGRVFSISMLDTLLYQSFVKDYMITITRLLLGLDTTPGSGYLCAMKITEDDLWIRTYGRLFQKLCSSSAEIPIGIYRTESHNTLSYVLINPPPDTRLELNDIVYLIRSDPLA 1171
                                   360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610 ||    776       786       796       806       816       826       836       846       856   ||  870       880       890       900       910       920       930       940       950       960       970       980       990      1000      1010      1141      1151      1161      1171
                                                                                                                                                                                                                                                                                               612|                                                                                        860|                                                                                                                                                      1019|
                                                                                                                                                                                                                                                                                                769                                                                                         865                                                                                                                                                       1141


Chain D from PDB  Type:PROTEIN  Length:43

               SCOP domains ------------------------------------------- SCOP domains
               CATH domains ------------------------------------------- CATH domains
               Pfam domains ------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------- PROSITE
                 Transcript ------------------------------------------- Transcript
                5a6f D 1071 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx 1113
                            ||||||1080||||||1090||||||1100||||||1110|||
                         1071-UNK|1080-UNK|1089-UNK|1098-UNK|1107-UNK||
                          1072-UNK|1081-UNK|1090-UNK|1099-UNK|1108-UNK|
                           1073-UNK|1082-UNK|1091-UNK|1100-UNK|1109-UNK
                            1074-UNK|1083-UNK|1092-UNK|1101-UNK|1110-UNK
                             1075-UNK 1084-UNK 1093-UNK 1102-UNK 1111-UNK
                              1076-UNK 1085-UNK 1094-UNK 1103-UNK 1112-UNK
                               1077-UNK 1086-UNK 1095-UNK 1104-UNK 1113-UNK
                                1078-UNK 1087-UNK 1096-UNK 1105-UNK
                                 1079-UNK 1088-UNK 1097-UNK 1106-UNK
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5A6F)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5A6F)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5A6F)

(-) Gene Ontology  (11, 11)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    UNK  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 5a6f)

  Cis Peptide Bonds
    Unk D:1098 - Unk D:1099   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5a6f
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  KCNT1_CHICK | Q8QFV0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  KCNT1_CHICK | Q8QFV0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        KCNT1_CHICK | Q8QFV0: 5a6e 5a6g 5u70 5u76

(-) Related Entries Specified in the PDB File

5a6e CRYO-EM STRUCTURE OF THE SLO2.2 NA-ACTIVATED K CHANNEL
5a6g CRYO-EM STRUCTURE OF THE SLO2.2 NA-ACTIVATED K CHANNEL RELATED ID: EMD-3063 RELATED DB: EMDB
