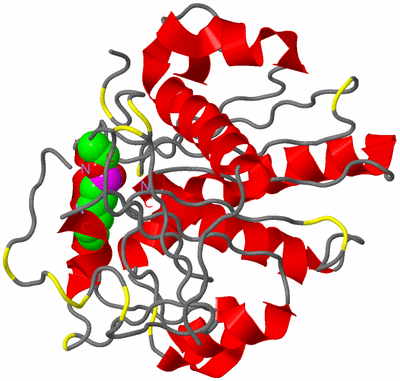

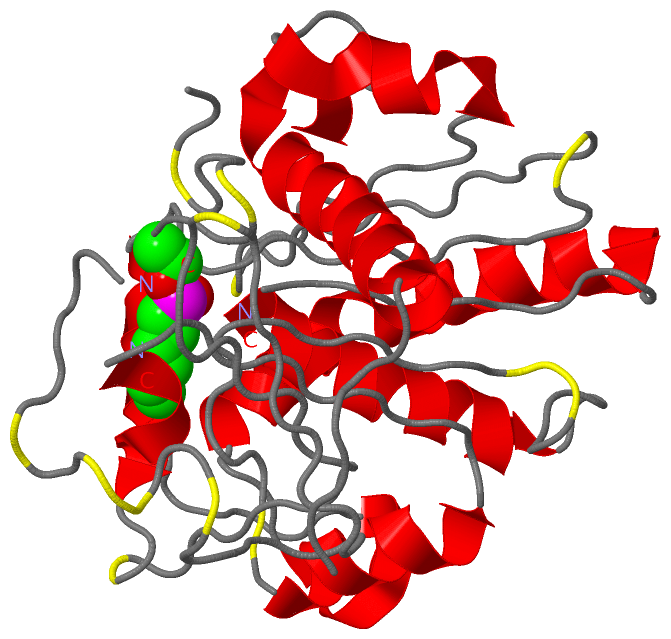

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

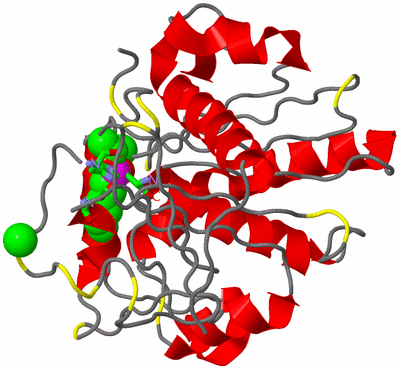

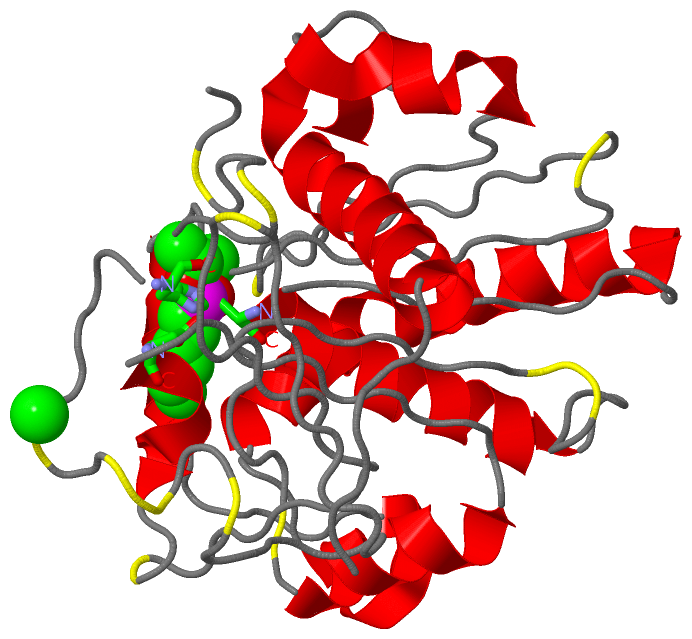

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

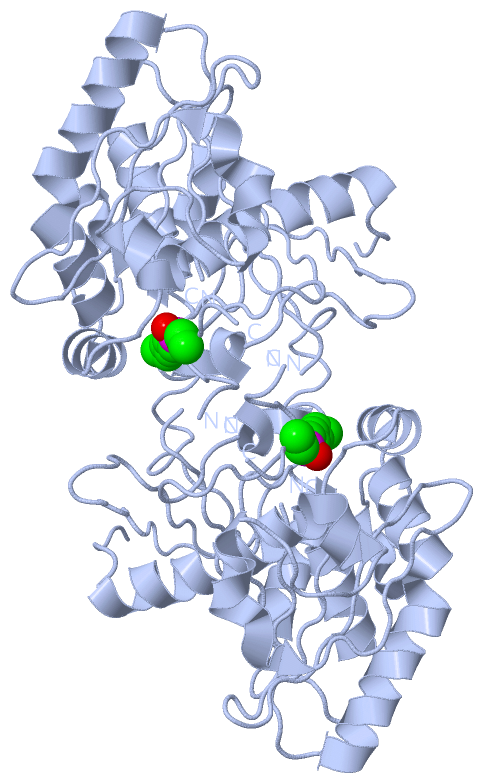

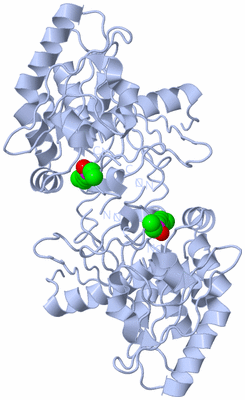

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

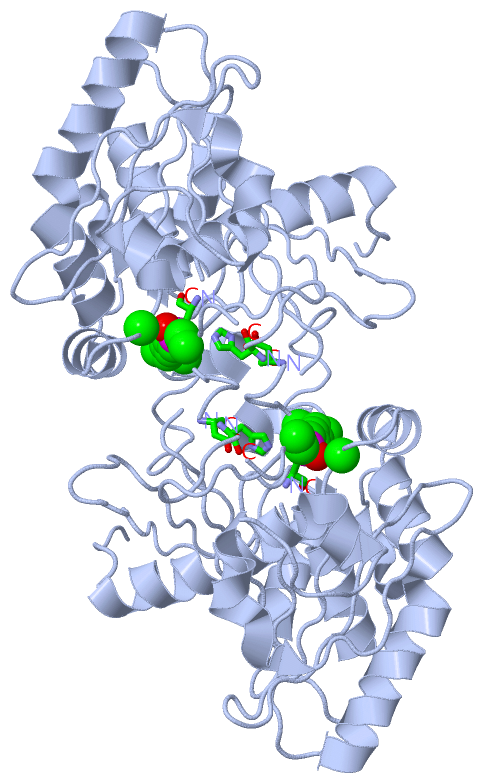

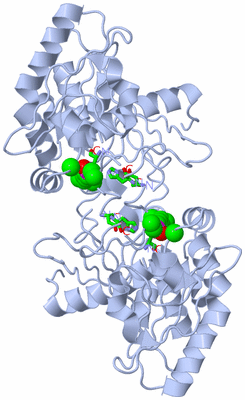

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  A MODEL FOR INTERFACIAL ACTIVATION IN LIPASES FROM THE STRUCTURE OF A FUNGAL LIPASE-INHIBITOR COMPLEX

Authors :  A. M. Brzozowski, U. Derewenda, Z. S. Derewenda, G. G. Dodson, D. Lawson, J. P. Turkenburg, F. Bjorkling, B. Huge-Jensen, S. R. Patkar, L. Thim
Date :  30 Oct 91  (Deposition) - 31 Jan 94  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Hydrolase(Carboxylic Esterase) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. M. Brzozowski, U. Derewenda, Z. S. Derewenda, G. G. Dodson, D. M. Lawson, J. P. Turkenburg, F. Bjorkling, B. Huge-Jensen, S. A. Patkar, L. Thim
A Model For Interfacial Activation In Lipases From The Structure Of A Fungal Lipase-Inhibitor Complex.
Nature V. 351 491 1991
PubMed-ID: 2046751  |  Reference-DOI: 10.1038/351491A0
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - LIPASE
    Chains: A
    EC Number: 3.1.1.3
    Engineered: YES
    Organism Common: MUCOR MIEHEI
    Organism Scientific: RHIZOMUCOR MIEHEI
    Organism Taxid: 4839

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1HEE1Ligand/IonN-HEXYLPHOSPHONATE ETHYL ESTER
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1HEE2Ligand/IonN-HEXYLPHOSPHONATE ETHYL ESTER

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:82 , SER A:144 , PHE A:251 , HIS A:257BINDING SITE FOR RESIDUE HEE A 270
2CATAUTHORSER A:144 , ASP A:203 , HIS A:257CATALYTIC SITE

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5TGL)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5TGL)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5TGL)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5TGL)

(-) Exons   (0, 0)

(no "Exon" information available for 5TGL)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:265

               SCOP domains d5tgla_ A: Triacylglycerol lipase                                                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......................................................................................................................................................................................................................................................................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5tgl A   5 GIRAATSQEINELTYYTTLSANSYCRTVIPGATWDCIHCDATEDLKIIKTWSTLIYDTNAMVARGDSEKTIYIVFRGSSSIRNWIADLTFVPVSYPPVSGTKVHKGFLDSYGEVQNELVATVLDQFKQYPSYKVAVTGHSLGGATALLCALDLYQREEGLSSSNLFLYTQGQPRVGNPAFANYVVSTGIPYRRTVNERDIVPHLPPAAFGFLHAGSEYWITDNSPETVQVCTSDLETSDCSNSIVPFTSVLDHLSYFGINTGLCT 269
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5TGL)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5TGL)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    HEE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    CAT  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5tgl)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]
