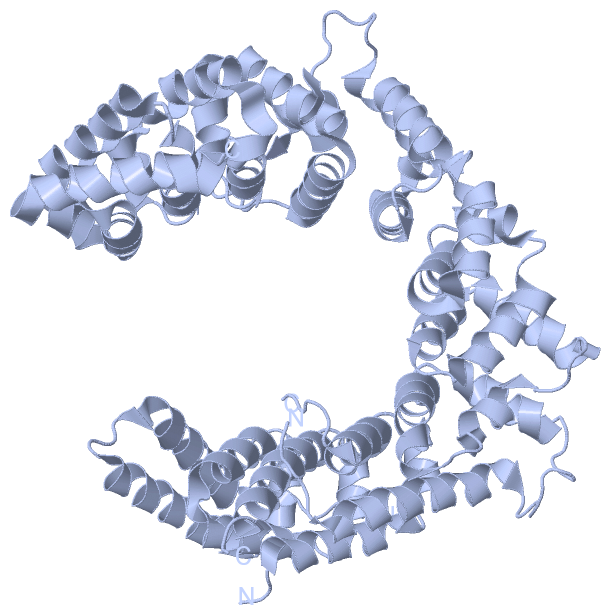

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  NOP9, A NEW PUF-LIKE PROTEIN, PREVENTS PREMATURE PRE-RRNA CLEAVAGE TO CORRECTLY PROCESS MATURE 18S RRNA

Authors :  J. Zhang, C. Qiu, T. Hall
Date :  05 Aug 16  (Deposition) - 26 Oct 16  (Release) - 26 Oct 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Nop9, Puf-Like Proteins, Its1 Ribosome Biogenesis, Rna-Binding Protein, Rna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Zhang, K. L. Mccann, C. Qiu, L. E. Gonzalez, S. J. Baserga, T. M. Hall
Nop9 Is A Puf-Like Protein That Prevents Premature Cleavage To Correctly Process Pre-18S Rrna.
Nat Commun V. 7 13085 2016
PubMed-ID: 27725644  |  Reference-DOI: 10.1038/NCOMMS13085

(-) Compounds

Molecule 1 - NUCLEOLAR PROTEIN 9
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PSMT3
    Expression System Strain: BL21 DE3
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 46-645
    Gene: NOP9, YJL010C, J1357
    Mutation: YES
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE (STRAIN ATCC 204508 / S288C)
    Organism Taxid: 559292
    Strain: ATCC 204508 / S288C
    Synonym: PUMILIO DOMAIN-CONTAINING PROTEIN NOP9

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5SVD)

(-) Sites  (0, 0)

(no "Site" information available for 5SVD)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5SVD)

(-) Cis Peptide Bonds  (5, 5)

Asymmetric Unit
No.Residues
1Ser A:279 -Arg A:280
2Arg A:280 -Ser A:281
3Ser A:281 -Asp A:282
4Gln A:285 -Ser A:286
5Arg B:159 -Glu B:160

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5SVD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5SVD)

(-) Exons   (0, 0)

(no "Exon" information available for 5SVD)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:543

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh...hhhhhhh..hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhh..hhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhh...........hhhhhhhhhhh...hhhhhhhhhhhhhhh...hhhhhhhh......hhhhhhhhhhhh.hhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh.......hhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5svd A  50 QMFFGVLDREELEYFKQAESTLQLDAFEAPEEKFQFVTSIIEEAKGKELKLVTSQITSKLMERVILECDETQLKDIFQSFNGVFFGLSCHKYASHVLETLFVRSAALVERELLTYVTMENMFLFMLNELKPHLKTMMNHQYASHVLRLLILILSSKTLPVYQTPESFKSELRDIITTLYKGFTNGAESRSDISQSTITKFREYSVDKVASPVIQLIIQVEGIFDRDRSFWRLVFNTADEKDPKEESFLEYLLSDPVGSHFLENVIGSARLKYVERLYRLYMKDRIVKLAKRDTTGAFVVRALLEHLKEKDVKQILDAVVPELSMLLNSNMDFGTAIINTSNKQGGYLRDDVIAQLIQKYYPEKSDAKNILESCLLLSASTLGNTRDDWPTAEERRRSVFLEQLIDYDDKFLNITIDSMLALPEERLIQMCYHGVFSHVVEHVLQTTRVDIIKRKMLLNILSKESVNLACNVYGSHIMDKLWEFTAKLTLYKERIARALVLETEKVKNSIYGRQVWKNWKLELYVRKMWDWKKLIKEQEFEIFP 634
                                    59        69        79        89        99       109       119       129       139       149       159   ||  180       190       200       210       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541       551       561       571       581       591       601       611       621       631
                                                                                                                                           163|                                         219|
                                                                                                                                            175                                          251


Chain B from PDB  Type:PROTEIN  Length:534

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhh..hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh.hhhhhhhh.hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh...hhhhhhhh......hhhhhhhhhhhh.hhhhhhhhhhhhh..hhhhhhhhhhhhh..hhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh.......hhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh......hhhhhhhhhhhhh.hhhhhhh..hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5svd B  50 QMFFGVLDREELEYFKQAESTLQLDAFEAPEEKFQFVTSIIEEAKGKELKLVTSQITSKLMERVILECDETQLKDIFQSFNGVFFGLSCHKYASHVLETLFVRSAALVEREVTMENMFLFMLNELKPHLKTMMNHQYASHVLRLLILILSSKTLPESFKSELRDIITTLYKGFTNGAESRSDISQSTITKFREYSVDKVASPVIQLIIQVEGIFDRDRSFWRLVFNTADEKDPKEESFLEYLLSDPVGSHFLENVIGSARLKYVERLYRLYMKDRIVKLAKRDTTGAFVVRALLEHLKEKDVKQILDAVVPELSMLLNSNMDFGTAIINTSNKQGGYLRDDVIAQLIQKYYPEKSDAKNILESCLLLSASTLGNTRDDWPTAEERRRSVFLEQLIDYDDKFLNITIDSMLALPEERLIQMCYHGVFSHVVEHVLQTTRVDIIKRKMLLNILSKESVNLACNVYGSHIMDKLWEFTAKLTLYKERIARALVLETEKVKNSIYGRQVWKNWKLELYVRKMWDWKKLIKEQEFEIFP 634
                                    59        69        79        89        99       109       119       129       139       149       159||     184       194       204       214   ||  260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630
                                                                                                                                        160|                                       218|
                                                                                                                                         176                                        255
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5SVD)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5SVD)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5SVD)

(-) Gene Ontology  (11, 11)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5svd)

  Sites
(no "Sites" information available for 5svd)

  Cis Peptide Bonds
    Arg A:280 - Ser A:281   [ RasMol ]
    Arg B:159 - Glu B:160   [ RasMol ]
    Gln A:285 - Ser A:286   [ RasMol ]
    Ser A:279 - Arg A:280   [ RasMol ]
    Ser A:281 - Asp A:282   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5svd
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  NOP9_YEAST | P47077
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  NOP9_YEAST | P47077
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        NOP9_YEAST | P47077: 5wtx 5wty

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5SVD)
