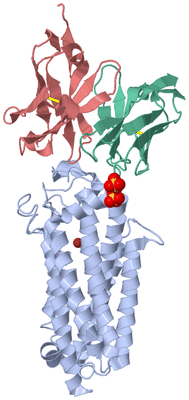

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  REVISED CRYSTAL STRUCTURE OF THE HUMAN ADIPONECTIN RECEPTOR 1 IN AN OPEN CONFORMATION

Authors :  C. Leyrat, I. Vasiliauskaite-Brooks, S. Granier
Date :  21 Sep 16  (Deposition) - 22 Mar 17  (Release) - 12 Apr 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.73
Chains :  Asym./Biol. Unit :  A,H,L
Keywords :  Progestin And Adipoq Receptor Family, Integral Membrane Protein, 7Tm, Ceramidase, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  I. Vasiliauskaite-Brooks, R. Sounier, P. Rochaix, G. Bellot, M. Fortier, F. Hoh, L. De Colibus, C. Bechara, E. M. Saied, C. Arenz, C. Leyrat, S. Granier
Structural Insights Into Adiponectin Receptors Suggest Ceramidase Activity.
Nature V. 6 120 2017
PubMed-ID: 28329765  |  Reference-DOI: 10.1038/NATURE21714

(-) Compounds

Molecule 1 - ADIPONECTIN RECEPTOR PROTEIN 1
    Chains: A
    Engineered: YES
    Expression System: TRICHOPLUSIA NI
    Expression System Common: CABBAGE LOOPER
    Expression System Taxid: 7111
    Gene: ADIPOR1, PAQR1, TESBP1A, CGI-45
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: PROGESTIN AND ADIPOQ RECEPTOR FAMILY MEMBER I

Molecule 2 - V REGION HEAVY CHAIN
    Chains: H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: E.COLI CELL-FREE PROTEIN SYNTHESIS

Molecule 3 - V REGION LIGHT CHAIN
    Chains: L
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: E.COLI CELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : AHL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 3)

Asymmetric/Biological Unit (2, 3)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION
2ZN1Ligand/IonZINC ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER A:187 , HIS A:191 , ASP A:208 , HIS A:337 , HIS A:341binding site for residue ZN A 401
2AC2SOFTWARESER A:120 , PHE A:121 , ARG A:122 , HIS L:30binding site for residue SO4 A 402
3AC3SOFTWAREARG A:122 , ASN L:28 , HIS L:30binding site for residue SO4 L 201

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1H:22 -H:96
2L:23 -L:88

(-) Cis Peptide Bonds  (5, 5)

Asymmetric/Biological Unit
No.Residues
1Ala A:165 -Pro A:166
2Thr A:260 -Pro A:261
3Ile A:321 -Pro A:322
4Ser L:7 -Pro L:8
5Thr L:94 -Pro L:95

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5LXG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5LXG)

(-) Exons   (0, 0)

(no "Exon" information available for 5LXG)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:282

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhhhhhhhhh..............hhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5lxg A  -1 GSEGRWRVIPYDVLPDWLKDNDYLLHGHRPPMPSFRACFKSIFRIHTETGNIWTHLLGFVLFLFLGILTMLRPNMYFMAPLQEKVVFGMFFLGAVLCLSFSWLFHTVYCHSEKVSRTFSKLDYSGIALLIMGSFVPWLYYSFYCSPQPRLIYLSIVCVLGISAIIVAQWDRFATPKHRQTRAGVFLGLGLSGVVPTMHFTIAEGFVKATTVGQMGWFFLMAVMYITGAGLYAARIPERFFPGKFDIWFQSHQIFHVLVVAAAFVHFYGVSNLQEFRYGLEGG 368
                             ||     96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366
                             0|
                             89


Chain H from PDB  Type:PROTEIN  Length:119

               SCOP domains ----------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eee.....eeeeeeee..hhhhh.eeeeee.....eeeeeeee....eeee.hhhh..eeeeee....eeeeee...hhhhheeeeeeee.....eeee...eeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------- Transcript
                 5lxg H   1 EVLLQQSGPELVKPGASVRITCKASGYTFTDFNMDWVKQSPGKSLEWIGDFNPNSGGSIYNQKFKDKATFTVDKSSSTAYMELRSLTFEDTAVYYCARETGTAWFAYWGQGTLVTVSAA 119
                                    10        20        30        40        50        60        70        80        90       100       110


Chain L from PDB  Type:PROTEIN  Length:107

               SCOP domains ----------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeeee....eeeeeee.......eeeeee......eeeee...ee.......eeeeee..eeeeee...hhhhheeeeeee......ee...eeeeee Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 5lxg L   1 DIQMTQSPASLSASVGETVTITCRASGNIHNFLAWYQQKQGKSPQVLVYNAKTLADGVPSRFSGSGSGTQYSLKINSLQPEDFGSYYCQQFWSTPYTFGGGTKLEIN 107
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5LXG)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5LXG)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5LXG)

(-) Gene Ontology  (24, 24)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:165 - Pro A:166   [ RasMol ]
    Ile A:321 - Pro A:322   [ RasMol ]
    Ser L:7 - Pro L:8   [ RasMol ]
    Thr A:260 - Pro A:261   [ RasMol ]
    Thr L:94 - Pro L:95   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5lxg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ADR1_HUMAN | Q96A54
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ADR1_HUMAN | Q96A54
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ADR1_HUMAN | Q96A54: 3wxv

(-) Related Entries Specified in the PDB File

3wxv 3WXV CONTAINS THE SAME PROTEIN WITH A LARGE ERROR IN THE POSITION OF TRANSMEMBRANE HELIX 5 (TM5) AND THE LOOP CONNECTING TM4 AND TM5. THE ERROR APPEARS TO ARISE FROM INCORRECT MODEL BUILDING AND REFINEMENT.
