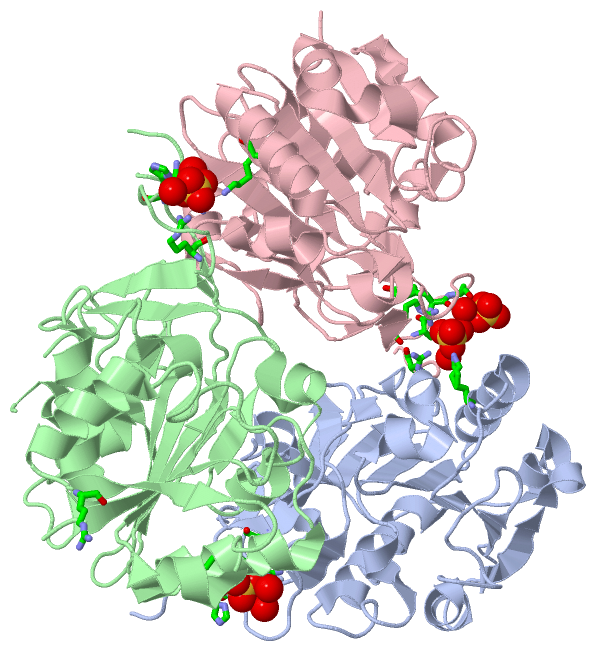

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRIFT52 N-TERMINAL DOMAIN

Authors :  A. Mourao, M. Vetter, E. Lorentzen
Date :  09 Nov 15  (Deposition) - 09 Mar 16  (Release) - 13 Apr 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Keywords :  Transport Protein, Intraflagellar Transport , Iftb, Ift52, Chlamydomonas, Protein-Protein Interaction (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Taschner, K. Weber, A. Mourao, M. Vetter, M. Awasthi, M. Stiegler, S. Bhogaraju, E. Lorentzen
Intraflagellar Transport Proteins 172, 80, 57, 54, 38, And 20 Form A Stable Tubulin-Binding Ift-B2 Complex.
Embo J. V. 35 773 2016
PubMed-ID: 26912722  |  Reference-DOI: 10.15252/EMBJ.201593164

(-) Compounds

Molecule 1 - INTRAFLAGELLAR TRANSPORT PROTEIN COMPONENT IFT52
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PEC-A-HT-HIS
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: GIFT, RESIDUES 1-272
    Organism Scientific: CHLAMYDOMONAS REINHARDTII
    Organism Taxid: 3055

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric Unit (1, 4)
No.NameCountTypeFull Name
1SO44Ligand/IonSULFATE ION
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1SO41Ligand/IonSULFATE ION
Biological Unit 3 (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:124 , HIS A:127 , ARG A:164 , HOH A:2111 , HOH A:2118 , HOH A:2119 , HOH A:2195 , LYS B:81BINDING SITE FOR RESIDUE SO4 A 903
2AC2SOFTWAREARG B:43 , ARG B:124 , HIS B:127 , ARG B:164 , HOH B:2124 , HOH B:2127 , LYS C:81BINDING SITE FOR RESIDUE SO4 B 903
3AC3SOFTWARELYS A:81 , ARG C:124 , HIS C:127 , TYR C:128 , ARG C:164 , SO4 C:904 , HOH C:2077 , HOH C:2080BINDING SITE FOR RESIDUE SO4 C 903
4AC4SOFTWAREHIS C:127 , LYS C:129 , SO4 C:903 , HOH C:2080BINDING SITE FOR RESIDUE SO4 C 904

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5FMR)

(-) Cis Peptide Bonds  (6, 6)

Asymmetric Unit
No.Residues
1Lys A:191 -Pro A:192
2Tyr A:204 -Pro A:205
3Lys B:191 -Pro B:192
4Tyr B:204 -Pro B:205
5Lys C:191 -Pro C:192
6Tyr C:204 -Pro C:205

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5FMR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5FMR)

(-) Exons   (0, 0)

(no "Exon" information available for 5FMR)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:242

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee............hhhhhhhhh...eeeeehhhhhhhhhhhh..eeeee......hhhhhhhhhhhhhh..eeeee...hhhhhhh..hhhhhh...eee.....ee..........eeee.....hhhhh.............eeee....eee....eeeee....ee....eeeeeee.....eeeee..hhhhh.......hhhhhhhhhhhhhh.......hhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fmr A  12 EVRILFSTAKGESHTHKAGFKQLFRRLRSTYRPDKVDKDDFTLDTLRSAHILVLGGPKEKFTAPEVDMLKKFVKNGGSILILMSEGGEEKAGTNINYFLEQFGMSVNNDAVVRTTHYKYLHPKEVLISDGILNRAVITDEFRVFDGTGLEYVFPFGATLSVQKPAVPVLSSGKIAYPMNRPVGAVWAQPGYGRIAVLGSCAMFDDKWLDKEENSKIMDFFFKFLEPHSKIQLNDIDAEEPDV 270
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       162  ||   178       188       198       208       218       228       238       248       258       268
                                                                                                                                                                   149| 165|
                                                                                                                                                                    161  172


Chain B from PDB  Type:PROTEIN  Length:242

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee............hhhhhhhhhh..eeeee.....hhhhhhh..eeeee......hhhhhhhhhhhhhh..eeeee...hhhhhhh..hhhhhh...eee.....ee..........eeee.....hhhhh.............eeee....eee....eeeee....ee....eeeeeee.....eeeee..hhhhh.......hhhhhhhhhhhhhh.......hhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fmr B  12 EVRILFSTAKGESHTHKAGFKQLFRRLRSTYRPDKVDKDDFTLDTLRSAHILVLGGPKEKFTAPEVDMLKKFVKNGGSILILMSEGGEEKAGTNINYFLEQFGMSVNNDAVVRTTHYKYLHPKEVLISDGILNRAVITDEFRVFDGTGLEYVFPFGATLSVQKPAVPVLSSGKIAYPMNRPVGAVWAQPGYGRIAVLGSCAMFDDKWLDKEENSKIMDFFFKFLEPHSKIQLNDIDAEEPDV 270
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       162  ||   178       188       198       208       218       228       238       248       258       268
                                                                                                                                                                   149| 165|
                                                                                                                                                                    161  172


Chain C from PDB  Type:PROTEIN  Length:244

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee............hhhhhhhhhh..eeeeehhhhhhhhhhhh..eeeee......hhhhhhhhhhhhhh..eeeee...hhhhhhh..hhhhhhh..eee.....ee..........eeee.....hhhhh.............eeee....eee....eeeee....ee....eeeeeee.....eeeee..hhhhh.......hhhhhhhhhhhhhh.......hhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fmr C  12 EVRILFSTAKGESHTHKAGFKQLFRRLRSTYRPDKVDKDDFTLDTLRSAHILVLGGPKEKFTAPEVDMLKKFVKNGGSILILMSEGGEEKAGTNINYFLEQFGMSVNNDAVVRTTHYKYLHPKEVLISDGILNRAVITDEFRVFDGTGLEYVFPFGATLSVQKPAVPVLSSGKIAYPMNRPVGAVWAQPGYGRIAVLGSCAMFDDKWLDKEENSKIMDFFFKFLEPHSKIQLNDIDAEEPDVSD 272
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       162  ||   178       188       198       208       218       228       238       248       258       268
                                                                                                                                                                   149| 165|
                                                                                                                                                                    161  172
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5FMR)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5FMR)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5FMR)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Lys A:191 - Pro A:192   [ RasMol ]
    Lys B:191 - Pro B:192   [ RasMol ]
    Lys C:191 - Pro C:192   [ RasMol ]
    Tyr A:204 - Pro A:205   [ RasMol ]
    Tyr B:204 - Pro B:205   [ RasMol ]
    Tyr C:204 - Pro C:205   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5fmr
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q944U2_CHLRE | Q944U2
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q944U2_CHLRE | Q944U2
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 5FMR)

(-) Related Entries Specified in the PDB File

5fms MMIFT52 N-TERMINAL DOMAIN
