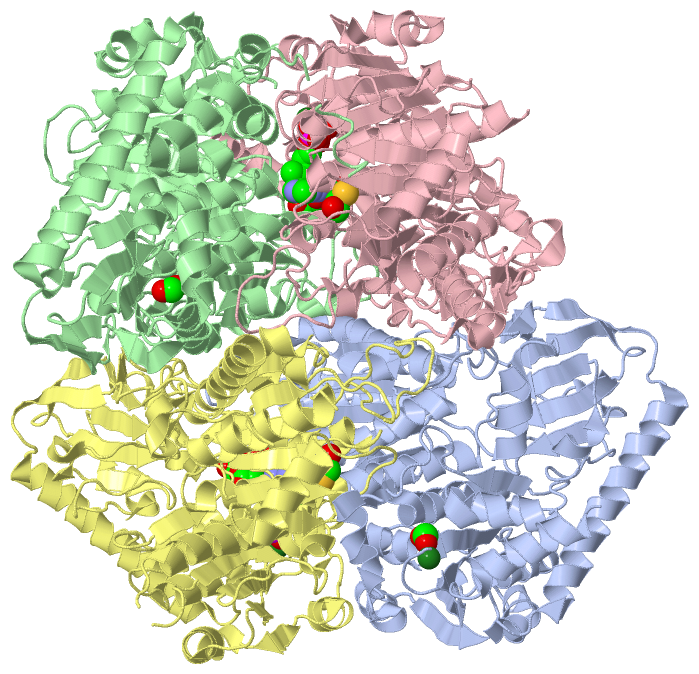

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF M. TUBERCULOSIS MEND BOUND TO MG2+ AND COVALENT INTERMEDIATE II (A THDP + DE-CARBOXYLATED 2-OXOGLUTARATE + ISOCHORISMATE ADDUCT)

Authors :  J. M. Johnston, E. N. M. Jirgis, G. Bashiri, E. M. M. Bulloch, E. N. Baker
Date :  17 Nov 15  (Deposition) - 22 Jun 16  (Release) - 20 Jul 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Menaquinone Biosynthesis, Mend, 2-Succinyl-5-Enolpyruvyl-6-Hydroxy-3- Cyclohexadiene-1-Carboxylate Synthase, Thiamin-Diphosphate Dependent Enzyme, Pyruvate Oxidase Family, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. N. Jirgis, G. Bashiri, E. M. Bulloch, J. M. Johnston, E. N. Baker
Structural Views Along The Mycobacterium Tuberculosis Mend Reaction Pathway Illuminate Key Aspects Of Thiamin Diphosphate-Dependent Enzyme Mechanisms.
Structure V. 24 1167 2016
PubMed-ID: 27291649  |  Reference-DOI: 10.1016/J.STR.2016.04.018

(-) Compounds

Molecule 1 - 2-SUCCINYL-5-ENOLPYRUVYL-6-HYDROXY-3-CYCLOHEXENE-1- CARBOXYLATE SYNTHASE
    Chains: A, B, C, D
    EC Number: 2.2.1.9
    Engineered: YES
    Expression System: MYCOBACTERIUM SMEGMATIS
    Expression System Taxid: 1772
    Gene: MEND, RV0555
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS (STRAIN ATCC 25618 / H37RV)
    Organism Taxid: 83332
    Other Details: THIS PROTEIN CONTAINS AN N-TERMINAL HIS-TAG THAT IS NOT OBSERVED IN THE CRYSTAL STRUCTURE. THE PROTEIN SEQUENCE IN THE PDB FILE IS NUMBERED TO MATCH THAT OF THE BIOLOGICAL SEQUENCE (AND DOES NOT NUMBER THE UNSEEN TAG SEQUENCE IN THE NUMBERING). IN 2/4 CHAINS THE CYS AT POSITION 26 HAS BEEN MODIFIED BY B-MERCAPTOETHANOL IN THE BUFFER COMPONENT
    Strain: ATCC 25618 / H37RV
    Synonym: SEPHCHC SYNTHASE,MENAQUINONE BIOSYNTHESIS PROTEIN MEND

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 9)

Asymmetric/Biological Unit (4, 9)
No.NameCountTypeFull Name
1BME2Ligand/IonBETA-MERCAPTOETHANOL
2FMT2Ligand/IonFORMIC ACID
3MG3Ligand/IonMAGNESIUM ION
4TOI2Ligand/Ion(1~{R},2~{S},5~{S},6~{S})-2-[(1~{S})-1-[3-[(4-AZANYLIDENE-2-METHYL-1~{H}-PYRIMIDIN-5-YL)METHYL]-4-METHYL-5-[2-[OXIDANYL(PHOSPHONOOXY)PHOSPHORYL]OXYETHYL]-1,3-THIAZOL-3-IUM-2-YL]-1,4-BIS(OXIDANYL)-4-OXIDANYLIDENE-BUTYL]-6-OXIDANYL-5-(3-OXIDANYL-3-OXIDANYLIDENE-PROP-1-EN-2-YL)OXY-CYCLOHEX-3-ENE-1-CARBOXYLIC ACID

(-) Sites  (9, 9)

Asymmetric Unit (9, 9)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:440 , ASP A:469 , GLY A:472 , FMT A:602 , HOH A:727binding site for residue MG A 601
2AC2SOFTWAREGLY A:439 , LEU A:441 , THR A:442 , MG A:601 , HOH A:727binding site for residue FMT A 602
3AC3SOFTWAREARG B:97 , GLY B:276 , THR B:299 , HOH B:713 , HOH B:757binding site for residue FMT B 601
4AC4SOFTWAREPRO B:27 , GLY B:28 , SER B:29 , ARG B:30 , GLU B:55 , THR B:78 , ARG B:107 , ASN B:117 , GLN B:118 , ARG C:282 , ALA C:376 , SER C:377 , ASN C:378 , PRO C:379 , ARG C:381 , ARG C:399 , ALA C:402 , GLY C:403 , ILE C:404 , ASP C:405 , GLY C:439 , ASP C:440 , LEU C:441 , THR C:442 , ASP C:469 , GLY C:471 , GLY C:472 , GLY C:473 , ILE C:474 , LEU C:478 , MG C:602 , HOH C:724 , HOH C:735 , HOH C:744 , HOH C:751binding site for residue TOI C 601
5AC5SOFTWAREASP C:440 , ASP C:469 , GLY C:471 , TOI C:601 , HOH C:724binding site for residue MG C 602
6AC6SOFTWARELEU C:25 , CYS C:26 , GLU C:55 , ALA C:76 , MET C:77 , THR C:78 , ALA C:82binding site for residue BME C 603
7AC7SOFTWAREASP D:440 , ASP D:469 , GLY D:471 , TOI D:602 , HOH D:755binding site for residue MG D 601
8AC8SOFTWAREPRO A:27 , GLY A:28 , SER A:29 , ARG A:30 , GLU A:55 , THR A:78 , ARG A:107 , ASN A:117 , GLN A:118 , HOH A:800 , ARG D:282 , ALA D:376 , SER D:377 , ASN D:378 , PRO D:379 , ARG D:381 , ARG D:399 , ALA D:402 , GLY D:403 , ILE D:404 , ASP D:405 , GLY D:439 , ASP D:440 , LEU D:441 , THR D:442 , ASP D:469 , GLY D:471 , GLY D:472 , GLY D:473 , ILE D:474 , PHE D:475 , LEU D:478 , MG D:601 , HOH D:703 , HOH D:751 , HOH D:755 , HOH D:789 , HOH D:800 , HOH D:838binding site for residue TOI D 602
9AC9SOFTWARELEU D:25 , CYS D:26 , ALA D:58 , ALA D:76 , MET D:77 , ALA D:82 , LEU D:86binding site for residue BME D 603

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1C:26 -C:603
2D:26 -D:603

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Glu A:183 -Pro A:184
2Glu B:183 -Pro B:184
3Glu D:183 -Pro D:184

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5ESU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5ESU)

(-) Exons   (0, 0)

(no "Exon" information available for 5ESU)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:538

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh...eeee.....hhhhhhhhhhhhhh...eeee..hhhhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhhh..eeeeeee.hhhhh.............hhhhh.eeee......hhhhhhhhhhhhhhhhhhhhhhhhh........eeeeee................hhhhh........eee.eeeee....eeeee......hhhhh...eee...............hhhhh...eeeee.....hhhhhhhhhh....eeee............eeeee.eeeee...hhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh....eeee..hhhhhhhhhh.......eee.........hhhhhhhhhhhhhhhhhhhh........eeeeeehhhhhhhhhhhh.........eeeeeeee.....hhhhhhhh.....hhhhhhhhh..eeeeehhhhhhhhhh....eeeeeeee....hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5esu A   1 MNPSTTQARVVVDELIRGGVRDVVLCPGSRNAPLAFALQDADRSGRIRLHVRIDERTAGYLAIGLAIGAGAPVCVAMTSGTAVANLGPAVVEANYARVPLIVLSANRPYELLGTGANQTMEQLGYFGTQVRASISLGLAEDAPERTSALNATWRSATCRVLAAATGARTANAGPVHFDIPLREPLVPDPEPVTPPGRPAGKPWTYTPPVTFDQPLDIDLSVDTVVISGHGAGVHPNLAALPTVAEPTAPRSGDNPLHPLALPLLRPQQVIMLGRPTLHRPVSVLLADAEVPVFALTTGPRWPDVSGNSQATGTRAVTTGAPRPAWLDRCAAMNRHAIAAVREQLAAHPLTTGLHVAAAVSHALRPGDQLVLGASNPVRDVALAGLDTRGIRVRSNRGVAGIDGTVSTAIGAALAYEGAHERTGSPDSPPRTIALIGDLTFVHDSSGLLIGPTEPIPRSLTIVVSNDNGGSDVSSRIFGTPHDVDVGALCRAYHVESRQIEVDELGPTLDQPGAGMRVLEVKADRSSLRQLHAAIKAAL 554
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190||     203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       486       496       506       516       526       536       546
                                                                                                                                                                                                                        191|                                                                                                                                                                                                                                                                                  472|
                                                                                                                                                                                                                         195                                                                                                                                                                                                                                                                                   486


Chain B from PDB  Type:PROTEIN  Length:535

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh...eeee.....hhhhhhhhhhhhhh...eeee..hhhhhhhhhhhhhhh....eeeee..hhhhhhhhhhhhhhhhh...eeeeeee.hhhhh.............hhhhh.eeee......hhhhhhhhhhhhhhhhhhhhhhhhh........eeeeee...................hhhhh........eee.eeeee....eeeee......hhhhh...eee............hhhhhhhh...eeeee.....hhhhhhhhhh....eeee............eeeee.eeeee...hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhh.....eeee..hhhhhhhhhh.......eee.........hhhhhhhhhhhhhhhhhhh.........eeeeeehhhhhhhhhhhh.........eeeeeeee............hhhhhhhhh..eeeeehhhhhhhhhhh...eeeeeeee....hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5esu B   1 MNPSTTQARVVVDELIRGGVRDVVLCPGSRNAPLAFALQDADRSGRIRLHVRIDERTAGYLAIGLAIGAGAPVCVAMTSGTAVANLGPAVVEANYARVPLIVLSANRPYELLGTGANQTMEQLGYFGTQVRASISLGLAEDAPERTSALNATWRSATCRVLAAATGARTANAGPVHFDIPLREPLVPDPEPLGAVTPPGRPAGKPWTYTPPVTFDQPLDIDLSVDTVVISGHGAGVHPNLAALPTVAEPTAPRSGDNPLHPLALPLLRPQQVIMLGRPTLHRPVSVLLADAEVPVFALTTGPRWPDVSGNSQATGTRAVTTGAPRPAWLDRCAAMNRHAIAAVREQLAAHPLTTGLHVAAAVSHALRPGDQLVLGASNPVRDVALAGLDTRGIRVRSNRGVAGIDGTVSTAIGAALAYEGAHERTGSPDSPPRTIALIGDLTFVHDSSGLLIGPTEPIPRSLTIVVSNDNDVSSRIFHDVDVGALCRAYHVESRQIEVDELGPTLDQPGAGMRVLEVKADRSSLRQLHAAIKAAL 554
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470|     |499       509       519       529       539       549
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                               470|   493|
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                487    497


Chain C from PDB  Type:PROTEIN  Length:537

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhh...eeee..hhhhhhhhhhhhhhhhh..eeee....hhhhhhhhhhhhhhhhh..eeeee....................hhhhhh.eeee......hhhhhhhhhhhhhhhhhhhhhhhhh........eeee..........hhhhh........eee.eeeee....eeeee......hhhhh...eee............hhhhh......eeeee.....hhhhhhhhh.....eeee..............eee.eeeee...hhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh....eeee..hhhhhhhhhh.......eee.........hhhhhhhhhhhhhhhhhhh....eeeeeehhhhhhhhhhhh..........eeeeeee...hhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhh..eeee.hhhhhhhhhhh....eeeeeee....hhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5esu C   2 NPSTTQARVVVDELIRGGVRDVVLCPGSRNAPLAFALQDADRSGRIRLHVRIDERTAGYLAIGLAIGAGAPVCVAMTSGTAVANLGPAVVEANYARVPLIVLSANRPYELLGTGANQTMEQLGYFGTQVRASISLGLAEDAPERTSALNATWRSATCRVLAAATGARTANAGPVHFDIPLREVTPPGRPAGKPWTYTPPVTFDQPLDIDLSVDTVVISGHGAGVHPNLAALPTVAEPTAPRSGDNPLHPLALPLLRPQQVIMLGRPTLHRPVSVLLADAEVPVFALTTGPRWPDVSGNSQATGTRAVTTGAPRPAWLDRCAAMNRHAIAAVREQLAAHPLTTGLHVAAAVSHALRPGDQLVLGASNPVRDVALAGLDTRGIRVRSNRGVAGIDGTVSTAIGAALAYEGAHERTPPRTIALIGDLTFVHDSSGLLIGPTEPIPRSLTIVVSNDNGGGIFELLEQGDPRFSDVSSRIFGTPHDVDVGALCRAYHVESRQIEVDELGPTLDQPGAGMRVLEVKADRSSLRQLHAAIKAAL 554
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181 ||    202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422  ||   437       447       457       467       477       487       497       507       517       527       537       547
                                                                                                                                                                                                               183|                                                                                                                                                                                                                                   425|
                                                                                                                                                                                                                195                                                                                                                                                                                                                                    431


Chain D from PDB  Type:PROTEIN  Length:542

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhh...eeee..hhhhhhhhhhhhhhh....eeee....hhhhhhhhhhhhhhhhh..eeeee....................hhhhhh.eeee......hhhhhhhhhhhhhhhhhhhhhhhhh........eeee...........hhhhh........eee.eeeee....eeeee......hhhhh...eee............hhhhhhhh...eeeee.....hhhhhhhhhh....eeee..............eee.eeeee...hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh......eeee..hhhhhhhhhh.......eee.........hhhhhhhhhhhhhhhhhhh........eeeeeehhhhhhhhhhhh..........eeeeeee...hhhhhhhhhhhhhhh.hhhhhh......hhhhhhhhh..eeee.hhhhhhhhhhh....eeeeeee....hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5esu D   2 NPSTTQARVVVDELIRGGVRDVVLCPGSRNAPLAFALQDADRSGRIRLHVRIDERTAGYLAIGLAIGAGAPVCVAMTSGTAVANLGPAVVEANYARVPLIVLSANRPYELLGTGANQTMEQLGYFGTQVRASISLGLAEDAPERTSALNATWRSATCRVLAAATGARTANAGPVHFDIPLREPVTPPGRPAGKPWTYTPPVTFDQPLDIDLSVDTVVISGHGAGVHPNLAALPTVAEPTAPRSGDNPLHPLALPLLRPQQVIMLGRPTLHRPVSVLLADAEVPVFALTTGPRWPDVSGNSQATGTRAVTTGAPRPAWLDRCAAMNRHAIAAVREQLAAHPLTTGLHVAAAVSHALRPGDQLVLGASNPVRDVALAGLDTRGIRVRSNRGVAGIDGTVSTAIGAALAYEGAHERTGSDSPPRTIALIGDLTFVHDSSGLLIGPTEPIPRSLTIVVSNDNGGGIFELLEQGDPRFSDVSSRIFGTPHDVDVGALCRAYHVESRQIEVDELGPTLDQPGAGMRVLEVKADRSSLRQLHAAIKAAL 554
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181  ||   201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421     ||432       442       452       462       472       482       492       502       512       522       532       542       552
                                                                                                                                                                                                                184|                                                                                                                                                                                                                                     427|
                                                                                                                                                                                                                 195                                                                                                                                                                                                                                      429
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5ESU)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5ESU)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5ESU)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    BME  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    FMT  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TOI  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Glu A:183 - Pro A:184   [ RasMol ]
    Glu B:183 - Pro B:184   [ RasMol ]
    Glu D:183 - Pro D:184   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5esu
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MEND_MYCTU | P9WK11
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.2.1.9
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MEND_MYCTU | P9WK11
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MEND_MYCTU | P9WK11: 5erx 5ery 5esd 5eso 5ess

(-) Related Entries Specified in the PDB File

5erx 5ery 5esd 5eso 5ess
