(-) Description

Title :  CRYSTAL STRUCTURE OF THE BROMODOMAIN OF BROMODOMAIN ADJACENT TO ZINC FINGER DOMAIN PROTEIN 2B (BAZ2B) IN COMPLEX WITH N,N-DIMETHYLQUINOXALINE-6-CARBOXAMIDE (SGC - DIAMOND I04-1 FRAGMENT SCREENING)

Authors :  A. Bradley, N. Pearce, T. Krojer, J. Ng, R. Talon, M. Vollmar, B. Jose, F. Delft, C. Bountra, C. H. Arrowsmith, A. Edwards, S. Knapp, Structural Consortium (Sgc)
Date :  21 Jul 15  (Deposition) - 09 Sep 15  (Release) - 09 Sep 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.86
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Structural Genomics Consortium, Sgc, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Bradley, N. Pearce, T. Krojer, J. Ng, R. Talon, M. Vollmar, B. Jose, F. Von Delft, C. Bountra, C. H. Arrowsmith, A. Edwards, S. Knapp, Structural Genomics Consortium (Sgc)
Crystal Structure Of The Second Bromodomain Of Bromodomain Adjancent To Zinc Finger Domain Protein 2B (Baz2B) In Complex With N, N-Dimethylquinoxaline-6-Carboxamide (Sgc - Diamond I04-1 Fragment Screening)
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - BROMODOMAIN ADJACENT TO ZINC FINGER DOMAIN PROTEIN 2B
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PNIC28
    Expression System Taxid: 562
    Fragment: BROMODOMAIN
    Gene: BAZ2B, KIAA1476
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: HWALP4

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
153G1Ligand/IonN,N-DIMETHYLQUINOXALINE-6-CARBOXAMIDE
2EDO1Ligand/Ion1,2-ETHANEDIOL

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPRO A:1888 , VAL A:1898 , PRO A:1899 , ASN A:1944 , HOH A:2117binding site for residue 53G A 2001
2AC2SOFTWAREMET A:1875 , GLU A:1879 , LYS A:1964 , THR A:1968binding site for residue EDO A 2002

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5CQ7)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5CQ7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5CQ7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5CQ7)

(-) Exons   (0, 0)

(no "Exon" information available for 5CQ7)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:115

               SCOP domains ------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............hhhhhhhhhhhhhhhhhhhhhhh.........hhhhhh....hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------- Transcript
                5cq7 A 1856 SMSVKKPKRDDSKDLALCSMILTEMETHEDAWPFLLPVNLKLVPGYKKVIKKPMDFSTIREKLSSGQYPNLETFALDVRLVFDNCETFNEDDSDIGRAGHNMRKYFEKKWTDTFK 1970
                                  1865      1875      1885      1895      1905      1915      1925      1935      1945      1955      1965
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5CQ7)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5CQ7)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5CQ7)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    53G  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5cq7)


(-) Still Images

Jmol

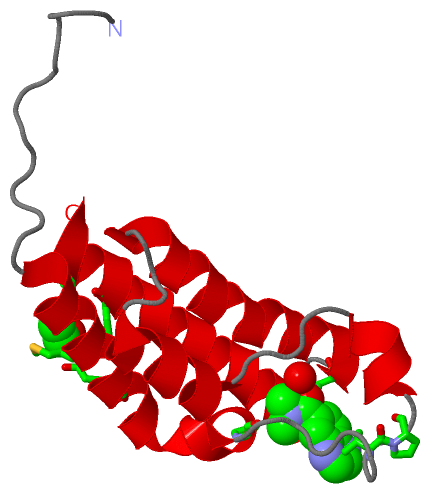

  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
