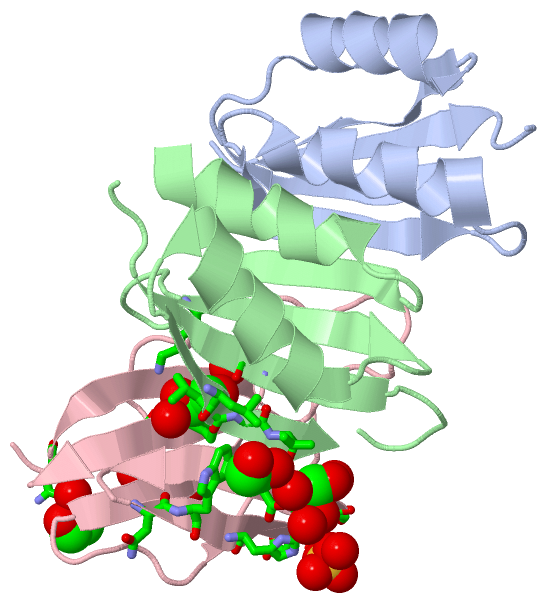

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  COMPLEX OF RICE BLAST (MAGNAPORTHE ORYZAE) EFFECTOR PROTEIN AVR-PIKD WITH THE HMA DOMAIN OF PIKP1 FROM RICE (ORYZA SATIVA)

Authors :  A. Maqbool, H. Saitoh, M. Franceschetti, C. E. Stevenson, A. Uemura, H. S. Kamoun, R. Terauchi, M. J. Banfield
Date :  01 Jul 15  (Deposition) - 26 Aug 15  (Release) - 22 Mar 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Antiviral Protein, Rice Blast Disease, Plant Disease Resistance, Effector Protein, Integrated Hma Domain (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Maqbool, H. Saitoh, M. Franceschetti, C. E. Stevenson, A. Uemura, H. Kanzaki, S. Kamoun, R. Terauchi, M. J. Banfield
Structural Basis Of Pathogen Recognition By An Integrated Hma Domain In A Plant Nlr Immune Receptor.
Elife V. 4 2015
PubMed-ID: 26304198  |  Reference-DOI: 10.7554/ELIFE.08709

(-) Compounds

Molecule 1 - RESISTANCE PROTEIN PIKP-1
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: POPINS3C
    Expression System Strain: K-12
    Expression System Taxid: 83333
    Expression System Variant: SHUFFLE
    Expression System Vector Type: PLASMID
    Fragment: PIKP-HMA, UNP RESIDUES 186-258
    Organism Common: RICE
    Organism Scientific: ORYZA SATIVA
    Organism Taxid: 4530
    Strain: K60

Molecule 2 - AVR-PIK PROTEIN
    Chains: C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: POPINA
    Expression System Strain: K-12
    Expression System Taxid: 83333
    Expression System Variant: SHUFFLE
    Expression System Vector Type: PLASMID
    Fragment: AVR-PIKD, UNP RESIDUES 22-113
    Organism Scientific: MAGNAPORTHE ORYZAE
    Organism Taxid: 318829
    Strain: SASA2

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 5)

Asymmetric/Biological Unit (2, 5)
No.NameCountTypeFull Name
1EDO4Ligand/Ion1,2-ETHANEDIOL
2SO41Ligand/IonSULFATE ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER C:73 , ASP C:90 , ASP C:91 , HOH C:2075BINDING SITE FOR RESIDUE SO4 C 1114
2AC2SOFTWARELEU B:254 , LEU C:35 , TRP C:84 , HOH C:2007 , HOH C:2043 , HOH C:2066BINDING SITE FOR RESIDUE EDO C 1115
3AC3SOFTWAREASN C:62 , ASN C:83 , TRP C:84 , HOH C:2030BINDING SITE FOR RESIDUE EDO C 1116
4AC4SOFTWAREVAL B:257 , HOH B:2039 , ASP C:77 , HIS C:86 , HOH C:2042BINDING SITE FOR RESIDUE EDO C 1117
5AC5SOFTWAREVAL B:192 , LYS B:228 , LEU B:255 , GLN B:256 , HOH B:2024 , HOH B:2040 , TRP C:56BINDING SITE FOR RESIDUE EDO B 1259

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1C:54 -C:93

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5A6W)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5A6W)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5A6W)

(-) Exons   (0, 0)

(no "Exon" information available for 5A6W)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:71

               SCOP domains ----------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee...hhhhhhhhhhhhh...eeeeeee.....eeeeee...hhhhhhhhhhhhh..eeeeeee Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------- Transcript
                 5a6w A 187 LKQKIVIKVAMENNCRSKAMALVASTGGVDSVALVGDLRDKIEVVGYGIDPIKLISALRKKVGDAELLQVS 258
                                   196 ||    207       217       227       237       247       257
                                     198|
                                      200


Chain B from PDB  Type:PROTEIN  Length:73

               SCOP domains ------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeeee...hhhhhhhhhhhh...eeeeeee.....eeeeee...hhhhhhhhhhhhh..eeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------- Transcript
                 5a6w B 184 GPGLKQKIVIKVAMENCRSKAMALVASTGGVDSVALVGDLRDKIEVVGYGIDPIKLISALRKKVGDAELLQVS 258
                                   193    || 205       215       225       235       245       255
                                        198|
                                         201


Chain C from PDB  Type:PROTEIN  Length:83

               SCOP domains ----------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......................eeeeeee..eeeeeeee...eeeeeee..eeeeeee.....ee......eeeeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------- Transcript
                 5a6w C  31 RAIDLSRERDPNFFDHPGIPVPECFWFMFKNNVRQDAGTCYSSWKMDMKVGPNWVHIKSDDNCNLSGDFPPGWIVLGKKRPGF 113
                                    40        50        60        70        80        90       100       110
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
