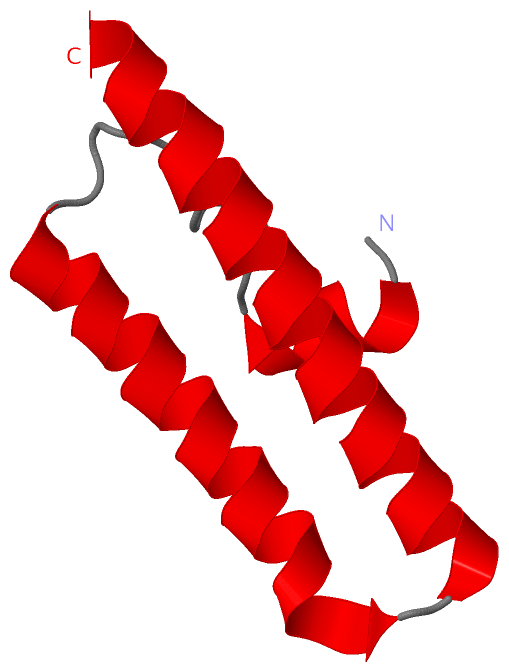

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE DIMERIZATION DOMAIN OF S. POMBE TAZ1

Authors :  W. Deng, J. Wu, F. Wang, M. Lei
Date :  04 May 15  (Deposition) - 23 Sep 15  (Release) - 23 Sep 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Telomere, Dimerization Domain, Fission Yeast, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  W. Deng, J. Wu, F. Wang, J. Kanoh, P. M. Dehe, H. Inoue, J. Chen, M. Lei
Fission Yeast Telomere-Binding Protein Taz1 Is A Functional But Not A Structural Counterpart Of Human Trf1 And Trf2.
Cell Res. V. 25 881 2015
PubMed-ID: 26088418  |  Reference-DOI: 10.1038/CR.2015.76

(-) Compounds

Molecule 1 - TELOMERE LENGTH REGULATOR TAZ1
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: DIMERIZATION DOMAIN (UNP RESIDUES 408-478)
    Gene: TAZ1, MYB, MYB1, SPAC16A10.07C
    Organism Common: FISSION YEAST
    Organism Scientific: SCHIZOSACCHAROMYCES POMBE (STRAIN 972 / ATCC 24843)
    Organism Taxid: 284812
    Strain: 972 / ATCC 24843

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4ZMK)

(-) Sites  (0, 0)

(no "Site" information available for 4ZMK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4ZMK)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4ZMK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ZMK)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ZMK)

(-) Exons   (0, 0)

(no "Exon" information available for 4ZMK)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:71

               SCOP domains ----------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------- Transcript
                 4zmk A 408 DTFSERTLGLNSIDNTEISEVVSLGLVSSALDKITGLLSADNLSETVSQARDFSHTLSKSLKSRAKSLSQK 478
                                   417       427       437       447       457       467       477
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ZMK)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ZMK)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ZMK)

(-) Gene Ontology  (27, 27)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4zmk)

  Sites
(no "Sites" information available for 4zmk)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4zmk)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4zmk
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TAZ1_SCHPO | P79005
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TAZ1_SCHPO | P79005
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TAZ1_SCHPO | P79005: 2l3n 4zmi

(-) Related Entries Specified in the PDB File

4zmi
