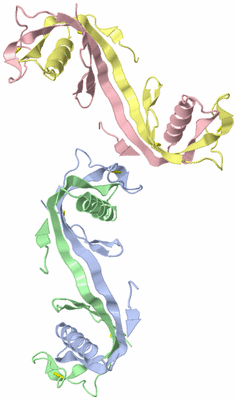

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

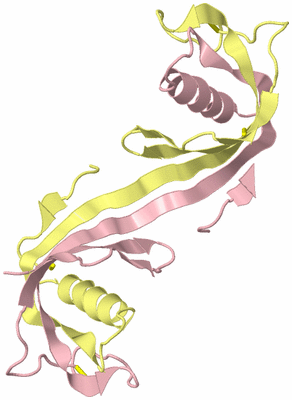

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF SIALOSTATIN L

Authors :  J. F. Andersen, M. Kosyfakis
Date :  02 May 15  (Deposition) - 17 Jun 15  (Release) - 17 Jun 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.68
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Cystatin, Tick, Protease Inhibitor, Hydrolase Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Kotsyfakis, H. Horka, J. Salat, J. F. Andersen
The Crystal Structures Of Two Salivary Cystatins From The Tick Ixodes Scapularis And The Effect Of These Inhibitors O The Establishment Of Borrelia Burgdorferi Infection In A Murine Model.
Mol. Microbiol. V. 77 456 2010
PubMed-ID: 20545851  |  Reference-DOI: 10.1111/J.1365-2958.2010.07220.X

(-) Compounds

Molecule 1 - PUTATIVE SECRETED CYSTATIN
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET17B
    Expression System Strain: BL21(DE3)PLYSS
    Expression System Taxid: 469008
    Organism Common: BLACK-LEGGED TICK
    Organism Scientific: IXODES SCAPULARIS
    Organism Taxid: 6945

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4ZM8)

(-) Sites  (0, 0)

(no "Site" information available for 4ZM8)

(-) SS Bonds  (8, 8)

Asymmetric Unit
No.Residues
1A:70 -A:81
2A:92 -A:111
3B:70 -B:81
4B:92 -B:111
5C:70 -C:81
6C:92 -C:111
7D:70 -D:81
8D:92 -D:111

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4ZM8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ZM8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ZM8)

(-) Exons   (0, 0)

(no "Exon" information available for 4ZM8)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:109

               SCOP domains ------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....ee....hhhhhhhhhhhhhhhhhh.....eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee..................eeeeeeeeee....eee........ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 4zm8 A   4 FGGYSERHQANPEFLNLAHYATSTWSAQQPGKTHFDTVAEVVKVETQVVAGTNYRLTLKVAESTCELTSTYNKDTCLPKADAAHRTCTTVVFENLQGDKSVSPFECEAA 114
                                  ||15        25        35        45        55        65        75        85        95       105
                                 10|
                                  13


Chain B from PDB  Type:PROTEIN  Length:109

               SCOP domains ------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....ee....hhhhhhhhhhhhhhhhh......eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee..................eeeeeeeeee....eee...ee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 4zm8 B   4 FGGYSERHQANPEFLNLAHYATSTWSAQQPGKTHFDTVAEVVKVETQVVAGTNYRLTLKVAESTCELTSTYNKDTCLPKADAAHRTCTTVVFENLQGDKSVSPFECEAA 114
                                  ||15        25        35        45        55        65        75        85        95       105
                                 10|
                                  13


Chain C from PDB  Type:PROTEIN  Length:109

               SCOP domains ------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....ee....hhhhhhhhhhhhhhhhh......eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee..................eeeeeeeeee....eee...eee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 4zm8 C   4 FGGYSERHQANPEFLNLAHYATSTWSAQQPGKTHFDTVAEVVKVETQVVAGTNYRLTLKVAESTCELTSTYNKDTCLPKADAAHRTCTTVVFENLQGDKSVSPFECEAA 114
                                  ||15        25        35        45        55        65        75        85        95       105
                                 10|
                                  13


Chain D from PDB  Type:PROTEIN  Length:109

               SCOP domains ------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....ee......hhhhhhhhhhhhhhhhh......eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee..................eeeeeeeeee....eee...eee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 4zm8 D   4 FGGYSERANHQANPEFLNLAHYATSTWSAQQPGKTHFDTVAEVVKVETQVVAGTNYRLTLKVAESTCELTSTYNKDTCLPKADAAHRTCTTVVFENLQGDKSVSPFECE 112
                                    13        23        33        43        53        63        73        83        93       103
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ZM8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ZM8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ZM8)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4zm8)

  Sites
(no "Sites" information available for 4zm8)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4zm8)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

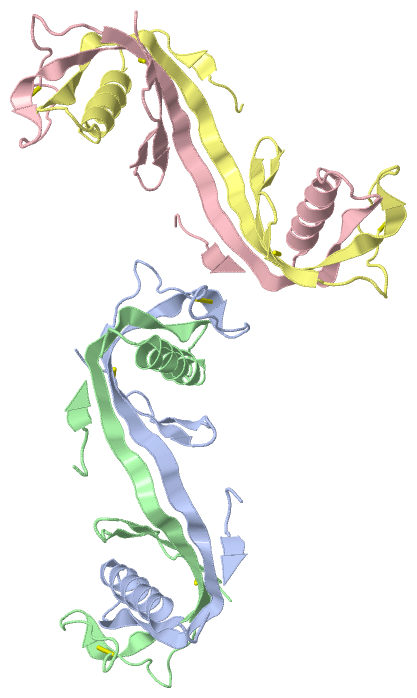

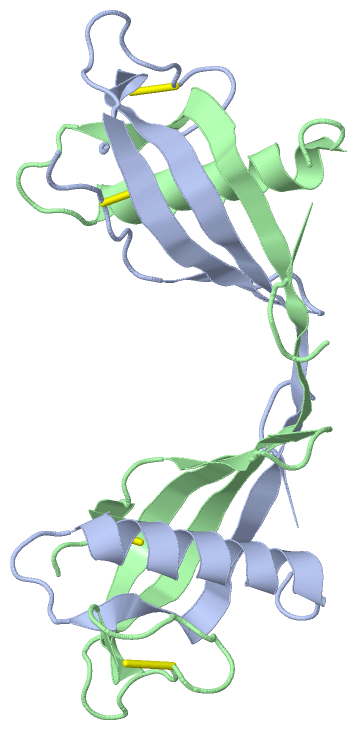

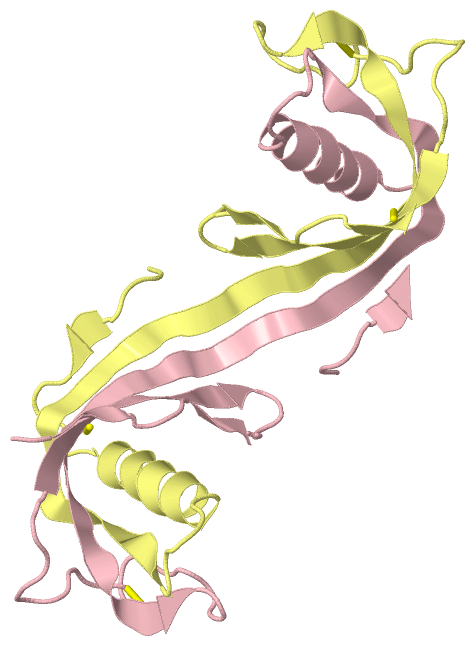

[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
