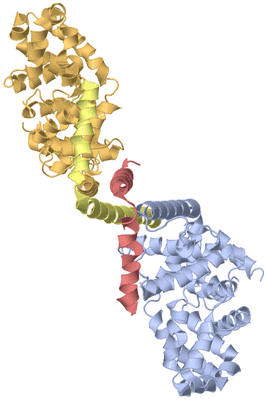

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE TBC1D7-TSC1 COMPLEX

Authors :  Z. Gai, G. Wu
Date :  06 Apr 15  (Deposition) - 20 Apr 16  (Release) - 20 Apr 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.81
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  B,C,E,F  (1x)
Biol. Unit 2:  A,D,G,H  (1x)
Keywords :  Coiled Coil, Heterotetramer, Hydrolase Inhibitor-Protein Binding Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Z. Gai, G. Wu
Structure Of The Tbc1D7-Tsc1 Complex
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - TBC1 DOMAIN FAMILY MEMBER 7
    Chains: B, G, E, A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 21-293
    Gene: TBC1D7, TBC7, HSPC239
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: CELL MIGRATION-INDUCING PROTEIN 23

Molecule 2 - HAMARTIN
    Chains: C, H, F, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 938-993
    Gene: TSC1, KIAA0243, TSC
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: TUBEROUS SCLEROSIS 1 PROTEIN

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x):  BC EF
Biological Unit 2 (1x): A  D  GH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4Z6Y)

(-) Sites  (0, 0)

(no "Site" information available for 4Z6Y)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4Z6Y)

(-) Cis Peptide Bonds  (5, 5)

Asymmetric Unit
No.Residues
1Glu G:23 -Glu G:24
2Val G:95 -Arg G:96
3His G:291 -Ser G:292
4Glu A:23 -Glu A:24
5Ser A:292 -Ser A:293

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4Z6Y)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4Z6Y)

(-) Exons   (0, 0)

(no "Exon" information available for 4Z6Y)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:273

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhh....hhhhhhhhhhhh..hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh.......hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4z6y A  21 GVEEKKSLEILLKDDRLDTEKLCTFSQRFPLPSMYRALVWKVLLGILPPHHESHAKVMMYRKEQYLDVLHALKVVRFVSDATPQAEVYLRMYQLESGKLPRSPSFPLEPDDEVFLAIAKAMEEMVEDSVDCYWITRRFVNQLNTKYRDSLPQLPKAFEQYLNLEDGRLLTHLRMCSAAPKLPYDLWFKRCFAGCLPESSLQRVWDKVVSGSCKILVFVAVEILLTFKIKVMALNSAEKITKFLENIPQDSSDAIVSKAIDLWHKHCGTPVHSS 293
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290


Chain B from PDB  Type:PROTEIN  Length:272

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhh....hhhhhhhhhhhh..hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh.......hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh....hhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4z6y B  21 GVEEKKSLEILLKDDRLDTEKLCTFSQRFPLPSMYRALVWKVLLGILPPHHESHAKVMMYRKEQYLDVLHALKVVRFVSDATPQAEVYLRMYQLESGKLPRSPSFPLEPDDEVFLAIAKAMEEMVEDSVDCYWITRRFVNQLNTKYRDSLPQLPKAFEQYLNLEDGRLLTHLRMCSAAPKLPYDLWFKRCFAGCLPESSLQRVWDKVVSGSCKILVFVAVEILLTFKIKVMALNSAEKITKFLENIPQDSSDAIVSKAIDLWHKHCGTPVHS 292
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290


Chain C from PDB  Type:PROTEIN  Length:53

               SCOP domains ----------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------- Transcript
                 4z6y C 940 QLQAAESRYEAQKRITQVFELEILDLYGRLEKDGLLKKLEEEKAEAAEAAEER 992
                                   949       959       969       979       989


Chain D from PDB  Type:PROTEIN  Length:53

               SCOP domains ----------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------- Transcript
                 4z6y D 940 QLQAAESRYEAQKRITQVFELEILDLYGRLEKDGLLKKLEEEKAEAAEAAEER 992
                                   949       959       969       979       989


Chain E from PDB  Type:PROTEIN  Length:272

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhh....hhhhhhhhhhhh.....hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh.......hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh....hhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4z6y E  21 GVEEKKSLEILLKDDRLDTEKLCTFSQRFPLPSMYRALVWKVLLGILPPHHESHAKVMMYRKEQYLDVLHALKVVRFVSDATPQAEVYLRMYQLESGKLPRSPSFPLEPDDEVFLAIAKAMEEMVEDSVDCYWITRRFVNQLNTKYRDSLPQLPKAFEQYLNLEDGRLLTHLRMCSAAPKLPYDLWFKRCFAGCLPESSLQRVWDKVVSGSCKILVFVAVEILLTFKIKVMALNSAEKITKFLENIPQDSSDAIVSKAIDLWHKHCGTPVHS 292
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290


Chain F from PDB  Type:PROTEIN  Length:54

               SCOP domains ------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------ Transcript
                 4z6y F 940 QLQAAESRYEAQKRITQVFELEILDLYGRLEKDGLLKKLEEEKAEAAEAAEERL 993
                                   949       959       969       979       989


Chain G from PDB  Type:PROTEIN  Length:272

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhh....hhhhhhhhhhhh..hhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh.......hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhh....hhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4z6y G  21 GVEEKKSLEILLKDDRLDTEKLCTFSQRFPLPSMYRALVWKVLLGILPPHHESHAKVMMYRKEQYLDVLHALKVVRFVSDATPQAEVYLRMYQLESGKLPRSPSFPLEPDDEVFLAIAKAMEEMVEDSVDCYWITRRFVNQLNTKYRDSLPQLPKAFEQYLNLEDGRLLTHLRMCSAAPKLPYDLWFKRCFAGCLPESSLQRVWDKVVSGSCKILVFVAVEILLTFKIKVMALNSAEKITKFLENIPQDSSDAIVSKAIDLWHKHCGTPVHS 292
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290


Chain H from PDB  Type:PROTEIN  Length:55

               SCOP domains ------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------- Transcript
                 4z6y H 938 RGQLQAAESRYEAQKRITQVFELEILDLYGRLEKDGLLKKLEEEKAEAAEAAEER 992
                                   947       957       967       977       987
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4Z6Y)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4Z6Y)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4Z6Y)

(-) Gene Ontology  (64, 67)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4z6y)

  Sites
(no "Sites" information available for 4z6y)

  Cis Peptide Bonds
    Glu A:23 - Glu A:24   [ RasMol ]
    Glu G:23 - Glu G:24   [ RasMol ]
    His G:291 - Ser G:292   [ RasMol ]
    Ser A:292 - Ser A:293   [ RasMol ]
    Val G:95 - Arg G:96   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4z6y
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TBCD7_HUMAN | Q9P0N9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  TSC1_HUMAN | Q92574
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TBCD7_HUMAN | Q9P0N9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  TSC1_HUMAN | Q92574
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TBCD7_HUMAN | Q9P0N9: 3qwl 5ejc
        TSC1_HUMAN | Q92574: 5ejc

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 4Z6Y)
