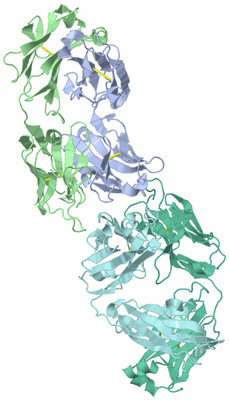

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

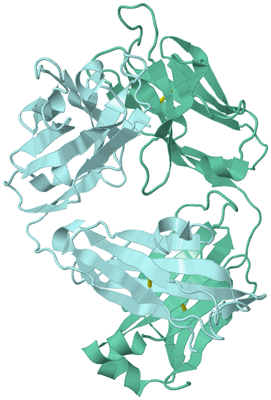

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  DABIGATRAN REVERSAL AGENT

Authors :  F. Schiele, H. Nar
Date :  27 Feb 15  (Deposition) - 10 Feb 16  (Release) - 10 Feb 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.31
Chains :  Asym. Unit :  A,B,F,L
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  F,L  (1x)
Keywords :  Antibodies, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Schiele, J. Van Ryn, T. Litzenburger, M. Ritter, D. Seeliger, H. Na
Structure-Guided Residence Time Optimization Of A Dabigatra Reversal Agent.
Mabs V. 7 871 2015
PubMed-ID: 26047352  |  Reference-DOI: 10.1080/19420862.2015.1057364

(-) Compounds

Molecule 1 - ADABI-FAB3 HEAVY CHAIN
    Chains: A, F
    Engineered: YES
    Expression System: CRICETINAE
    Expression System Common: HAMSTERS
    Expression System Taxid: 10026
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606

Molecule 2 - ADABI-FAB3 LIGHT CHAIN
    Chains: B, L
    Engineered: YES
    Expression System: CRICETINAE
    Expression System Common: HAMSTERS
    Expression System Taxid: 10026
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABFL
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   FL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4YHN)

(-) Sites  (0, 0)

(no "Site" information available for 4YHN)

(-) SS Bonds  (8, 8)

Asymmetric Unit
No.Residues
1A:22 -A:96
2A:146 -A:202
3B:23 -B:93
4B:139 -B:199
5F:22 -F:96
6F:146 -F:202
7L:23 -L:93
8L:139 -L:199

(-) Cis Peptide Bonds  (10, 10)

Asymmetric Unit
No.Residues
1Phe A:152 -Pro A:153
2Glu A:154 -Pro A:155
3Thr B:7 -Pro B:8
4Val B:99 -Pro B:100
5Tyr B:145 -Pro B:146
6Phe F:152 -Pro F:153
7Glu F:154 -Pro F:155
8Thr L:7 -Pro L:8
9Val L:99 -Pro L:100
10Tyr L:145 -Pro L:146

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4YHN)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4YHN)

(-) Exons   (0, 0)

(no "Exon" information available for 4YHN)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:220

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eee.....eeeeeeee..hhhhh.eeeeeee...eeeeeeee......eee.hhhh..eeeeee....eeeeee...hhhhheeeeeee.........ee...eeeee........eeeee..hhh.ee..eeeeeeeeeee.....eeee.hhh....eee...ee.....eeeeeeeeee.........eeeeeehhhheeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4yhn A   1 QVQLVQSGAEVKKPGASVKVSCKASGYTFTDYYMHWVRQAPGQGLEWMGETNPRNGGTTYNEKFKGKATMTRDTSTSTAYMELSSLRSEDTAVYYCTIGTSGWDYFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPK 220
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain B from PDB  Type:PROTEIN  Length:218

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeee.....eeeeeee............eeeeee......eeeee...ee.......eeeeee..eeeeee...hhhhheeeeeee......ee...eeeee.......eeeee..hhhhhhhheeeeeeeeeee.....eeeeee..ee....eeeee.........eeeeeeeeeehhhhhh..eeeeeee.......eeeeee... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4yhn B   1 DIVMTQTPLSLSVTPGQPASISCRSSQSIVHSDGNIYLEWYLQKPGQSPKLLIYKVSYRFSGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCFQASHVPYTFGQGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE 218
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210


Chain F from PDB  Type:PROTEIN  Length:220

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee...eee.....eeeeeeee..hhhhh.eeeeee.....eeeeeee......eee.hhhh..eeeeee....eeeeee...hhhhheeeeeee.........ee...eeeee........eeeee......ee..eeeeeeeeeee.....eeee.hhh....eee...ee.....eeeeeeeeee.........eeeeeehhhheeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4yhn F   1 QVQLVQSGAEVKKPGASVKVSCKASGYTFTDYYMHWVRQAPGQGLEWMGETNPRNGGTTYNEKFKGKATMTRDTSTSTAYMELSSLRSEDTAVYYCTIGTSGWDYFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPK 220
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220


Chain L from PDB  Type:PROTEIN  Length:218

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeee.....eeeeeee............eeeeee......eeeee...ee.......eeeeee..eeeeee...hhhhheeeeeee......ee...eeeee.......eeeee..hhhhhhhheeeeeeeeeee.....eeeeee..ee....eeeee.........eeeeeeeeeehhhhhh..eeeeeee.......eeeeee... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4yhn L   1 DIVMTQTPLSLSVTPGQPASISCRSSQSIVHSDGNIYLEWYLQKPGQSPKLLIYKVSYRFSGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCFQASHVPYTFGQGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGE 218
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4YHN)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4YHN)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4YHN)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4YHN)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4yhn)

  Sites
(no "Sites" information available for 4yhn)

  Cis Peptide Bonds
    Glu A:154 - Pro A:155   [ RasMol ]
    Glu F:154 - Pro F:155   [ RasMol ]
    Phe A:152 - Pro A:153   [ RasMol ]
    Phe F:152 - Pro F:153   [ RasMol ]
    Thr B:7 - Pro B:8   [ RasMol ]
    Thr L:7 - Pro L:8   [ RasMol ]
    Tyr B:145 - Pro B:146   [ RasMol ]
    Tyr L:145 - Pro L:146   [ RasMol ]
    Val B:99 - Pro B:100   [ RasMol ]
    Val L:99 - Pro L:100   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
