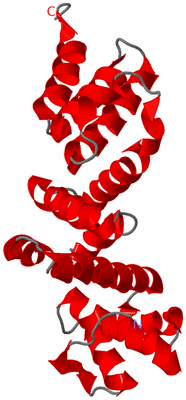

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  THE N-TERMINAL DOMAIN OF RUBISCO ACCUMULATION FACTOR 1 FROM ARABIDOPSIS THALIANA

Authors :  T. Hauser, J. Y. Bhat, G. Milicic, P. Wendler, F. U. Hartl, A. Bracher, M. Hartl
Date :  29 Oct 14  (Deposition) - 22 Jul 15  (Release) - 16 Sep 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.95
Chains :  Asym./Biol. Unit :  A
Keywords :  Assembly Chaperone, Chaperone (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Hauser, J. Y. Bhat, G. Milicic, P. Wendler, F. U. Hartl, A. Bracher, M. Hayer-Hartl
Structure And Mechanism Of The Rubisco-Assembly Chaperone Raf1.
Nat. Struct. Mol. Biol. V. 22 720 2015
PubMed-ID: 26237510  |  Reference-DOI: 10.1038/NSMB.3062

(-) Compounds

Molecule 1 - RUBISCO ACCUMULATION FACTOR 1, ISOFORM 2
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PHUE
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: RAF1 ALPHA-DOMAIN, UNP RESIDUES 62-274
    Gene: RAF2, AT3G04550, F7O18.2
    Organism Common: MOUSE-EAR CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4WT3)

(-) Sites  (0, 0)

(no "Site" information available for 4WT3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4WT3)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Asn A:235 -Pro A:236

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4WT3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4WT3)

(-) Exons   (0, 0)

(no "Exon" information available for 4WT3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:198

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....hhhhh..hhhhhhhhhhh...hhhhhhhhhhhhhhhh.hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh..hhhhhhh....hhhhhhhh...hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...hhhhh...hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh.hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4wt3 A  72 SSPIPTQFRSLDSAGKIEILAGRMALWFEYAPLISSLYTDGFTPPTIEELTGISSIEQNRLIVGAQVRDSILQSIHEPELISAFDTGGAELLYEIRLLSTTQRVAAATFIIDRNIDSKGAQDLARAIKDYPNRRGDVGWLDFDYNLPGDCLSFLYYRQSRENKNPSDQRTSMLLQALGVAESEKAKNRLNTELYGDKE 269
                                    81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4WT3)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4WT3)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4WT3)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4wt3)

  Sites
(no "Sites" information available for 4wt3)

  Cis Peptide Bonds
    Asn A:235 - Pro A:236   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4wt3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RAF2_ARATH | Q9SR19
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RAF2_ARATH | Q9SR19
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RAF2_ARATH | Q9SR19: 4wt4 4wt5
