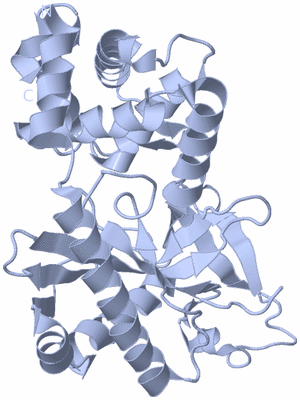

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE AND FUNCTIONAL ANALYSIS OF MID49, A RECEPTOR FOR THE MITOCHONDRIAL FISSION PROTEIN DRP1

Authors :  O. C. Loson, S. Meng, H. B. Ngo, R. Liu, J. T. Kaiser, D. C. Chan
Date :  17 Oct 14  (Deposition) - 28 Jan 15  (Release) - 04 Mar 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  A (1x),B (1x)
Keywords :  Mid49, Mitochondrial Fission, Nucleotidyl Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  O. C. Loson, S. Meng, H. Ngo, R. Liu, J. T. Kaiser, D. C. Chan
Crystal Structure And Functional Analysis Of Mid49, A Receptor For The Mitochondrial Fission Protein Drp1.
Protein Sci. V. 24 386 2015
PubMed-ID: 25581164  |  Reference-DOI: 10.1002/PRO.2629

(-) Compounds

Molecule 1 - MITOCHONDRIAL DYNAMICS PROTEIN MID49
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: ROSETTA
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 126-454
    Gene: MIEF2, GM11, MID49, SMCR7
    Mutation: YES
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: MITOCHONDRIAL DYNAMICS PROTEIN OF 49 KDA HOMOLOG, MITOCHONDRIAL ELONGATION FACTOR 2,SMITH-MAGENIS SYNDROME CHROMOSOMAL REGION CANDIDATE GENE 7 PROTEIN HOMOLOG

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x): A (1x)B (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4WOY)

(-) Sites  (0, 0)

(no "Site" information available for 4WOY)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4WOY)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric Unit
No.Residues
1Leu A:186 -Gln A:187
2Lys A:291 -Val A:292
3Val A:292 -Gln A:293

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4WOY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4WOY)

(-) Exons   (0, 0)

(no "Exon" information available for 4WOY)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:329

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh........eee..............eeeeee.......eeeee.hhh......eeeeee..........hhhhh.ee..eehhhhhhhhhhhhhhhh.hhhhhhhhhh.eeee.....eeeee......eeeeeeeeee........eee...........eeeehhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh......hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh...ee..eeeee.....hhhhhhhhhhhhhhh..hhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4woy A 126 TFQERLLAFERKHVITPEAHVTLAKQLAGDIALELQAYLRSKFPELPFGALVPGGPLYDGLQAGTAEHVRLLAPLELEPGLWSLVPGVDTVAAEPRCWAVRRTQLEFHPRGCSPWDRFLVGGYLSSRVLLELLRKALSASVNWPAIGSLLGCLIWPDVASEELLLKVQHECLEFTLAVLMVVPGASTDDRLLLAWPLEGLASNLWLQDLYPVETARLRALDDQDAGTRRRLLLLLCGICRGHPALVRLGWSHLTQVVLHLGEEEVAWTEEALGERFLQALEFLVGSLEQASLPCHFNPSVNLLGNFREEEIDDIGYVLYSGLQVPESLF 454
                                   135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445


Chain B from PDB  Type:PROTEIN  Length:329

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh........eee..............eeeeee.......eeeee.hhh......eeeeee..........hhhhh.ee..eehhhhhhhhhhhhhhhh.hhhhhhhhh..eeee.......eeeee....eeeeeeeeeee.......eee...........eeeehhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh......hhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhh...ee..eeeee.....hhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4woy B 126 TFQERLLAFERKHVITPEAHVTLAKQLAGDIALELQAYLRSKFPELPFGALVPGGPLYDGLQAGTAEHVRLLAPLELEPGLWSLVPGVDTVAAEPRCWAVRRTQLEFHPRGCSPWDRFLVGGYLSSRVLLELLRKALSASVNWPAIGSLLGCLIWPDVASEELLLKVQHECLEFTLAVLMVVPGASTDDRLLLAWPLEGLASNLWLQDLYPVETARLRALDDQDAGTRRRLLLLLCGICRGHPALVRLGWSHLTQVVLHLGEEEVAWTEEALGERFLQALEFLVGSLEQASLPCHFNPSVNLLGNFREEEIDDIGYVLYSGLQVPESLF 454
                                   135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4WOY)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4WOY)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4WOY)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4woy)

  Sites
(no "Sites" information available for 4woy)

  Cis Peptide Bonds
    Leu A:186 - Gln A:187   [ RasMol ]
    Lys A:291 - Val A:292   [ RasMol ]
    Val A:292 - Gln A:293   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4woy
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MID49_MOUSE | Q5NCS9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MID49_MOUSE | Q5NCS9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4WOY)

(-) Related Entries Specified in the PDB File

4wp0
