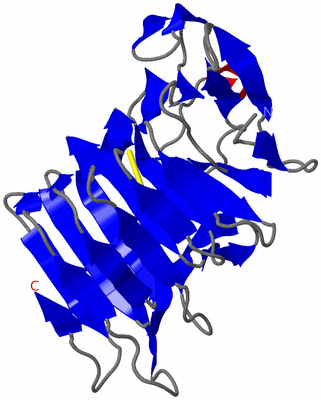

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HEMOLYSIN A Y134F FROM P. MIRABILIS AT 1.5 ANGSTROMS RESOLUTION

Authors :  W. R. P. Novak, E. Glasgow, J. R. Thompson, T. M. Weaver
Date :  26 Aug 14  (Deposition) - 07 Oct 15  (Release) - 07 Oct 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.52
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Hemolysin, Two Partner Secretion, Beta Solenoid, Beta Helix, Toxin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  W. R. P. Novak, E. Glasgow, J. R. Thompson, T. M. Weaver
Crystal Structure Of Hemolysin A Y134F From P. Mirabilis At 1. 5 Angstroms Resolution
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HEMOLYSIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET24A+
    Expression System Taxid: 562
    Gene: HPMA
    Mutation: YES
    Organism Scientific: PROTEUS MIRABILIS
    Organism Taxid: 584

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4W8R)

(-) Sites  (0, 0)

(no "Site" information available for 4W8R)

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:144 -A:147

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4W8R)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4W8R)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4W8R)

(-) Exons   (0, 0)

(no "Exon" information available for 4W8R)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:234

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...ee.......eeeee...eeeee........eeeeeeee.......eeeee....eee...eee..hhhhh.....eeeeee.....eee..eeeeee..eeeeee....eee..eeee.eeeeeee..eeeee..eeeeee......eeee....eee..eeeeee.eeee...ee..eeeeee.eeee.....eeeee.......eee...ee...eeeee......ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4w8r A  30 NGIVPDAGHQGPDVSAVNGGTQVINIVTPNNEGISHNQYQDFNVGKPGAVFNNALEAGQSQLAGHLNANSNLNGQAASLILNEVVSRNPSFLLGQQEVFGIAAEFVLSNPNGITCDGCGFINTSRSSLVVGNPLFENGQLKGYSTLNNTNLLSLGKNGLNTTGLLDLIAPRIDSRGKITAAEISAFTGQNTFSQHFDILSSQKPVSALDSYFFGSMQSGRIRIINTAEGSGVKL 263
                                    39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4W8R)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4W8R)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4W8R)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4w8r)

  Sites
(no "Sites" information available for 4w8r)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4w8r)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4w8r
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HLYA_PROMI | P16466
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HLYA_PROMI | P16466
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HLYA_PROMI | P16466: 3fy3 4w8q 4w8s 4w8t 5kdk 5keh 5kf3 5kkd 5sz8

(-) Related Entries Specified in the PDB File

4w8q 4w8s 4w8t
