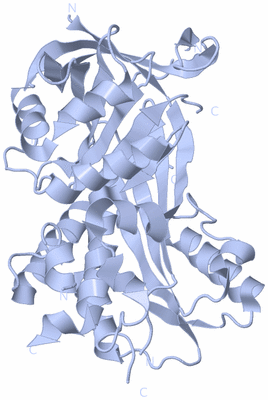

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

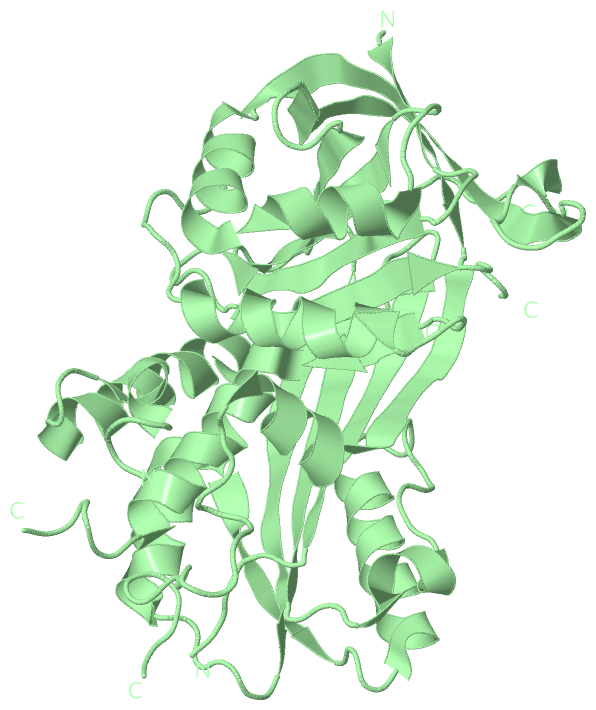

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

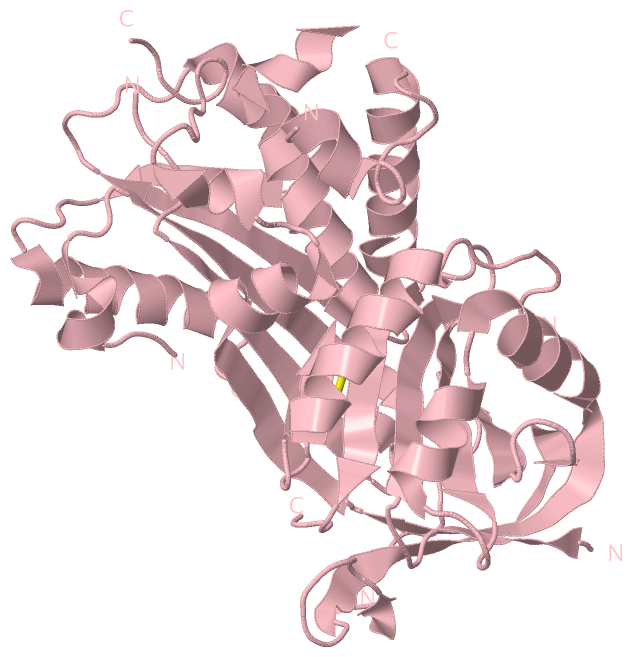

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

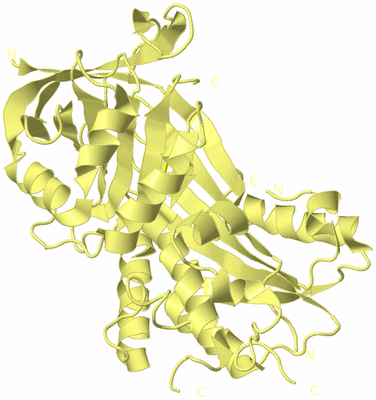

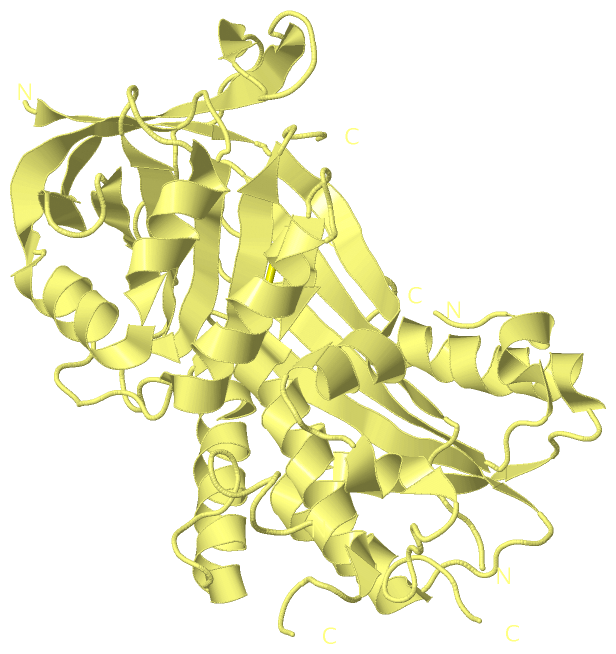

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)
Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)
Image Biological Unit 6
Biological Unit 6  (Jmol Viewer)
Image Biological Unit 7
Biological Unit 7  (Jmol Viewer)

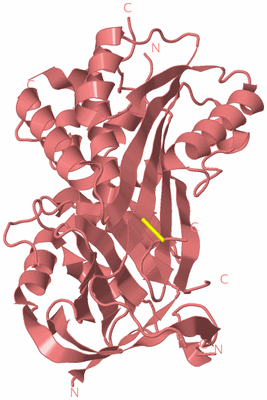

Image Biological Unit 8
Biological Unit 8  (Jmol Viewer)

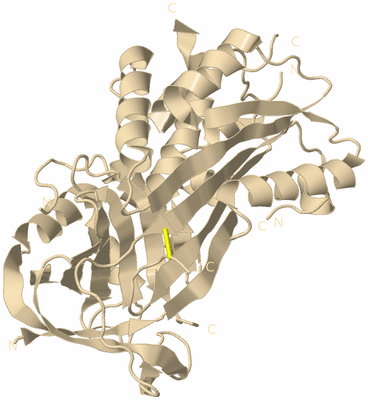

Image Biological Unit 9
Biological Unit 9  (Jmol Viewer)

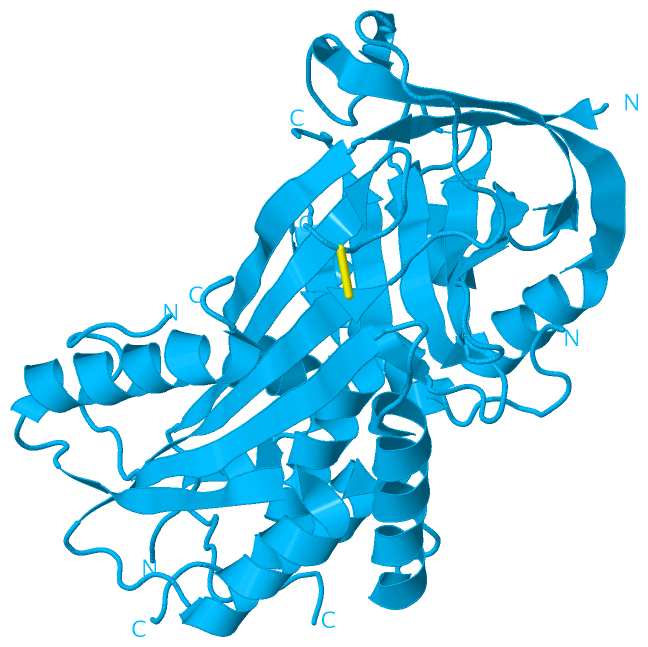

Image Biological Unit 10
Biological Unit 10  (Jmol Viewer)
Image Biological Unit 11
Biological Unit 11  (Jmol Viewer)
Image Biological Unit 12
Biological Unit 12  (Jmol Viewer)

(-) Description

Title :  2.9A RESOLUTION STRUCTURE OF SRPN2 (K198C/E359C) FROM ANOPHELES GAMBIAE

Authors :  S. Lovell, K. P. Battaile, X. Zhang, D. A. Meekins, C. An, K. Michel
Date :  10 Nov 14  (Deposition) - 24 Dec 14  (Release) - 11 Feb 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Biol. Unit 5:  E  (1x)
Biol. Unit 6:  F  (1x)
Biol. Unit 7:  G  (1x)
Biol. Unit 8:  H  (1x)
Biol. Unit 9:  I  (1x)
Biol. Unit 10:  J  (1x)
Biol. Unit 11:  K  (1x)
Biol. Unit 12:  L  (1x)
Keywords :  Serpin, Serine Protease, Insect Immunity, Hydrolase Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Zhang, D. A. Meekins, C. An, M. Zolkiewski, K. P. Battaile, M. R. Kanost, S. Lovell, K. Michel
Structural And Inhibitory Effects Of Hinge Loop Mutagenesis In Serpin-2 From The Malaria Vector Anopheles Gambiae.
J. Biol. Chem. V. 290 2946 2015
PubMed-ID: 25525260  |  Reference-DOI: 10.1074/JBC.M114.625665

(-) Compounds

Molecule 1 - SERPIN 2
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3) PRARE
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: SRPN2
    Mutation: YES
    Organism Common: AFRICAN MALARIA MOSQUITO
    Organism Scientific: ANOPHELES GAMBIAE
    Organism Taxid: 7165

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric Unit : ABCDEFGHIJKL
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D
Biological Unit 5 (1x):     E
Biological Unit 6 (1x):      F
Biological Unit 7 (1x):       G
Biological Unit 8 (1x):        H
Biological Unit 9 (1x):         I
Biological Unit 10 (1x):          J
Biological Unit 11 (1x):           K
Biological Unit 12 (1x):            L

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4RSQ)

(-) Sites  (0, 0)

(no "Site" information available for 4RSQ)

(-) SS Bonds  (12, 12)

Asymmetric Unit
No.Residues
1A:198 -A:359
2B:198 -B:359
3C:198 -C:359
4D:198 -D:359
5E:198 -E:359
6F:198 -F:359
7G:198 -G:359
8H:198 -H:359
9I:198 -I:359
10J:198 -J:359
11K:198 -K:359
12L:198 -L:359

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4RSQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4RSQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4RSQ)

(-) Exons   (0, 0)

(no "Exon" information available for 4RSQ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:356

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh....eeehhhhhhhhhhhhhhhhhhhh..hhhhh.......hhhhhhhhhhhhhhhhhh....eeeeeeeeeeee.....hhhhhhhhhhh...eeeee...hhhhhhhhhhhhhhhh.........hhhhhh...eeeeeeeeeee..........eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhhhh.hhhhh................eeeeeeeeee........eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq A  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSFGNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLREIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCAVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66        76|       90       100       110       120       130       140       150       160       170       180       190       200       212       222       232       242       252       262       272       282       292       302       312       322       332||     347       357  ||   383       393       403
                                                                            76|                                                                                                                            208|                                                                                                                       333|                  360|
                                                                             81                                                                                                                             211                                                                                                                        339                   377


Chain B from PDB  Type:PROTEIN  Length:355

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhh.....eeehhhhhhhhhhhhhhh..........hhhhh...hhhhhhhhhhhhhhhhhh....eeeeeeeeeeee.....hhhhhhhhhhhhheeeeee...hhhhhhhhhhhhhhhh.........hhhhhh...eeeeeeeeeee...........eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhhh.......................eeeeeeeeee.......eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq B  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSFGTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLREIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVNNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66        76|       91       101       111       121       131       141       151       161       171       181       191       201      |212       222       232       242       252       262       272       282       292       302       312       322       332||     347       357 ||    384       394       404
                                                                            76|                                                                                                                           208|                                                                                                                        333|                 359|
                                                                             82                                                                                                                            210                                                                                                                         339                  377


Chain C from PDB  Type:PROTEIN  Length:354

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh....eeehhhhhhhhhhhhhhhhhhhh..hhhhh.......hhhhhhhhhhhhhhhhhh.....eeeeeeeeee......hhhhhhhhhhhhheeeee....hhhhhhhhhhhhhhhh......hhhhhh...eeeeeeeeeeee..........eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhh.hhhhhhhhhhhheeeeeeeeee.eeeeeeeehhhhhhhh..hhhhh................eeeeeeeeee...ee...eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4rsq C  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSFGNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVNNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCAVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66        76|       90       100       110       120       130       140       150       160       170   ||  183       193       203    || 214       224       234       244       254       264       274       284       294       304       314       324       339       349       359||     385       395       405
                                                                            76|                                                                                          174|                           208|                                                                                                                        333|                  360|
                                                                             81                                                                                           178                            210                                                                                                                         339                   377


Chain D from PDB  Type:PROTEIN  Length:355

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhh.....eeehhhhhhhhhhhhhhhh.................hhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.....hhhhhhhhhhhhheeeeee...hhhhhhhhhhhhhhhh.......hhhhhh...eeeeeeeeee.............eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhh...hhhhh................eeeeeeeeee........eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq D  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSFGTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVANNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCAVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66        76|       91       101       111       121       131       141       151       161       171   ||  183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333|      348       358 ||    384       394       404
                                                                            76|                                                                                          175|                                                                                                                                                        333|                  360|
                                                                             82                                                                                           178                                                                                                                                                         339                   377


Chain E from PDB  Type:PROTEIN  Length:356

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh....eeehhhhhhhhhhhhhhhh....hhhhhhhhh...hhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.....hhhhhhhhhhhhheeeeee...hhhhhhhhhhhhhhhh..........hhhhh...eeeeeeeeee.............eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhh......................eeeeeeeeeeee........eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq E  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLREIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVANNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCAVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66       |82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332||     347       357  ||   383       393       403
                                                                          74|                                                                                                                                                                                                                                                         333|                  360|
                                                                           81                                                                                                                                                                                                                                                          339                   377


Chain F from PDB  Type:PROTEIN  Length:353

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh....eeehhhhhhhhhhhhhhhh...hhhhhhhhh...hhhhhhhhhhhhhhhhhh....eeeeeeeeeeee.....hhhhhhhhhhhh.eeeeee...hhhhhhhhhhhhhhhhh.................eeeeeeeeeee...........eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhhhh.hhhhh................eeeeeeeeee.......eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq F  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLREIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVNNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66      ||83        93       103       113       123       133       143       153       163       173       183       193       203    || 214       224       234       244       254       264       274       284       294       304       314       324       339       349       359|      386       396       406
                                                                         73|                                                                                                                            208|                                                                                                                        333|                 359|
                                                                          81                                                                                                                             210                                                                                                                         339                  377


Chain G from PDB  Type:PROTEIN  Length:357

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhh.....eeehhhhhhhhhhhhhhhhhhhh.hhhhh.......hhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.....hhhhhhhhhhhhheeeeee...hhhhhhhhhhhhhhhh..........hhhhh...eeeeeeeeee.............eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhhh..hhhhh................eeeeeeeeee........eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq G  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSFNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLREIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVANNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCAVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331 ||    346       356   ||  382       392       402
                                                                           75|                                                                                                                                                                                                                                                         333|                  360|
                                                                            81                                                                                                                                                                                                                                                          339                   377


Chain H from PDB  Type:PROTEIN  Length:357

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh....eeehhhhhhhhhhhhhhhhhhhh..hhhhh.......hhhhhhhhhhhhhhhhhh....eeeeeeeeeeee.....hhhhhhhhhhhh..eeeee...hhhhhhhhhhhhhhhhh........hhhhhh...eeeeeeeeeee...........eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhhh..hhhhh................eeeeeeeeee........eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq H  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSFGNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLREIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVNNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCAVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66        76|       90       100       110       120       130       140       150       160       170       180       190       200       211       221       231       241       251       261       271       281       291       301       311       321       331 ||    346       356   ||  382       392       402
                                                                            76|                                                                                                                            208|                                                                                                                        333|                  360|
                                                                             81                                                                                                                             210                                                                                                                         339                   377


Chain I from PDB  Type:PROTEIN  Length:356

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh....eeehhhhhhhhhhhhhhhhhhhh..hhhhh.......hhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.....hhhhhhhhhhhhheeeeee...hhhhhhhhhhhhhhhhh.......hhhhh...eeeeeeeeee.............eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhhh..hhhhh................eeeeeeeeee........eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq I  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSFGNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVANNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCAVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66        76|       90       100       110       120       130       140       150       160       170    || 182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332||     347       357  ||   383       393       403
                                                                            76|                                                                                           175|                                                                                                                                                        333|                  360|
                                                                             81                                                                                            178                                                                                                                                                         339                   377


Chain J from PDB  Type:PROTEIN  Length:355

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh....eeehhhhhhhhhhhhhhhh.....hhhhhhhhh...hhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.....hhhhhhhhhhhhheeeeee...hhhhhhhhhhhhhhhhh...............eeeeeeeeee.............eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhh.hhhhhhhhhhhheeeeeeeeee.eeeeeeeehhhhhhhhh.hhhhh................eeeeeeeeee........eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq J  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSFNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVANNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCAVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66        81        91       101       111       121       131       141       151       161       171   ||  183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333|      348       358 ||    384       394       404
                                                                           75|                                                                                           175|                                                                                                                                                        333|                  360|
                                                                            81                                                                                            178                                                                                                                                                         339                   377


Chain K from PDB  Type:PROTEIN  Length:356

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhh.....eeehhhhhhhhhhhhhhhh....hhhhh.......hhhhhhhhhhhhhhhhhh....eeeeeeeeeeee.....hhhhhhhhhhhh.eeeeee...hhhhhhhhhhhhhhhhh.........hhhhh...eeeeeeeeeee............eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhh..hhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhhh..hhhhh................eeeeeeeeee........eeee....eeeeeee....eeeeeeee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq K  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLREIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVANNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCAVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66       |82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332||     347       357  ||   383       393       403
                                                                          74|                                                                                                                                                                                                                                                         333|                  360|
                                                                           81                                                                                                                                                                                                                                                          339                   377


Chain L from PDB  Type:PROTEIN  Length:356

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhh....eeehhhhhhhhhhhhhhhhhhhh.hhhhhhhhh...hhhhhhhhhhhhhhhhhh.....eeeeeeeeeee.....hhhhhhhhhhhh.eeeeee...hhhhhhhhhhhhhhhh.........hhhhhh...eeeeeeeeee.............eeee.......eeeeeeeeeeeeeeeee....eeeeeee.....eeeeeeee....hhhhhhhhhhhhhhhhhhhh.eeeeeeeeee.eeeeeeeehhhhhhhh..hhhhh................eeeeeeeeee.......eeee....eeeeeee.....eeeeeee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rsq L  27 GPFQGQRQNEFDLMFVKEIFKNHNSNVVLSPFSVKILLTLIYEASDTSFNTKRELSSVIQNDNIDHTRSYYKQLLESAQQDNKDYDLNIATNFFVDDFIEVINKYQQIANTHYHAMLEKVSYSNPTQTAATINNWVSEHTNGRLREIVTPDSLEGAVITLVNVIYFCGLWTYPFPEVANNVKPFYGTRGKPTNAQYMEQNGQFYYDNSADLGAQILRLPYRGNKLAMYFILPNPDNTVNQVLDRINSASLHQALWYMEENEVNVTLPKFKFDFSEQLNEPLQQVGIREIFSQNASLPLLARGEVRVSRIFQKAGITINELGSCVQIFNANRPFIFFIEDETLGTMLFAGKIENPVF 409
                                    36        46        56        66        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331 ||    346       356  ||   383       393       403
                                                                           75|                                                                                                                                                                                                                                                         333|                 359|
                                                                            81                                                                                                                                                                                                                                                          339                  377
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4RSQ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4RSQ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4RSQ)

(-) Gene Ontology  (1, 1)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4rsq)

  Sites
(no "Sites" information available for 4rsq)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4rsq)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]
    Biological Unit 7  [ Jena3D ]
    Biological Unit 8  [ Jena3D ]
    Biological Unit 9  [ Jena3D ]
    Biological Unit 10  [ Jena3D ]
    Biological Unit 11  [ Jena3D ]
    Biological Unit 12  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format | Biol. Unit 6 PNG format | Biol. Unit 7 PNG format | Biol. Unit 8 PNG format | Biol. Unit 9 PNG format | Biol. Unit 10 PNG format | Biol. Unit 11 PNG format | Biol. Unit 12 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4rsq
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q005N3_ANOGA | Q005N3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q005N3_ANOGA | Q005N3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q005N3_ANOGA | Q005N3: 3pzf 4ro9 4roa 4rob

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 4RSQ)
