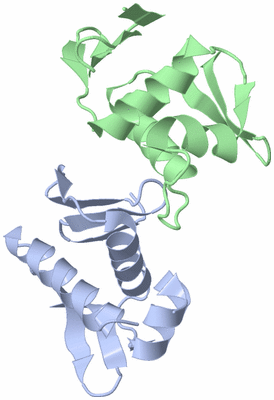

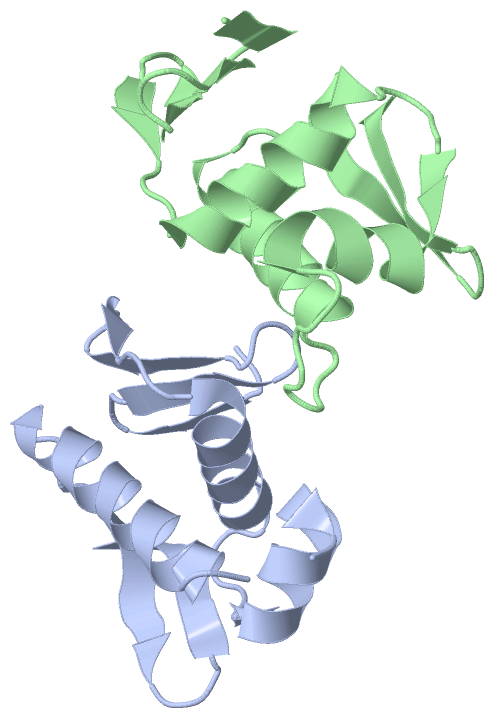

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

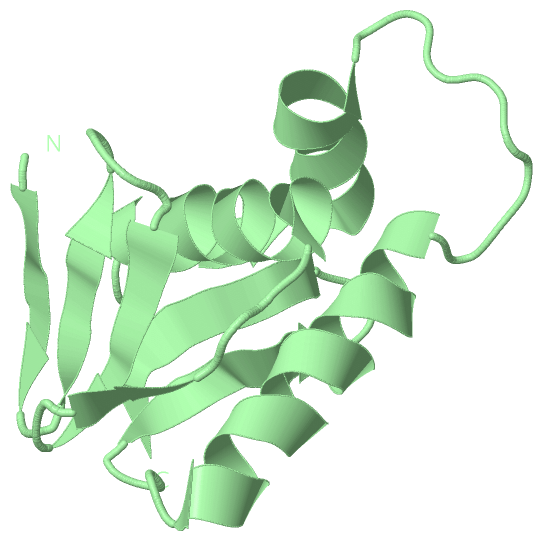

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

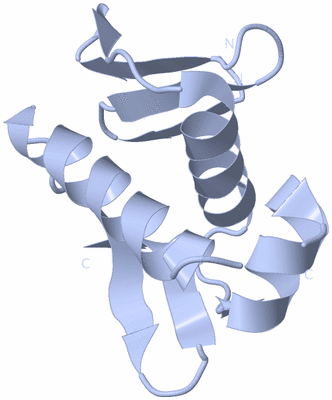

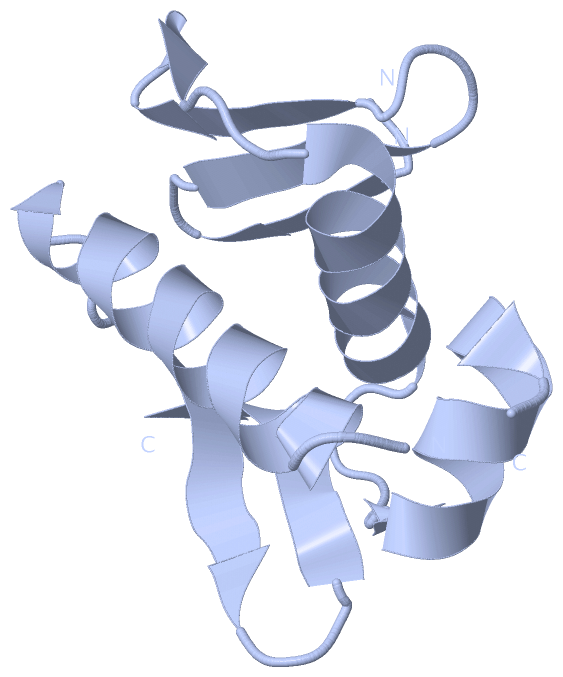

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE DNA-BINDING DOMAIN OF THE RESPONSE REGULATOR SAER FROM STAPHYLOCOCCUS AUREUS

Authors :  X. Fan, Y. Zhu, X. Zhang, M. Teng, X. Li
Date :  17 Jul 14  (Deposition) - 19 Aug 15  (Release) - 19 Aug 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  B  (1x)
Biol. Unit 2:  A  (1x)
Keywords :  Winged Helix-Turn-Helix, Gene Expression Regulation, Dna, Transcription Regulator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Fan, X. Zhang, Y. Zhu, L. Niu, M. Teng, B. Sun, X. Li
Structure Of The Dna-Binding Domain Of The Response Regulator Saer From Staphylococcus Aureus.
Acta Crystallogr. , Sect. D V. 71 1768 2015
PubMed-ID: 26249357  |  Reference-DOI: 10.1107/S1399004715010287

(-) Compounds

Molecule 1 - RESPONSE REGULATOR SAER
    Chains: B, A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 123-228
    Gene: SAER, CH52_02235, X998_0755
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280
    Synonym: SAER, TRANSCRIPTIONAL REGULATORY FAMILY PROTEIN

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x):  B
Biological Unit 2 (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4QWQ)

(-) Sites  (0, 0)

(no "Site" information available for 4QWQ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4QWQ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4QWQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4QWQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4QWQ)

(-) Exons   (0, 0)

(no "Exon" information available for 4QWQ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:96

               SCOP domains ------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eee..eeee....eeee..ee...hhhhhhhhhhhhh.....eehhhhhhhhh....hhhhhhhhhhhhhhhh.....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------ Transcript
                 4qwq A 128 EQLSFDELTLINLSKVVTVNGHEVPMRIKEFELLWYLASRENEVISKSELLEKVWGYDANTVNVHIHRIREKLEKESFTTYTITTVWGLGYKFERS 227
                                   137       147       157       167       177      |191       201       211       221
                                                                                  184|
                                                                                   189


Chain B from PDB  Type:PROTEIN  Length:100

               SCOP domains ---------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee..eeee....eeee..ee...hhhhhhhhhhhhh....eehhhhhhhhhh.........hhhhhhhhhhhhhhhh....eeeeee...eeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 4qwq B 128 EQLSFDELTLINLSKVVTVNGHEVPMRIKEFELLWYLASRENEVISKSELLEKVWGYDYYEDANTVNVHIHRIREKLEKESFTTYTITTVWGLGYKFERS 227
                                   137       147       157       167       177       187       197       207       217       227
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4QWQ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4QWQ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4QWQ)

(-) Gene Ontology  (8, 12)
