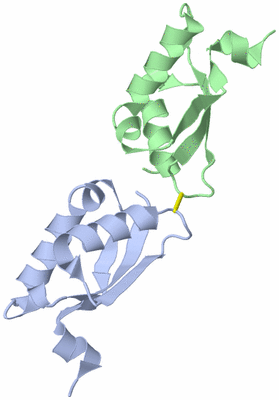

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  OXIDIZED BOLA2 FROM ARABIDOPSIS THALIANA

Authors :  T. Roret, C. Didierjean
Date :  13 Mar 14  (Deposition) - 15 Apr 15  (Release) - 22 Apr 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Stress-Responsive Protein, Transcriptional Regulator, Morphogen, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Roret, P. Tsan, J. Couturier, B. Zhang, M. K. Johnson, N. Rouhier, C. Didierjean
Structural And Spectroscopic Insights Into Bola-Glutaredoxi Complexes.
J. Biol. Chem. V. 289 24588 2014
PubMed-ID: 25012657  |  Reference-DOI: 10.1074/JBC.M114.572701

(-) Compounds

Molecule 1 - AT5G09830
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: AT5G09830, AT5G09830
    Organism Common: MOUSE-EAR CRESS,THALE-CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Synonym: BOLA-LIKE FAMILY PROTEIN, PUTATIVE UNCHARACTERIZED PROTEIN AT5G09830

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4PUH)

(-) Sites  (0, 0)

(no "Site" information available for 4PUH)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:29 -B:29

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4PUH)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4PUH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4PUH)

(-) Exons   (0, 0)

(no "Exon" information available for 4PUH)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:81

               SCOP domains --------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh..eeeeee.......eeeeeee.hhhh..hhhhhhhhhhhhh.hhhhh..eeee.eeehhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                  4puh A  2 VTKEQVEASLTSKLKPIHLEVIDISGGCGSSFEVEVVSEQFEGKRLLERHRMVNAALEEEMKEIHALSIKKAQTPQQWKPP 82
                                    11        21        31        41        51        61        71        81


Chain B from PDB  Type:PROTEIN  Length:81

               SCOP domains --------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhh..eeeeee.......eeeeeee.hhhh..hhhhhhhhhhhhh.hhhhh..eeee.eeehhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                  4puh B  2 VTKEQVEASLTSKLKPIHLEVIDISGGCGSSFEVEVVSEQFEGKRLLERHRMVNAALEEEMKEIHALSIKKAQTPQQWKPP 82
                                    11        21        31        41        51        61        71        81
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4PUH)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4PUH)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4PUH)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4puh)

  Sites
(no "Sites" information available for 4puh)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4puh)

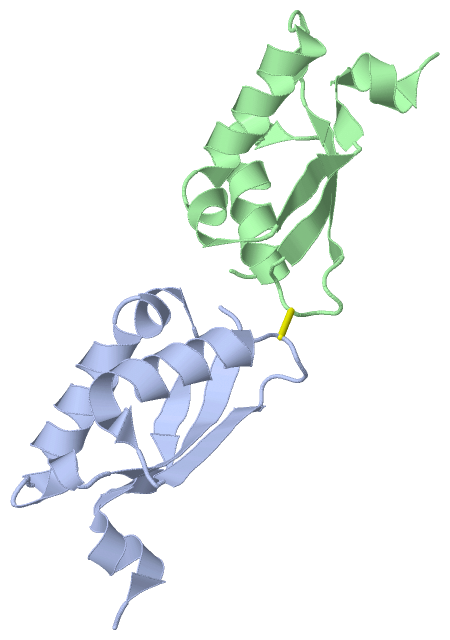

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4puh
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  BOLA2_ARATH | Q9FIC3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  BOLA2_ARATH | Q9FIC3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        BOLA2_ARATH | Q9FIC3: 2mm9 2mma

(-) Related Entries Specified in the PDB File

4pui
