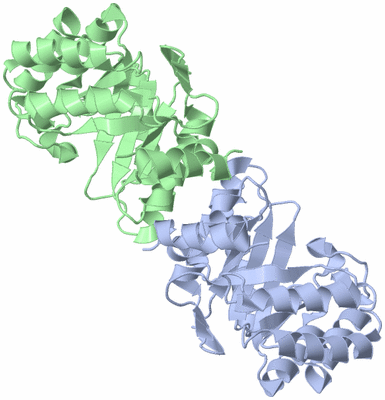

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF 3-DEHYDROQUINATE DEHYDRATASE FROM ENTEROCOCCUS FAECALIS

Authors :  B. Xue, V. W. Cheung, W. S. Yew, R. C. Robinson
Date :  05 May 14  (Deposition) - 17 Sep 14  (Release) - 17 Sep 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B
Keywords :  (Beta/Alpha)8 Barrel, Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. W. Cheung, B. Xue, M. Hernandez-Valladares, M. K. Go, A. Tung, A. H. Aguda, R. C. Robinson, W. S. Yew
Identification Of Polyketide Inhibitors Targeting 3-Dehydroquinate Dehydratase In The Shikimate Pathway Of Enterococcus Faecalis
Plos One V. 9 03598 2014
PubMed-ID: 25072253  |  Reference-DOI: 10.1371/JOURNAL.PONE.0103598

(-) Compounds

Molecule 1 - 3-DEHYDROQUINATE DEHYDRATASE
    Chains: A, B
    EC Number: 4.2.1.10
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-15B, MODIFIED
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: AROD, EBSD, EF_1731
    Organism Scientific: ENTEROCOCCUS FAECALIS
    Organism Taxid: 226185
    Strain: ATCC 700802 / V583
    Synonym: 3-DEHYDROQUINASE,TYPE I DHQASE

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4PH6)

(-) Sites  (0, 0)

(no "Site" information available for 4PH6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4PH6)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4PH6)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4PH6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4PH6)

(-) Exons   (0, 0)

(no "Exon" information available for 4PH6)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:240

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eee..eee.....eeeeee...hhhhhhhhhhhhh.....eeeee.hhh....hhhhhhhhhhhhhhh.....eeee..hhhhh.....hhhhhhhhhhhhhhhh...eeeee...hhhhhhhhhhhhhhh..eeeeeeee.....hhhhhhhhhhhhhhh...eeeeee...hhhhhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhh..eee...hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4ph6 A   3 PVIVKNVRIGEGNPKIVVPIVAPTAEDILAEATASQTLDCDLVEWRLDYYENVADFSDVCNLSQQVMERLGQKPLLLTFRTQKEGGEMAFSEENYFALYHELVKKGALDLLDIELFANPLAADTLIHEAKKAGIKIVLCNHDFQKTPSQEEIVARLRQMQMRQADICKIAVMPQDATDVLTLLSATNEMYTHYASVPIVTMSMGQLGMISRVTGQLFGSALTFGSLSVQVLRNYLKTFEQ 251
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222    || 241       251
                                                                                                                                                                                                                                                          227|
                                                                                                                                                                                                                                                           237


Chain B from PDB  Type:PROTEIN  Length:240

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eee..eee.....eeeeee...hhhhhhhhhhhhh.....eeeee.hhh....hhhhhhhhhhhhhhh.....eeee..hhhhh.....hhhhhhhhhhhhhhhh...eeeee...hhhhhhhhhhhhhhh..eeeeeee......hhhhhhhhhhhhhhh...eeeeee...hhhhhhhhhhhhhhhhhhh....eeeee....hhhhhhhhhhhh..eee...hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4ph6 B   3 PVIVKNVRIGEGNPKIVVPIVAPTAEDILAEATASQTLDCDLVEWRLDYYENVADFSDVCNLSQQVMERLGQKPLLLTFRTQKEGGEMAFSEENYFALYHELVKKGALDLLDIELFANPLAADTLIHEAKKAGIKIVLCNHDFQKTPSQEEIVARLRQMQMRQADICKIAVMPQDATDVLTLLSATNEMYTHYASVPIVTMSMGQLGMISRVTGQLFGSALTFGSLSVQVLRNYLKTFEQ 251
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222    || 241       251
                                                                                                                                                                                                                                                          227|
                                                                                                                                                                                                                                                           237
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4PH6)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4PH6)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4PH6)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4ph6)

  Sites
(no "Sites" information available for 4ph6)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4ph6)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4ph6
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  AROD_ENTFA | P36923
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.2.1.10
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  AROD_ENTFA | P36923
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
