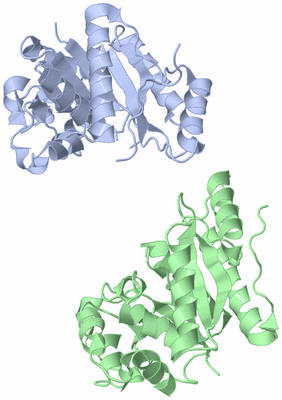

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

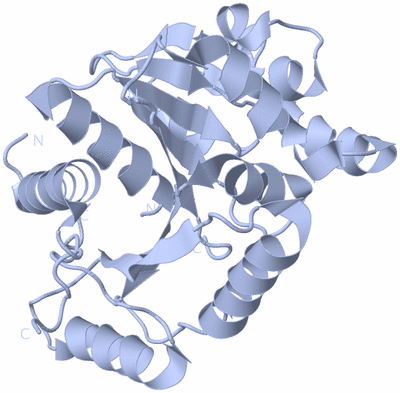

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

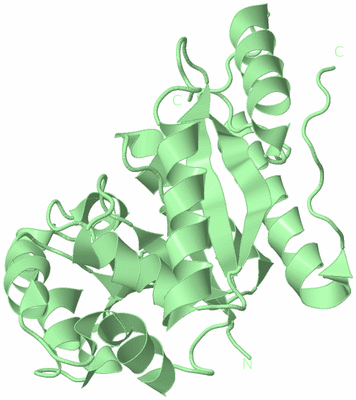

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF COBYRINIC ACID A,C-DIAMIDE SYNTHASE FROM MYCOBACTERIUM SMEGMATIS

Authors :  Seattle Structural Genomics Center For Infectious Disease (S
Date :  30 Apr 14  (Deposition) - 21 May 14  (Release) - 21 May 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Ssgcid, Cobyrinic Acid A, C-Diamide Synthase, Structural Genomics, Seattle Structural Genomics Center For Infectious Disease (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. R. Davies, J. Fairman, J. Abendroth
Crystal Structure Of Cobyrinic Acid A, C-Diamide Synthase From Mycobacterium Smegmatis
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - COBYRINIC ACID A,C-DIAMIDE SYNTHASE
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: MSMEG_1927
    Organism Scientific: MYCOBACTERIUM SMEGMATIS
    Organism Taxid: 246196
    Strain: ATCC 700084

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4PFS)

(-) Sites  (0, 0)

(no "Site" information available for 4PFS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4PFS)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Ala A:217 -Pro A:218
2Ala B:217 -Pro B:218

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4PFS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4PFS)

(-) Exons   (0, 0)

(no "Exon" information available for 4PFS)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:245

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee......hhhhhhhhhhhhhhh...eeeee....hhhhhhh..hhhhh..hhhhhhh...hhhhhhee.....eee....hhhhhhhhhhhh.hhhhhhhhhhhhhh....eeeee.....hhhhhhhhhhh.eeeeeee.......hhhhhhhhhhhhhhhh....eeeeeeee......hhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4pfs A   9 MTRVLAVANQKGAKTTTVASIGAALTEQGRRVLLVDLDPQGCLTFSLGHDPDKLPVSVHEVLLGDVEPSAALVRTDEGMTLLPANIDLAGAEAMLLMRAGREYALKRALAKLDGDFDVVIIDCPPSLGVLTLNGLTAAHDVIVPLQCETLAHRGVGQFLRTISDVQQITNPDLKLLGALPTLYDSRTTHSRDVLLDVADRYELPVLAPPIPRTRKSKGAIAYREFADALLRHWKSGRKMPTFTPE 271
                                    18 ||     30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220  ||   246       256       266
                                      20|                                                                                                                                                                                                     223|
                                       23                                                                                                                                                                                                      240


Chain B from PDB  Type:PROTEIN  Length:246

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeee.....hhhhhhhhhhhhhhhhhh...eeeee....hhhhhhh..hhhhh..hhhhhhh...hhhhh.ee.....eee....hhhhhhhhhh...hhhhhhhhhhhh......eeeee.....hhhhhhhhhhh.eeeeeee.......hhhhhhhhhhhhhhhh....eeeeeeee......hhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4pfs B   9 MTRVLAVANQKGGVAKTTTVASIGAALTEQGRRVLLVDLDPQGCLTFSLGHDPDKLPVSVHEVLLGDVEPSAALVRTDEGMTLLPANIDLAGAEAMLLMRAGREYALKRALAKLDGDFDVVIIDCPPSLGVLTLNGLTAAHDVIVPLQCETLAHRGVGQFLRTISDVQQITNPDLKLLGALPTLYDSRTTHSRDVLLDVADRYELPVLAPPIPRTKSKGAIAYREFADALLRHWKSGRKMPTFTPE 271
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218    || 245       255       265
                                                                                                                                                                                                                                                223|
                                                                                                                                                                                                                                                 241
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4PFS)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4PFS)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4PFS)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4PFS)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4pfs)

  Sites
(no "Sites" information available for 4pfs)

  Cis Peptide Bonds
    Ala A:217 - Pro A:218   [ RasMol ]
    Ala B:217 - Pro B:218   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

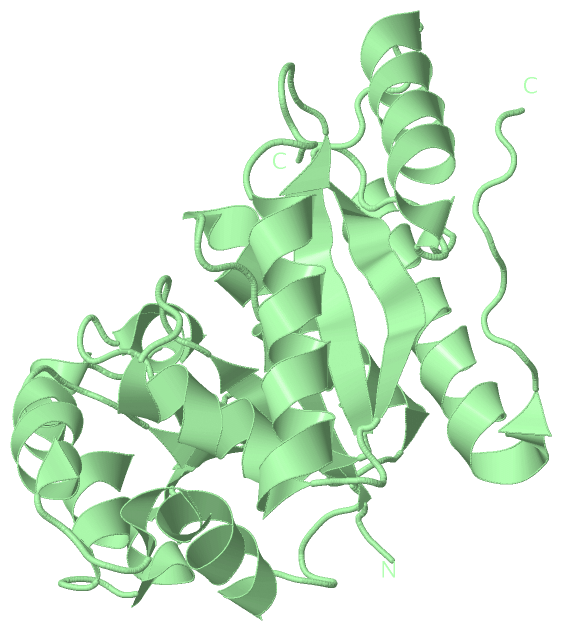

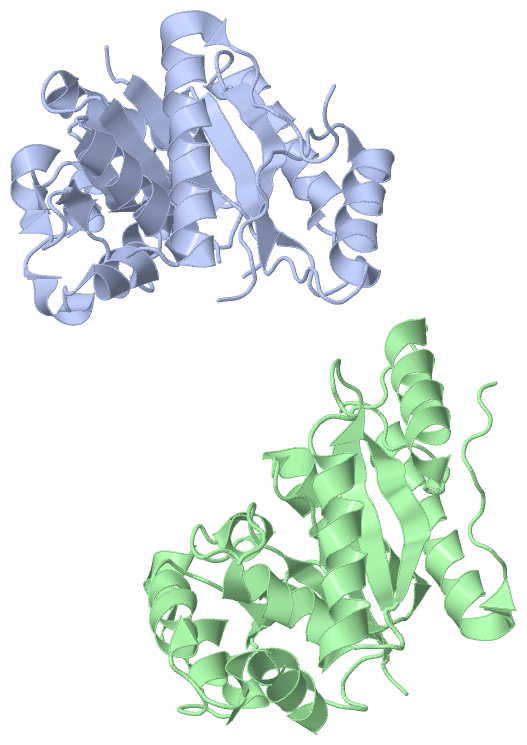

[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4pfs
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0QTQ5_MYCS2 | A0QTQ5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0QTQ5_MYCS2 | A0QTQ5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        A0QTQ5_MYCS2 | A0QTQ5: 5if9 5ihp

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 4PFS)
