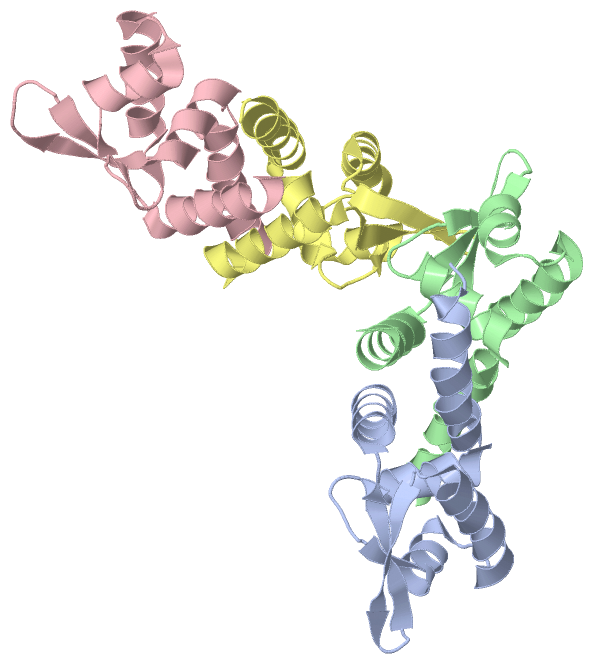

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

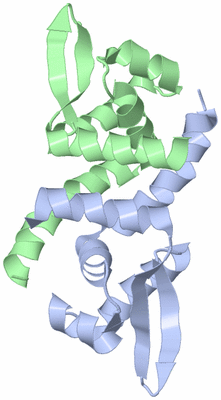

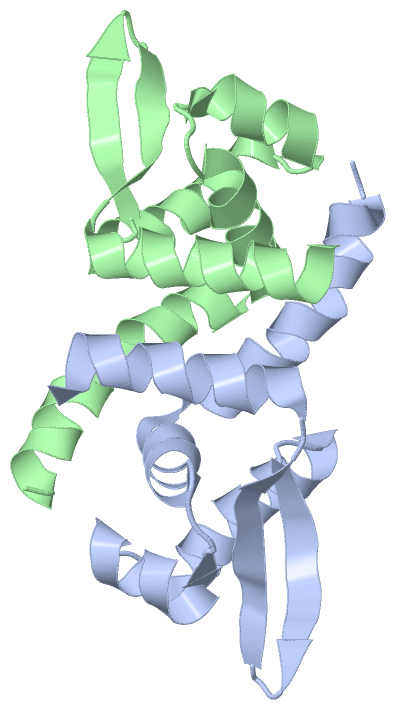

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

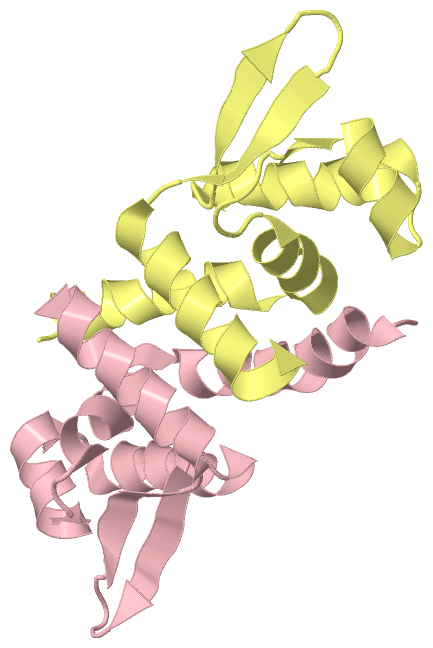

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  REDUCED HLYU FROM VIBRIO CHOLERAE N16961

Authors :  D. Mukherjee, A. B. Datta, P. Chakrabarti
Date :  03 Feb 14  (Deposition) - 31 Dec 14  (Release) - 31 Dec 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Winged Helix, Dna-Binding Domain, Hemolysin Gene Transcription Regulator, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Mukherjee, A. B. Datta, P. Chakrabarti
Crystal Structure Of Hlyu, The Hemolysin Gene Transcription Activator, From Vibrio Cholerae N16961 And Functional Implications
Biochim. Biophys. Acta V. 1844 2346 2014
PubMed-ID: 25450504  |  Reference-DOI: 10.1016/J.BBAPAP.2014.09.020

(-) Compounds

Molecule 1 - TRANSCRIPTIONAL ACTIVATOR HLYU
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A(+)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: HLYU, VC_0678
    Organism Scientific: VIBRIO CHOLERAE
    Organism Taxid: 243277
    Strain: SEROTYPE O1 STR. N16961

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4OOI)

(-) Sites  (0, 0)

(no "Site" information available for 4OOI)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4OOI)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Glu D:79 -Ala D:80

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4OOI)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4OOI)

(-) Exons   (0, 0)

(no "Exon" information available for 4OOI)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:95

               SCOP domains ----------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eehhhhhhhh..hhhhhhhhhhhhhhh..eeeeee..eeeeee.hhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------- Transcript
                 4ooi A  11 LQEMEKNSAKAVVLLKAMANERRLQILCMLLDNELSVGELSSRLELSQSALSQHLAWLRRDGLVNTRKEAQTVFYTLSSTEVKAMIELLHRLYCQ 105
                                    20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:96

               SCOP domains ------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eehhhhhhhh..hhhhhhhhhhhhhhh..eeeeee..eeeeee.hhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------ Transcript
                 4ooi B  10 NLQEMEKNSAKAVVLLKAMANERRLQILCMLLDNELSVGELSSRLELSQSALSQHLAWLRRDGLVNTRKEAQTVFYTLSSTEVKAMIELLHRLYCQ 105
                                    19        29        39        49        59        69        79        89        99


Chain C from PDB  Type:PROTEIN  Length:94

               SCOP domains ---------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eehhhhhhhhh.hhhhhhhhhhhhhhh..eeeee....eeeee.hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------- Transcript
                 4ooi C  11 LQEMEKNSAKAVVLLKAMANERRLQILCMLLDNELSVGELSSRLELSQSALSQHLAWLRRDGLVNTRKEAQTVFYTLSSTEVKAMIELLHRLYC 104
                                    20        30        40        50        60        70        80        90       100


Chain D from PDB  Type:PROTEIN  Length:92

               SCOP domains -------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhh.....eehhhhhhhh..hhhhhhhhhhhhhhh..eeeee....eeeee.hhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------- Transcript
                 4ooi D  14 MEKNSAKAVVLLKAMANERRLQILCMLLDNELSVGELSSRLELSQSALSQHLAWLRRDGLVNTRKEAQTVFYTLSSTEVKAMIELLHRLYCQ 105
                                    23        33        43        53        63        73        83        93       103
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4OOI)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4OOI)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4OOI)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4ooi)

  Sites
(no "Sites" information available for 4ooi)

  Cis Peptide Bonds
    Glu D:79 - Ala D:80   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4ooi
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HLYU_VIBCH | P52695
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HLYU_VIBCH | P52695
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HLYU_VIBCH | P52695: 4k2e

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 4OOI)
