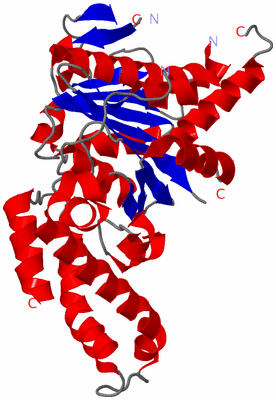

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF SSAN FROM SALMONELLA ENTERICA

Authors :  S. N. Sugiman-Marangos, K. Zhang, C. A. Cooper, B. K. Coombes, M. S. Juno
Date :  21 Nov 13  (Deposition) - 23 Jul 14  (Release) - 23 Jul 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.09
Chains :  Asym./Biol. Unit :  A
Keywords :  T3Ss, Protein Transport, Atpase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. E. Allison, B. R. Tuinema, E. Everson, C. A. Cooper, S. N. Sugiman-Marangos, K. Zhang, M. S. Junop, B. K. Coombes
Crystal Structure Of Ssan From Salmonella Enterica
J. Biol. Chem. 2014
PubMed: search

(-) Compounds

Molecule 1 - PROBABLE SECRETION SYSTEM APPARATUS ATP SYNTHASE SSAN
    Chains: A
    EC Number: 3.6.3.14
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET3A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: SSAN, STM1415
    Organism Scientific: SALMONELLA ENTERICA SUBSP. ENTERICA SEROVAR TYPHIMURIUM
    Organism Taxid: 99287
    Strain: SEROVAR TYPHIMURIUM SL1344

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4NPH)

(-) Sites  (0, 0)

(no "Site" information available for 4NPH)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4NPH)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Asp A:252 -Ser A:253
2Glu A:270 -Thr A:271
3Val A:308 -Glu A:309
4Tyr A:341 -Pro A:342

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4NPH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4NPH)

(-) Exons   (0, 0)

(no "Exon" information available for 4NPH)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:324

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eeehhhhh.eeee..............eee..............hhhhhhhh......eeeeee....hhhhhhhhhh......eeeeeee..hhhhhhhhhhhh.hhhhhh.eeeeee....hhhhhhhhhhhhhhhhhhhhhh..eeeeeeehhhhhhhhhhhhhhh.....hhhhhhhhhhhh.ee....eeeeeeeee...hhhhhhhhhhh.eeee.hhhhhhh......hhhhhee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4nph A  90 QVPVGEALLGRVIDGFGRPLDGRELPDVCWKAMVRQPITQPLMTGIRAIDSVATCGEGQRVGIFSAPGVGKSTLLAMLCNAPDADSNVLVLIGERGREVREFIDFTLSEETRKRCVIVVATSDRPALERVRALFVATTIAEFFRDNGKRVVLLADSLTRYARAAREIALAAGETAGVFSALPRLLERTGMGEKGSITAFYTVLVENEPLADEVRSLLDGHIVLSRRLAERGHYPAIDVLATLSRVFPVVTSHEHRQLAAILRRCLALYQEVELLIRIGEYQRGVDTDTDKAIDTYPDICTFLRQSKDEVCGPELLIEKLHQILT 432
                                    99       109       119||     137       147       157       167       177       187       197       207       217       227       237       247       257       267    || 284       294       304    || 318       328       338       348       358       368       378       388       398       408       418       428
                                                        120|                                                                                                                                            272|                          309|
                                                         129                                                                                                                                             280                           314
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4NPH)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4NPH)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4NPH)

(-) Gene Ontology  (23, 23)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4nph)

  Sites
(no "Sites" information available for 4nph)

  Cis Peptide Bonds
    Asp A:252 - Ser A:253   [ RasMol ]
    Glu A:270 - Thr A:271   [ RasMol ]
    Tyr A:341 - Pro A:342   [ RasMol ]
    Val A:308 - Glu A:309   [ RasMol ]


(-) Still Images

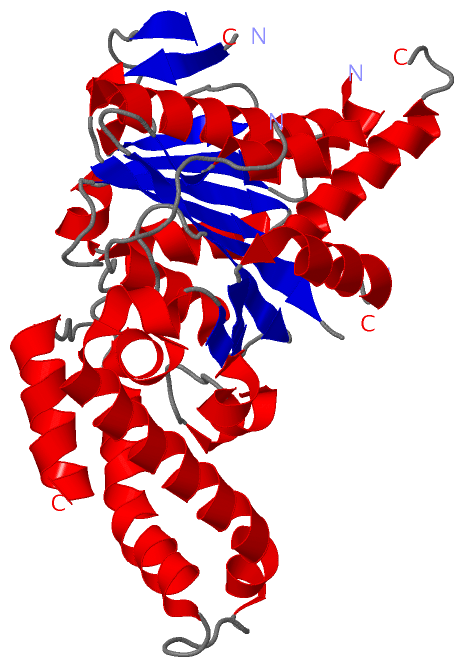

Jmol
