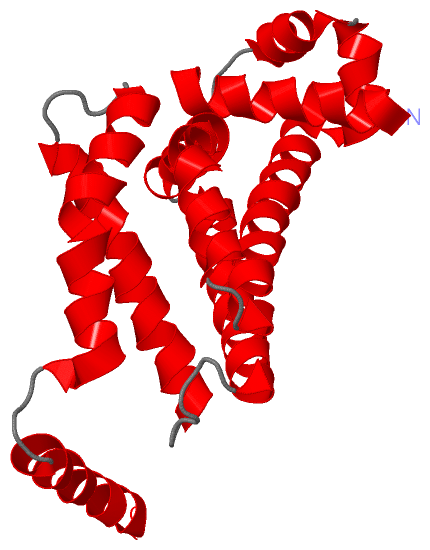

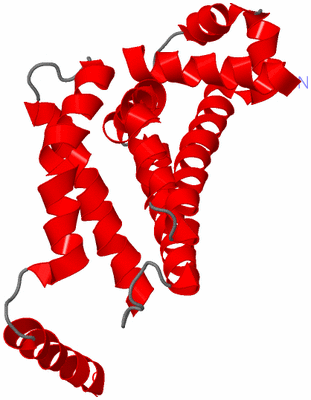

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

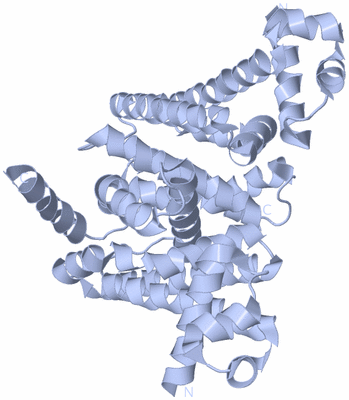

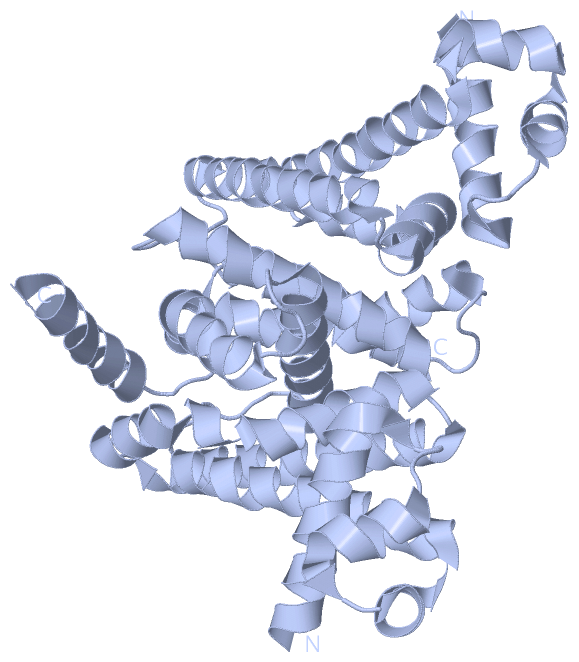

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TRANSCRIPTIONAL REGULATOR RV1219C OF MYCOBACTERIUM TUBERCULOSIS

Authors :  N. Kumar, A. Radhakrishnan, T. -H. Chou, E. Yu
Date :  15 Nov 13  (Deposition) - 19 Feb 14  (Release) - 07 May 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.99
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Helix Turn Helix Motif, Dna Binding Transcriptional Regulator, Dna Binding, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. Kumar, A. Radhakrishnan, C. C. Wright, T. H. Chou, H. T. Lei, J. R. Bolla, M. L. Tringides, K. R. Rajashankar, C. C. Su, G. E. Purdy, E. W. Yu
Crystal Structure Of The Transcriptional Regulator Rv1219C Of Mycobacterium Tuberculosis.
Protein Sci. V. 23 423 2014
PubMed-ID: 24424575  |  Reference-DOI: 10.1002/PRO.2424

(-) Compounds

Molecule 1 - TRANSCRIPTIONAL REGULATOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET15B
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: RV1219C, RVBD_1219C
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Organism Taxid: 83332
    Strain: H37RV

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4NN1)

(-) Sites  (0, 0)

(no "Site" information available for 4NN1)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4NN1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4NN1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4NN1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4NN1)

(-) Exons   (0, 0)

(no "Exon" information available for 4NN1)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:205

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh...hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4nn1 A   6 LTAHARIREAAIEQFGRHGFGVGLRAIAEAAGVSAALVIHHFGSKEGLRKACDDFVAEEIRSSKAAALKSNDPTTWLAQMAEIESYAPLMAYLVRSMQSGGELAKMLWQKMIDNAEEYLDEGVRAGTVKPSRDPRARARFLAITGGGGFLLYLQMHENPTDLRAALRDYAHDMVLPSLEVYTEGLLADRAMYEAFLAEAQQGEAH 210
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4NN1)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4NN1)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4NN1)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4nn1)

  Sites
(no "Sites" information available for 4nn1)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4nn1)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
