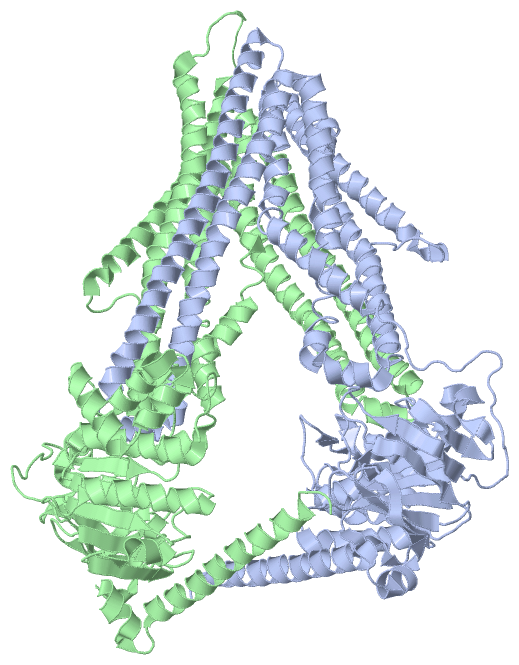

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE MITOCHONDRIAL ABC TRANSPORTER, ATM1

Authors :  V. Srinivasan
Date :  27 Sep 13  (Deposition) - 26 Mar 14  (Release) - 26 Mar 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.06
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C  (2x)
Keywords :  Abc Transporter, Membrane Transport, Mitochondrial Inner Membrane, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. Srinivasan, A. J. Pierik, R. Lill
Crystal Structures Of Nucleotide-Free And Glutathione-Bound Mitochondrial Abc Transporter Atm1.
Science V. 343 1137 2014
PubMed-ID: 24604199  |  Reference-DOI: 10.1126/SCIENCE.1246729

(-) Compounds

Molecule 1 - IRON-SULFUR CLUSTERS TRANSPORTER ATM1, MITOCHONDRIAL
    Chains: A, C, B
    EC Number: 3.6.3.44
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 98-690
    Gene: ATM1, MDY, YMR301C, YM9952.03C
    Organism Common: BAKER'S YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 559292
    Strain: ATCC 204508 / S288C

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): AB
Biological Unit 2 (2x):   C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4MYC)

(-) Sites  (0, 0)

(no "Site" information available for 4MYC)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4MYC)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4MYC)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4MYC)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4MYC)

(-) Exons   (0, 0)

(no "Exon" information available for 4MYC)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:598

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhh.hhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhh.......................eeeeeeee........eeeeeeee....eeeee.....hhhhhhhhhh......eeeeee..ee.hhhhhhhhhhheeee........eehhhhhhhhh...hhhhhhhhhhhh.hhhhhhhh.hhhh.ee.......hhhhhhhhhhhhhhhhh..eeeee......hhhhhhhhhhhhhhhh.....eeeeee.hhhhhh...eeeeee..eeeeeehhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4myc A  98 YIWPKGNNKVRIRVLIALGLLISAKILNVQVPFFFKQTIDSMNIAWDDPTVALPAAIGLTILCYGVARFGSVLFGELRNAVFAKVAQNAIRTVSLQTFQHLMKLDLGWHLSRQTGGLTRAMDRGTKGISQVLTAMVFHIIPISFEISVVCGILTYQFGASFAAITFSTMLLYSIFTIKTTAWRTHFRRDANKADNKAASVALDSLINFEAVKYFNNEKYLADKYNGSLMNYRDSQIKVSQSLAFLNSGQNLIFTTALTAMMYMGCTGVIGGNLTVGDLVLINQLVFQLSVPLNFLGSVYRDLKQSLIDMETLFKLRKNEVKIKNAERPLMLPENVPYDITFENVTFGYHPDRKILKNASFTIPAGWKTAIVGSSGSGKSTILKLVFRFYDPESGRILINGRDIKEYDIDALRKVIGVVPQDTPLFNDTIWENVKFGRIDATDEEVITVVEKAQLAPLIKKLPQGFDTIVGERGLMISGGEKQRLAIARVLLKNARIMFFDEATSALDTHTEQALLRTIRDNFTSGSRTSVYIAHRLRTIADADKIIVLDNGRVREEGKHLELLAMPGSLYRELWTIQEDLDHLENELKDQQELWSHPQ 695
                                   107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687


Chain B from PDB  Type:PROTEIN  Length:598

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhh.hhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh....................eeeeeeee........eeeeeeee....eeeee.....hhhhhhhhhh......eeeeee..ee.hhhhhhhhhhheeee........eehhhhhhhhh...hhhhhhhhhhhh.hhhhhhhh.hhhh.ee.......hhhhhhhhhhhhhhhhh..eeeee......hhhhhhhhhhhhhhhh.....eeeee..hhhhhh...eeeeee..eeeeeehhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4myc B  98 YIWPKGNNKVRIRVLIALGLLISAKILNVQVPFFFKQTIDSMNIAWDDPTVALPAAIGLTILCYGVARFGSVLFGELRNAVFAKVAQNAIRTVSLQTFQHLMKLDLGWHLSRQTGGLTRAMDRGTKGISQVLTAMVFHIIPISFEISVVCGILTYQFGASFAAITFSTMLLYSIFTIKTTAWRTHFRRDANKADNKAASVALDSLINFEAVKYFNNEKYLADKYNGSLMNYRDSQIKVSQSLAFLNSGQNLIFTTALTAMMYMGCTGVIGGNLTVGDLVLINQLVFQLSVPLNFLGSVYRDLKQSLIDMETLFKLRKNEVKIKNAERPLMLPENVPYDITFENVTFGYHPDRKILKNASFTIPAGWKTAIVGSSGSGKSTILKLVFRFYDPESGRILINGRDIKEYDIDALRKVIGVVPQDTPLFNDTIWENVKFGRIDATDEEVITVVEKAQLAPLIKKLPQGFDTIVGERGLMISGGEKQRLAIARVLLKNARIMFFDEATSALDTHTEQALLRTIRDNFTSGSRTSVYIAHRLRTIADADKIIVLDNGRVREEGKHLELLAMPGSLYRELWTIQEDLDHLENELKDQQELWSHPQ 695
                                   107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687


Chain C from PDB  Type:PROTEIN  Length:598

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhhhh....................eeeeeeee........eeeeeeee....eeeee.....hhhhhhhhhh......eeeeee..ee.hhhhhhhhhhheeee........eehhhhhhh.....hhhhhhhhhhhh.hhhhhhhh.hhhh.ee.......hhhhhhhhhhhhhhhhh..eeeee......hhhhhhhhhhhhhhhh.....eeeee..hhhhhh...eeeeee..eeeeeehhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4myc C  98 YIWPKGNNKVRIRVLIALGLLISAKILNVQVPFFFKQTIDSMNIAWDDPTVALPAAIGLTILCYGVARFGSVLFGELRNAVFAKVAQNAIRTVSLQTFQHLMKLDLGWHLSRQTGGLTRAMDRGTKGISQVLTAMVFHIIPISFEISVVCGILTYQFGASFAAITFSTMLLYSIFTIKTTAWRTHFRRDANKADNKAASVALDSLINFEAVKYFNNEKYLADKYNGSLMNYRDSQIKVSQSLAFLNSGQNLIFTTALTAMMYMGCTGVIGGNLTVGDLVLINQLVFQLSVPLNFLGSVYRDLKQSLIDMETLFKLRKNEVKIKNAERPLMLPENVPYDITFENVTFGYHPDRKILKNASFTIPAGWKTAIVGSSGSGKSTILKLVFRFYDPESGRILINGRDIKEYDIDALRKVIGVVPQDTPLFNDTIWENVKFGRIDATDEEVITVVEKAQLAPLIKKLPQGFDTIVGERGLMISGGEKQRLAIARVLLKNARIMFFDEATSALDTHTEQALLRTIRDNFTSGSRTSVYIAHRLRTIADADKIIVLDNGRVREEGKHLELLAMPGSLYRELWTIQEDLDHLENELKDQQELWSHPQ 695
                                   107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457       467       477       487       497       507       517       527       537       547       557       567       577       587       597       607       617       627       637       647       657       667       677       687
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4MYC)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4MYC)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4MYC)

(-) Gene Ontology  (15, 15)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4myc)

  Sites
(no "Sites" information available for 4myc)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4myc)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4myc
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ATM1_YEAST | P40416
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.6.3.44
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ATM1_YEAST | P40416
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ATM1_YEAST | P40416: 4myh

(-) Related Entries Specified in the PDB File

4myh THE SAME PROTEIN WITH GSH
