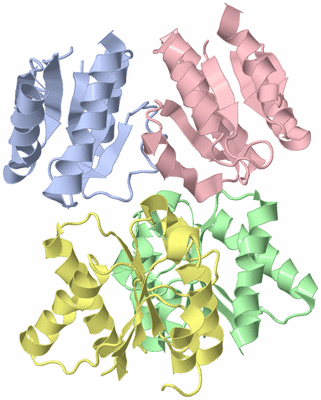

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

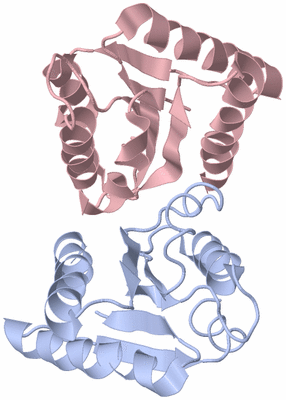

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

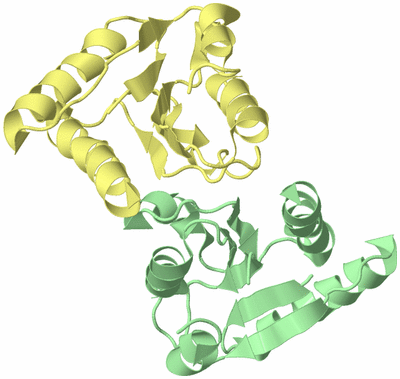

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  X-RAY STRUCTURE OF COME D58A REC DOMAIN FROM STREPTOCOCCUS PNEUMONIAE

Authors :  M. Boudes, D. Sanchez, D. Durand, M. Graille, H. Van Tilbeurgh, S. Quev Cheruel
Date :  06 Sep 13  (Deposition) - 19 Feb 14  (Release) - 18 Jun 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.15
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,C  (1x)
Biol. Unit 2:  B,D  (1x)
Keywords :  Protein Dimer, Rec, Response Regulator, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Boudes, D. Sanchez, M. Graille, H. Van Tilbeurgh, D. Durand, S. Quevillon-Cheruel
Structural Insights Into The Dimerization Of The Response Regulator Come From Streptococcus Pneumoniae.
Nucleic Acids Res. V. 42 5302 2014
PubMed-ID: 24500202  |  Reference-DOI: 10.1093/NAR/GKU110

(-) Compounds

Molecule 1 - RESPONSE REGULATOR
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21-GOLD (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: REC DOMAIN (UNP RESIDUES 1-137)
    Gene: COME, SPR2041
    Mutation: YES
    Organism Scientific: STREPTOCOCCUS PNEUMONIAE
    Organism Taxid: 171101
    Strain: ATCC BAA-255 / R6

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A C
Biological Unit 2 (1x):  B D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4ML3)

(-) Sites  (0, 0)

(no "Site" information available for 4ML3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4ML3)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Asn C:52 -Gln C:53

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ML3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ML3)

(-) Exons   (0, 0)

(no "Exon" information available for 4ML3)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:127

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhhhhhhh....eeeee............eeee........hhhhhhhhhhhhhh.....eeee.................eeee...hhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ml3 A   1 MKVLILEDVIEHQVRLERILDEISKESNIPISYKTTGKVREFEEYIEQLYFLAIDIHGIEKKGFEVAQLIRHYNPYAIIVFITSRSEFATLTYKYQVSALDFVDKDINDEMFKKRIEQNIFYTKSML 132
                                    10        20        30        40      ||55        65        75        85        95       105       115       125
                                                                         47|
                                                                          53


Chain B from PDB  Type:PROTEIN  Length:128

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhhhhhhh....eeeee..hhhhhh.....eeee.........hhhhhhhhhhhhh...eeeeee.hhhhhhhhhhh.....eeee...hhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ml3 B   1 MKVLILEDVIEHQVRLERILDEISKESNIPISYKTTGKVREFEEYIENQLYFLAIDIHGIEKKGFEVAQLIRHYNPYAIIVFITSRSEFATLTYKYQVSALDFVDKDINDEMFKKRIEQNIFYTKSML 132
                                    10        20        30        40      ||54        64        74        84        94       104       114       124
                                                                         47|
                                                                          52


Chain C from PDB  Type:PROTEIN  Length:129

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee..hhhhhhhhhhhhhhhhhhh.....eeee.hhhhhhhhhhh..eeee.........hhhhhhhhhhhhh...eeeeee.hhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ml3 C   1 MKVLILEDVIEHQVRLERILDEISKESNIPISYKTTGKVREFEEYIENNQLYFLAIDIHGIEKKGFEVAQLIRHYNPYAIIVFITSRSEFATLTYKYQVSALDFVDKDINDEMFKKRIEQNIFYTKSML 132
                                    10        20        30        40       |53        63        73        83        93       103       113       123
                                                                          48|
                                                                           52


Chain D from PDB  Type:PROTEIN  Length:131

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee.....hhhhhhhhhhhhhhhh.......ee..hhhhhhh......eeee..hhhhh..hhhhhhhhhhhhh...eeeee..hhhhhh..........eee....hhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ml3 D   1 MKVLILEDVIEHQVRLERILDEISKESNIPISYKTTGKVREFEEYIENDEQLYFLAIDIHGIEKKGFEVAQLIRHYNPYAIIVFITSRSEFATLTYKYQVSALDFVDKDINDEMFKKRIEQNIFYTKSMLL 133
                                    10        20        30        40        50|       62        72        82        92       102       112       122       132
                                                                            50|
                                                                             53
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ML3)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ML3)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ML3)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4ml3)

  Sites
(no "Sites" information available for 4ml3)

  Cis Peptide Bonds
    Asn C:52 - Gln C:53   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

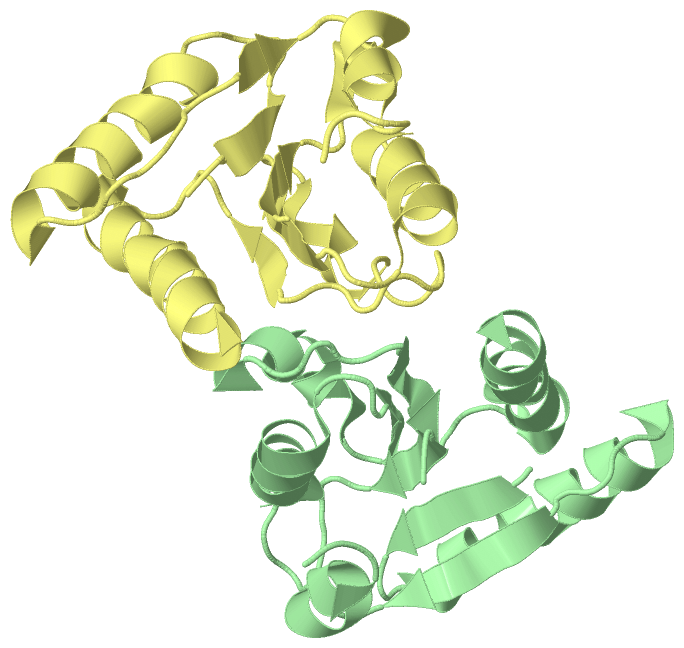

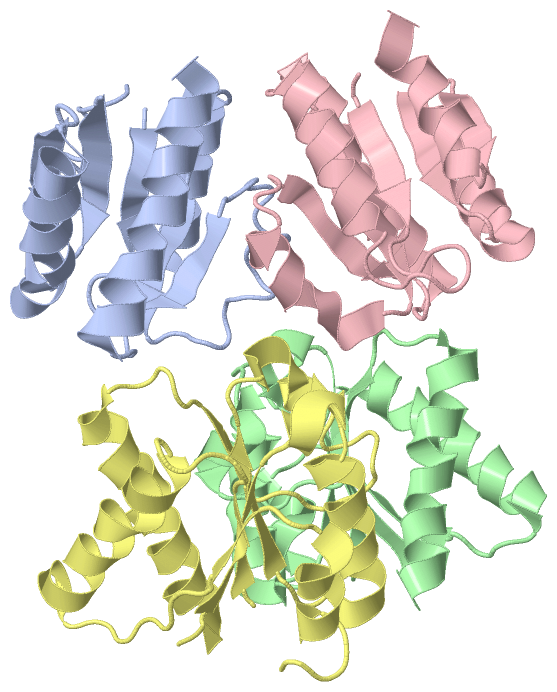

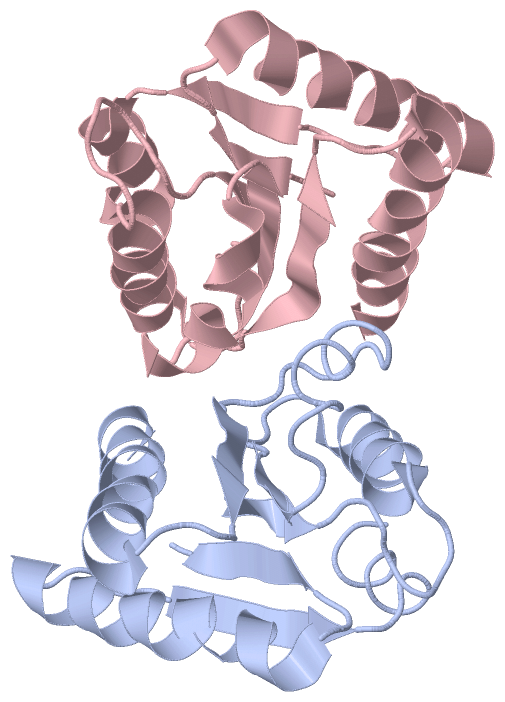

[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4ml3
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q8DMW5_STRR6 | Q8DMW5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q8DMW5_STRR6 | Q8DMW5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q8DMW5_STRR6 | Q8DMW5: 4mld

(-) Related Entries Specified in the PDB File

4b1n FULL LENGHT PROTEIN
4mld
