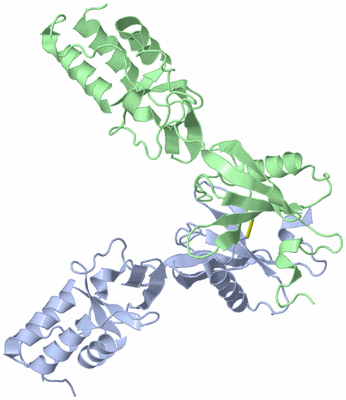

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE RAT USP11 DUSP-UBL DOMAINS

Authors :  S. Harper, H. E. Gratton, I. Cornaciu, M. Oberer, D. J. Scott, J. Emsley,
Date :  27 Aug 13  (Deposition) - 07 May 14  (Release) - 28 May 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.34
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  A (1x),B (1x)
Keywords :  Domain Present In Ubiquitin Specific Proteases (Dusp), Ubiquitin-Like Domain (Ubl), Du Finger, Ubiquitin Thiolesterase, Hydrolase, Deubiquitinating Enzyme (Dub), Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Harper, H. E. Gratton, I. Cornaciu, M. Oberer, D. J. Scott, J. Emsley I. Dreveny
Structure And Catalytic Regulatory Function Of Ubiquitin Specific Protease 11 N-Terminal And Ubiquitin-Like Domains.
Biochemistry V. 53 2966 2014
PubMed-ID: 24724799  |  Reference-DOI: 10.1021/BI500116X

(-) Compounds

Molecule 1 - UBIQUITIN CARBOXYL-TERMINAL HYDROLASE 11
    Chains: A, B
    EC Number: 3.4.19.12
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET26B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: DUSP-UBL DOMAINS, UNP RESIDUES 19-237
    Gene: RCG_42884, USP11
    Organism Common: BROWN RAT,RAT,RATS
    Organism Scientific: RATTUS NORVEGICUS
    Organism Taxid: 10116
    Strain: 10116

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x): A (1x)B (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4MEM)

(-) Sites  (0, 0)

(no "Site" information available for 4MEM)

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:204 -B:204

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Glu A:197 -Gly A:198
2Glu B:197 -Gly B:198

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4MEM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4MEM)

(-) Exons   (0, 0)

(no "Exon" information available for 4MEM)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:212

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh.......eeeeeehhhhhhhhhhhhhh............hhhhh.................eeeeehhhhhhhhhhhh........eeeeeee..eeee....eeeeeee..eeeeeeeeee....hhhhhhhhhhhhh.......eeeeee.....eee.................eeeeee......hhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4mem A  26 AMPDLDQQWRQIGNGRERPLRAGESWFLVEKHWYKQWEAYVKGGDQDASTFPGSINNSGLFEDQISWHLRERLVEGDDYVLLPAPAWNYLVSWYGLKDDQPPIERKVIELPGIRKVEVYPIELLLVQHSDMETALTIQFSYSDSVDLVLQTAREQFLVEPQEDTRLWTKNSEGSLDRLCNTQITLLDACLETGQLVIMETRNKDGTWPSAQL 237
                                    35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235


Chain B from PDB  Type:PROTEIN  Length:216

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhh.......eeeeeehhhhhhhhhhhhhh............hhhhh.................eeeeehhhhhhhhhhhh........eeeeeee..eeeee...eeeeeee..eeeeeeeeee....hhhhhhhhhhhhh.......eeeeee.....eee.................eeeeee......hhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4mem B  27 MPDLDQQWRQIGNGRERPLRAGESWFLVEKHWYKQWEAYVKGGDQDASTFPGSINNSGLFEDQISWHLRERLVEGDDYVLLPAPAWNYLVSWYGLKDDQPPIERKVIELPGIRKVEVYPIELLLVQHSDMETALTIQFSYSDSVDLVLQTAREQFLVEPQEDTRLWTKNSEGSLDRLCNTQITLLDACLETGQLVIMETRNKDGTWPSAQLEHHHH 242
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4MEM)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4MEM)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4MEM)

(-) Gene Ontology  (11, 11)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4mem)

  Sites
(no "Sites" information available for 4mem)

  Cis Peptide Bonds
    Glu A:197 - Gly A:198   [ RasMol ]
    Glu B:197 - Gly B:198   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4mem
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  UBP11_RAT | Q5D006
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.4.19.12
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  UBP11_RAT | Q5D006
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4MEM)

(-) Related Entries Specified in the PDB File

4mel THE SAME DOMAINS FROM HUMAN USP11
