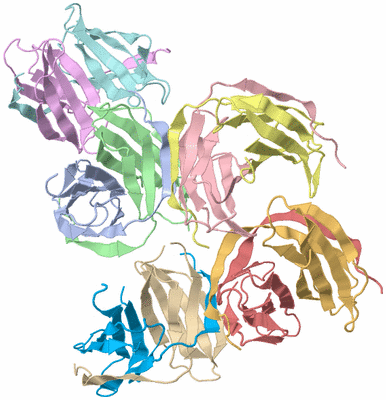

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

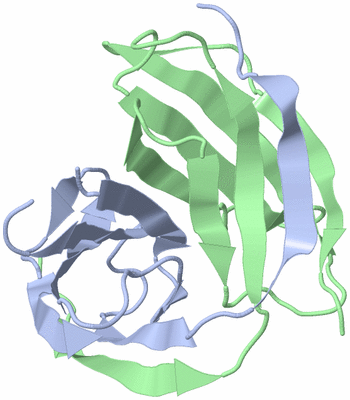

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

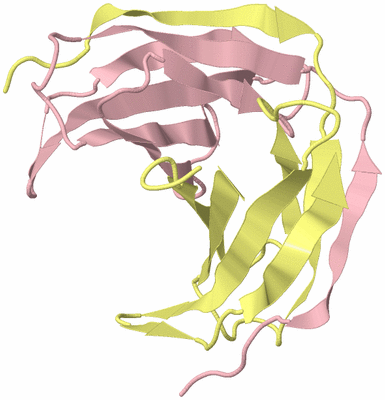

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

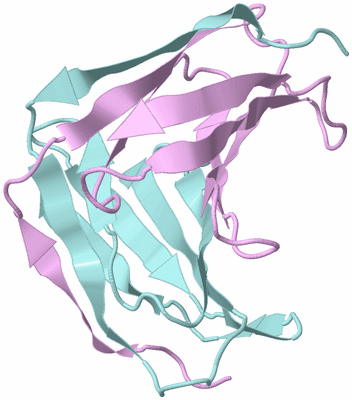

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)
Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

(-) Description

Title :  N-TERMINAL BETA-STRAND SWAPPING IN A CONSENSUS DERIVED ALTERNATIVE SCAFFOLD DRIVEN BY STABILIZING HYDROPHOBIC INTERACTIONS

Authors :  J. Luo, A. Teplyakov, G. Obmolova, T. J. Malia, W. Chan, S. A. Jocobs, K. T G. L. Gilliland
Date :  09 Aug 13  (Deposition) - 26 Feb 14  (Release) - 25 Jun 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.71
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Biol. Unit 5:  I,J  (1x)
Keywords :  Tencon, Fn3-Like Domain, Alternative Scaffold, B-Strand Swapping, De Novo Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Luo, A. Teplyakov, G. Obmolova, T. J. Malia, W. Chan, S. A. Jacobs, K. T. O'Neil, G. L. Gilliland
N-Terminal Beta-Strand Swapping In A Consensus-Derived Alternative Scaffold Driven By Stabilizing Hydrophobic Interactions.
Proteins V. 82 1527 2014
PubMed-ID: 24464739  |  Reference-DOI: 10.1002/PROT.24517

(-) Compounds

Molecule 1 - TENCON
    Chains: A, B, C, D, E, F, G, H, I, J
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET24
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: FN3-LIKE DOMAIN
    Organism Scientific: SYNTHETIC CONSTRUCT
    Organism Taxid: 32630

 Structural Features

(-) Chains, Units

  12345678910
Asymmetric Unit : ABCDEFGHIJ
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x):       GH
Biological Unit 5 (1x):         IJ

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4M6A)

(-) Sites  (0, 0)

(no "Site" information available for 4M6A)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4M6A)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4M6A)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4M6A)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4M6A)

(-) Exons   (0, 0)

(no "Exon" information available for 4M6A)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:87

               SCOP domains --------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeee...eeeeeee.......eeeeeeee.....eeeeee....eeee.......eeeeeeeeee..ee...eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                  4m6a A  2 LPAPKNLVVSEVTEDSLRLSWTAPDAAFDSFLIQYQESEKEAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTT 90
                                    11        21        31        41|       53        63        73        83
                                                                  41|
                                                                   44


Chain B from PDB  Type:PROTEIN  Length:91

               SCOP domains ------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeee...eeeeeee.......eeeeeeee.......eeeeee....eeee.......eeeeeeeeee..ee...eeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------- Transcript
                  4m6a B  2 LPAPKNLVVSEVTEDSLRLSWTAPDAAFDSFLIQYQESEKVGEAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTTGG 92
                                    11        21        31        41        51        61        71        81        91


Chain C from PDB  Type:PROTEIN  Length:90

               SCOP domains ------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeeeee....eeeeeee.......eeeeeeee.......eeeeee....eeee.......eeeeeeeeee..ee...eeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                  4m6a C  1 MLPAPKNLVVSEVTEDSLRLSWTAPDAAFDSFLIQYQESEKVGEAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTT 90
                                    10        20        30        40        50        60        70        80        90


Chain D from PDB  Type:PROTEIN  Length:88

               SCOP domains ---------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeee....eeeeee.......eeeeeeee......eeeeee....eeee.......eeeeeeeeee..ee...eeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                  4m6a D  2 LPAPKNLVVSEVTEDSLRLSWTAPDAAFDSFLIQYQESKVGEAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTT 90
                                    11        21        31       |42        52        62        72        82
                                                                39|
                                                                 41


Chain E from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeee.....eeeeeee.......eeeeeeee.......eeeeee....eeee.......eeeeeeeee........eeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                  4m6a E  2 LPAPKNLVVSEVTEDSLRLSWTAPDAAFDSFLIQYQESEKVGEAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTT 90
                                    11        21        31        41        51        61        71        81


Chain F from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeee...eeeeeee.......eeeeeeee.......eeeeee......eee......eeeeee..ee..ee...eeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                  4m6a F  2 LPAPKNLVVSEVTEDSLRLSWTAPDAAFDSFLIQYQESEKVGEAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTT 90
                                    11        21        31        41        51        61        71        81


Chain G from PDB  Type:PROTEIN  Length:87

               SCOP domains --------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeeeeeeeeeee.......eeeeeeee.....eeeeee....eeee.......eeeeeeeee........eeeeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                  4m6a G  2 LPAPKNLVVSEVTEDSLRLSWTAPDAAFDSFLIQYQESVGEAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTT 90
                                    11        21        31       |43        53        63        73        83
                                                                39|
                                                                 42


Chain H from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeeeeeeeeeee.......eeeeeeee.......eeeeee....eeee........eeeeeeeee..ee...eeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                  4m6a H  2 LPAPKNLVVSEVTEDSLRLSWTAPDAAFDSFLIQYQESEKVGEAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTT 90
                                    11        21        31        41        51        61        71        81


Chain I from PDB  Type:PROTEIN  Length:83

               SCOP domains ----------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeee.....eeeeee......eeeeeeee..eeeeee....eeee.......eeeeeeeeee..ee...eeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------- Transcript
                  4m6a I  2 LPAPKNLVVSEVTEDSLRLSWTAPDAFDSFLIQYQESAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTT 90
                                    11        21    ||  32      ||47        57        67        77        87
                                                   26|         39|
                                                    28          45


Chain J from PDB  Type:PROTEIN  Length:90

               SCOP domains ------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeeeee.....eeeeee.......eeeeeeee......eeeeee....eeee.......eeeeeeeee........eeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------ Transcript
                  4m6a J  2 LPAPKNLVVSEVTEDSLRLSWTAPDAAFDSFLIQYQESEKVEAINLTVPGSERSYDLTGLKPGTEYTVSIYGVKGGHRSNPLSAEFTTGG 92
                                    11        21        31        41||      52        62        72        82        92
                                                                   42|
                                                                    44
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4M6A)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4M6A)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4M6A)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4M6A)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4m6a)

  Sites
(no "Sites" information available for 4m6a)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4m6a)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4m6a
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  (no 'UniProt ID/Accession number' available) |
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4M6A)

(-) Related Entries Specified in the PDB File

3tes
