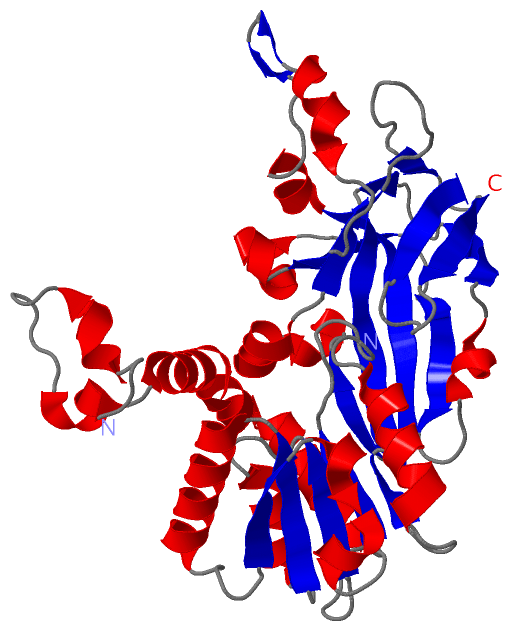

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

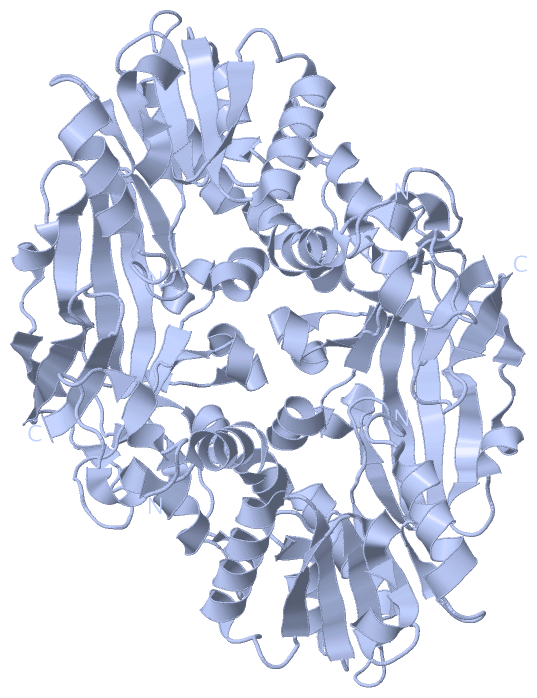

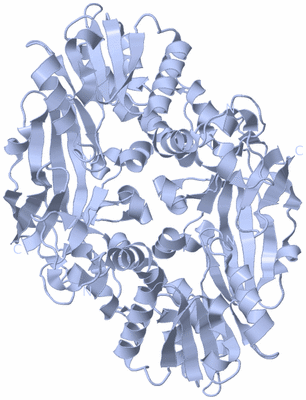

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TRYPANOSOMA BRUCEI PROTEIN ARGININE METHYLTRANSFERASE 7

Authors :  C. Wang, Y. Zhu, Y. Shi
Date :  06 Aug 13  (Deposition) - 23 Apr 14  (Release) - 23 Apr 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.04
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Methyltransferase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Wang, Y. Zhu, T. B. Caceres, L. Liu, J. Peng, J. Wang, J. Chen, X. Chen, Z. Zhang, X. Zuo, Q. Gong, M. Teng, J. M. Hevel, J. Wu, Y. Shi
Structural Determinants For The Strict Monomethylation Activity By Trypanosoma Brucei Protein Arginine Methyltransferase 7
Structure 2014
PubMed-ID: 24726341  |  Reference-DOI: 10.1016/J.STR.2014.03.003

(-) Compounds

Molecule 1 - PROTEIN ARGININE N-METHYLTRANSFERASE 7
    Chains: A
    EC Number: 2.1.1.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 36-378
    Gene: PRMT7, TB927.7.5490
    Organism Scientific: TRYPANOSOMA BRUCEI BRUCEI
    Organism Taxid: 999953
    Strain: 927/4 GUTAT10.1
    Synonym: TBPRMT7

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4M36)

(-) Sites  (0, 0)

(no "Site" information available for 4M36)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4M36)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ile A:202 -Pro A:203

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4M36)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4M36)

(-) Exons   (0, 0)

(no "Exon" information available for 4M36)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:337

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhh......hhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......eeeee....hhhhhhhhhh...eeeeee.hhhhhhhhhhhhhhh.....eeeee.hhhhhhhhhh.....eeee..........hhhhhhhhhhhhh.....eee..eeeeeeeeeehhhhhh.....ee..ee.hhhhhhh.....ee.hhhh.hhhhh..ee....eeeeeee....hhhhh..eeeeeee....eee.eeeeeeeeee..eeee.hhhhh..hhhhhhhh..eeee...........eee....eeeeeeee......eeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4m36 A  38 RPPDAFVNRIDRNIPVPARLRHTPVSLIEAVNDFHYAMMNDEERNNFYYEVLKKHVTPETGVLEIGAGSGLLSLMAAKLGAKWVVAVEGSEELAKLARENIRANNMEHQVKVLHMMSTELKSKHLPEPPDVLLSEIFGTMMLGESALDYVVDVRNRLLKPTTKIIPQFGTQYAVPIECDALHRISSVSGWRDLDLKHMMTLQDTVSIVFAKHYGIRMNSVNFRRLSDPIELFRVDFSSSNRNDIPRRKHFDVVAKESGTAHAMLFYWKVTDDEFVMSTDPEDTVNNFPRDMQWGQALQLLDASNGPLPTPVVFTEGKNYNFECNFSGDRVILHMQLC 374
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4M36)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4M36)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4M36)

(-) Gene Ontology  (18, 18)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4m36)

  Sites
(no "Sites" information available for 4m36)

  Cis Peptide Bonds
    Ile A:202 - Pro A:203   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4m36
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ANM7_TRYB2 | Q582G4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.1.1.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ANM7_TRYB2 | Q582G4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ANM7_TRYB2 | Q582G4: 4m37 4m38

(-) Related Entries Specified in the PDB File

4m37 4m38
