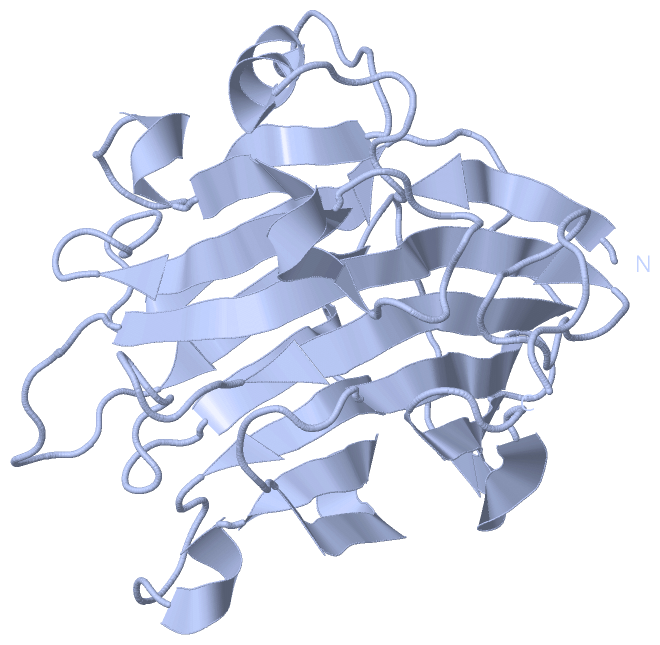

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A GH131 BETA-GLUCANASE CATALYTIC DOMAIN FROM PODOSPORA ANSERINA

Authors :  T. Jiang, H. C. Chan, C. H. Huang, T. P. Ko, T. Y. Huang, J. R. Liu, R. T. Guo
Date :  25 Jun 13  (Deposition) - 11 Sep 13  (Release) - 11 Sep 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Glucanase, Gh131, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Jiang, H. C. Chan, C. H. Huang, T. P. Ko, T. Y. Huang, J. R. Liu, R. T. Guo
Structures Of A Gh131 Beta-Glucanase Catalytic Domain From Podospora Anserina In Complex With Cellotriose
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - BETA-GLUCANASE
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET32 XA/LLC
    Expression System Strain: BL21TRXB(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 19-270
    Organism Scientific: PODOSPORA ANSERINA
    Organism Taxid: 5145

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4LE3)

(-) Sites  (0, 0)

(no "Site" information available for 4LE3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4LE3)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ala D:153 -Pro D:154

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4LE3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4LE3)

(-) Exons   (0, 0)

(no "Exon" information available for 4LE3)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:249

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.......hhhhhhhh........eeeee....hhhh.eeeehhhh.........eeeeee...........eeeeeee.........eeeeeeeee............eeeeee....eeeee.......hhhh.eeeeee..eeeeeee......eeeeeeee....eeeeeeee.....eeeeeeee.........eeeeeee..........eeeeeeeeeeee................ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4le3 A  19 GTILWDGRFNDMTSSADLNKWSWGNQVGPYQYYIHGSSPVSAYVNLSPDYKNPADTGSRQGAKITLDNTAYWNGQNMRRTELIPQTTAAINQGKVYYHFSLMRKDINAPATTREHQIAFFESHFTELKSGWLSGAPGISDTLLRWCVGGQTQWSVEWAADVWHNVAYEIDFAAGTVGFWHSTGSDPLTRKVAPVKTSTSSNGADWHVGVLELPRSGYPDSNEDFYWSGVYIESGSLTTSVAGPGQPIPG 267
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258


Chain B from PDB  Type:PROTEIN  Length:245

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.......hhhhhhhh........eeeee....hhhh.eeeehhhh.........eeeeee...........eeeeeee.........eeeeeeeee............eeeeee....eeeee............eeeeee..eeeeeee......eeeeeeee....eeeeeeee.....eeeeeeee.........eeeeeee..........eeeeeeeeeeee............ Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4le3 B  19 GTILWDGRFNDMTSSADLNKWSWGNQVGPYQYYIHGSSPVSAYVNLSPDYKNPADTGSRQGAKITLDNTAYWNGQNMRRTELIPQTTAAINQGKVYYHFSLMRKDINAPATTREHQIAFFESHFTELKSGWLSGAPGISDTLLRWCVGGQTQWSVEWAADVWHNVAYEIDFAAGTVGFWHSTGSDPLTRKVAPVKTSTSSNGADWHVGVLELPRSGYPDSNEDFYWSGVYIESGSLTTSVAGPGQ 263
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258


Chain C from PDB  Type:PROTEIN  Length:242

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.......hhhhhhhh........eeeee....hhhh.eeeehhhh.........eeeeee...........eeeeeee.........eeeeeeeee............eeeeee....eeeee............eeeeee..eeeeeee......eeeeeeee....eeeeeeee.....eeeeeeee.........eeeeeee..........eeeeeeeeeeee......... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4le3 C  19 GTILWDGRFNDMTSSADLNKWSWGNQVGPYQYYIHGSSPVSAYVNLSPDYKNPADTGSRQGAKITLDNTAYWNGQNMRRTELIPQTTAAINQGKVYYHFSLMRKDINAPATTREHQIAFFESHFTELKSGWLSGAPGISDTLLRWCVGGQTQWSVEWAADVWHNVAYEIDFAAGTVGFWHSTGSDPLTRKVAPVKTSTSSNGADWHVGVLELPRSGYPDSNEDFYWSGVYIESGSLTTSVAG 260
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258


Chain D from PDB  Type:PROTEIN  Length:247

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee.......hhhhhhhh........eeeee....hhhh.eeeehhhh.........eeeeee...........eeeeeee.........eeeeeeeee............eeeeee....eeeee............eeeeee..eeeeeee......eeeeeeee....eeeeeeee.....eeeeeeee.........eeeeeee..........eeeeeeeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4le3 D  19 GTILWDGRFNDMTSSADLNKWSWGNQVGPYQYYIHGSSPVSAYVNLSPDYKNPADTGSRQGAKITLDNTAYWNGQNMRRTELIPQTTAAINQGKVYYHFSLMRKDINAPATTREHQIAFFESHFTELKSGWLSGAPGISDTLLRWCVGGQTQWSVEWAADVWHNVAYEIDFAAGTVGFWHSTGSDPLTRKVAPVKTSTSSNGADWHVGVLELPRSGYPDSNEDFYWSGVYIESGSLTTSVAGPGQPI 265
                                    28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4LE3)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4LE3)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4LE3)

(-) Gene Ontology  (4, 4)
