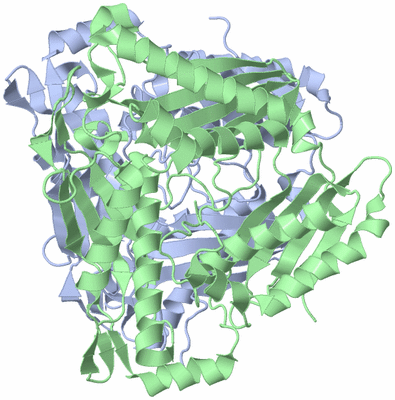

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  METHIONINE ADENOSYLTRANSFERASE

Authors :  J. Schlesier, J. Siegrist, S. Gerhardt, J. N. Andexer, O. Einsle
Date :  09 Jun 13  (Deposition) - 19 Mar 14  (Release) - 19 Mar 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  A,B  (1x)
Biol. Unit 3:  C,D  (1x)
Keywords :  Transferase, Cytoplasmic (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Schlesier, J. Siegrist, S. Gerhardt, A. Erb, S. Blaesi, M. Richter, O. Einsle, J. N. Andexer
Structural And Functional Characterisation Of The Methionin Adenosyltransferase From Thermococcus Kodakarensis.
Bmc Struct. Biol. V. 13 22 2013
PubMed-ID: 24134203  |  Reference-DOI: 10.1186/1472-6807-13-22

(-) Compounds

Molecule 1 - S-ADENOSYLMETHIONINE SYNTHASE
    Chains: A, B, C, D
    EC Number: 2.5.1.6
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)-CODONPLUS-RP
    Expression System Taxid: 562
    Expression System Vector Type: PET
    Gene: MAT, METK, TK0545
    Organism Scientific: THERMOCOCCUS KODAKARENSIS
    Organism Taxid: 311400
    Synonym: ADOMET SYNTHASE, METHIONINE ADENOSYLTRANSFERASE

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x): AB
Biological Unit 3 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4L4Q)

(-) Sites  (0, 0)

(no "Site" information available for 4L4Q)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4L4Q)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Ala A:170 -Pro A:171
2Ala B:170 -Pro B:171
3Ala C:170 -Pro C:171
4Ala D:170 -Pro D:171

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4L4Q)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4L4Q)

(-) Exons   (0, 0)

(no "Exon" information available for 4L4Q)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:402

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee....hhhhh.eeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeee..eee......eeee.eeeeeeeeeeeee..ee.hhhhhhhhhhhhhhhhhh........eeeee..eeeeehhhhhhhhhhhh.........eeeeee..hhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeee..eeeeeeeeeee.hhh.hhhhhhhhhhhhhhhhhhhhhhhh...eeeee............ee...hhhhhh..ee.............................hhhhhhhhhhhhhhhhhhhhh..eeeeeeeee...........eeeeeeee....hhhhhhhhhhhhhhhhhhh.hhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4l4q A   4 KVRNIVVEELVRTPVEMQKVELVERKGIGHPDSIADGIAEAVSRALSREYVKRYGIILHHNTDQVEVVGGRAYPQFGGGEVIKPIYILLSGRAVEMVDREFFPVHEIALKAAKDYLRKAVRHLDLEHHVIIDSRIGQGSVDLVGVFNKAKKNPIPLANDTSFGVGYAPLSETEKIVLETEKYLNSDEFKKKYPAVGEDIKVMGLRKGDEIDLTIAAAIVDSEVDNPDDYMAVKEAIYEAAKGIVESHTERPTNIYVNTADDPKEGIYYITVTGTSAEAGDDGSVGRGNRVNGLITPNRHMSMEAAAGKNPVSHVGKIYNILSMLIANDIAEQVEGVEEVYVRILSQIGKPIDEPLVASVQIIPKKGYSIDVLQKPAYEIADEWLANITKIQKMILEDKVNVF 405
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403


Chain B from PDB  Type:PROTEIN  Length:401

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee....hhhhh.eeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeeee..eee......eeee.eeeeeeee...ee..ee.hhhhhhhhhhhhhhhhhh........eeeee.....eehhhhhhhhhhhh.........eeeeee..hhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeee..eeeeeeeeeee.hhh.hhhhhhhhhhhhhhhhhhhhhhhh...eeeee....hhhhh...ee...hhhhh...ee.............................hhhhhhhhhhhhhhhhhhhhh..eeeeeeeee...........eeeeeeee....hhhhhhhhhhhhhhhhhhh.hhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4l4q B   5 VRNIVVEELVRTPVEMQKVELVERKGIGHPDSIADGIAEAVSRALSREYVKRYGIILHHNTDQVEVVGGRAYPQFGGGEVIKPIYILLSGRAVEMVDREFFPVHEIALKAAKDYLRKAVRHLDLEHHVIIDSRIGQGSVDLVGVFNKAKKNPIPLANDTSFGVGYAPLSETEKIVLETEKYLNSDEFKKKYPAVGEDIKVMGLRKGDEIDLTIAAAIVDSEVDNPDDYMAVKEAIYEAAKGIVESHTERPTNIYVNTADDPKEGIYYITVTGTSAEAGDDGSVGRGNRVNGLITPNRHMSMEAAAGKNPVSHVGKIYNILSMLIANDIAEQVEGVEEVYVRILSQIGKPIDEPLVASVQIIPKKGYSIDVLQKPAYEIADEWLANITKIQKMILEDKVNVF 405
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404


Chain C from PDB  Type:PROTEIN  Length:402

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee....hhhhh.eeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeee..eee......eeee.eeeeeeeee..ee..ee.hhhhhhhhhhhhhhhhhh........eeeee.....eehhhhhhhhhhhh.........eeeeee..hhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeee..eeeeeeeeeee.hhh.hhhhhhhhhhhhhhhhhhhhhh.....eeeee....hhhhh...ee...hhhhh...ee.............................hhhhhhhhhhhhhhhhhhhhh..eeeeeeeee...........eeeeeeee....hhhhhhhhhhhhhhhhhhh.hhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4l4q C   4 KVRNIVVEELVRTPVEMQKVELVERKGIGHPDSIADGIAEAVSRALSREYVKRYGIILHHNTDQVEVVGGRAYPQFGGGEVIKPIYILLSGRAVEMVDREFFPVHEIALKAAKDYLRKAVRHLDLEHHVIIDSRIGQGSVDLVGVFNKAKKNPIPLANDTSFGVGYAPLSETEKIVLETEKYLNSDEFKKKYPAVGEDIKVMGLRKGDEIDLTIAAAIVDSEVDNPDDYMAVKEAIYEAAKGIVESHTERPTNIYVNTADDPKEGIYYITVTGTSAEAGDDGSVGRGNRVNGLITPNRHMSMEAAAGKNPVSHVGKIYNILSMLIANDIAEQVEGVEEVYVRILSQIGKPIDEPLVASVQIIPKKGYSIDVLQKPAYEIADEWLANITKIQKMILEDKVNVF 405
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403


Chain D from PDB  Type:PROTEIN  Length:402

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeee....hhhhh.eeeeeee...hhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeee..eee......eeee.eeeeeeeeeeeee..ee.hhhhhhhhhhhhhhhhhh........eeeee..eeeeehhhhhhhhhhhh.........eeeeee..hhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeee..eeeeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhh...eeeee....hhhhh...ee...hhhhhh..ee.............................hhhhhhhhhhhhhhhhhhhhh..eeeeeeeee...........eeeeeeee....hhhhhhhhhhhhhhhhhhh.hhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4l4q D   4 KVRNIVVEELVRTPVEMQKVELVERKGIGHPDSIADGIAEAVSRALSREYVKRYGIILHHNTDQVEVVGGRAYPQFGGGEVIKPIYILLSGRAVEMVDREFFPVHEIALKAAKDYLRKAVRHLDLEHHVIIDSRIGQGSVDLVGVFNKAKKNPIPLANDTSFGVGYAPLSETEKIVLETEKYLNSDEFKKKYPAVGEDIKVMGLRKGDEIDLTIAAAIVDSEVDNPDDYMAVKEAIYEAAKGIVESHTERPTNIYVNTADDPKEGIYYITVTGTSAEAGDDGSVGRGNRVNGLITPNRHMSMEAAAGKNPVSHVGKIYNILSMLIANDIAEQVEGVEEVYVRILSQIGKPIDEPLVASVQIIPKKGYSIDVLQKPAYEIADEWLANITKIQKMILEDKVNVF 405
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4L4Q)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4L4Q)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4L4Q)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4l4q)

  Sites
(no "Sites" information available for 4l4q)

  Cis Peptide Bonds
    Ala A:170 - Pro A:171   [ RasMol ]
    Ala B:170 - Pro B:171   [ RasMol ]
    Ala C:170 - Pro C:171   [ RasMol ]
    Ala D:170 - Pro D:171   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
