(-) Description

Title :  NUP188(AA1-1160) FROM MYCELIOPHTHORA THERMOPHILA

Authors :  T. U. Schwartz, K. R. Andersen
Date :  26 Apr 13  (Deposition) - 19 Jun 13  (Release) - 14 Aug 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.65
Chains :  Asym./Biol. Unit :  A
Keywords :  Nucleoporin, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. R. Andersen, E. Onischenko, J. H. Tang, P. Kumar, J. Z. Chen, A. Ulrich, J. T. Liphardt, K. Weis, T. U. Schwartz
Scaffold Nucleoporins Nup188 And Nup192 Share Structural An Functional Properties With Nuclear Transport Receptors.
Elife V. 2 00745 2013
PubMed-ID: 23795296  |  Reference-DOI: 10.7554/ELIFE.00745

(-) Compounds

Molecule 1 - NUP188
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: N-TERMINAL DOMAIN (UNP RESIDUES 1-1160)
    Gene: MYCTH_2303581
    Organism Scientific: MYCELIOPHTHORA THERMOPHILA
    Organism Taxid: 78579

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4KF7)

(-) Sites  (0, 0)

(no "Site" information available for 4KF7)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4KF7)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Phe A:600 -Pro A:601

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4KF7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4KF7)

(-) Exons   (0, 0)

(no "Exon" information available for 4KF7)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:1096

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhh.....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhh.......hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh...hhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhh.....hhhhhhhhhhhhh..hhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh..hhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhh..hhhhhhhhhhhhhh...eeee.hhhhh..ee.........eeee...ee.eee......ee....eeee......eeee....hhhhhhhhhhhhhhh...eee.....hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh........hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh..........hhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhh.......hhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.hhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4kf7 A    1 MATLTDRSYFPPLGECLSGNKIILSWRLVATALEDLACDRLRSAAVSAFLRDGYVHQLLREPTKTFAPPTNETKLDFETKTGAIDPYNLDTIKDDARWLSRNVNINEVAALRVVIIEYQSRAHSHLTGPLSTQDVANVQEAAGVGDAQASAIVALLNVTTVADADSAWADFESETTRRRRLLATYLSERRSFLAAVDALLAFLLHSRAPGTGVELDPLRNAVLQGAFGFDQNAAKPDTTQLDALAPTYIRTLEGCFDRMQMAPESLDNQMLTEQFEVDWIRTALTEAIHAMSLIFQILDLKASQFAAPALVTQWFALMDTCEFFEPVPRGHELIAELLMPLHSLVAAISLKLLNVDRTLSYLDQDVDLLEEEEPYLASSDNLAQMHTTIAAAASAGLISTMPVVFAWSLILHQMHVGYQERAERRDLLQNQRAQAGFELGSIVSIEASSYDVFLVSQQLERNIEPAENMARIATGRGQVYELMADMAVCLGSGQLAAFRPVLGARARLTFQDLLKRSAHYVGYQAEPVSCLLSILSGGSQYWDISAEAPSNEKSALDIYTRMLSDDTLNVQYASQSRNRFPYEFLPFASMCRILSAALVSDNESSELITGLLVKNPSLTLNWDPRWDRSYELVFEEENTNSFRLTKDIDLFDAAPEEKCTISRGTFGRFVTDVGRVAKLEFEHSTLALFGKRLEVNLMAGAYDTALGYLSADELIEGISLLATVLRAETLRSSKTDPDRGLRILTEASRLLSRGRDIMNVVCDTLDSLVEEELADLDGPKTAALSSCLQFLHAALPVCPGRVWAYMARCPLINTDTRSGRLSRITANLDMLAERYDLLLSAVKLFSSLVDSAKTSAVPWIGASDKIVSRVTLSIAQTSVDVFENSATWRFPSEVDRSVMIRDVVGIMHKLMLYTHSVLTGPLAPAADYVVESFLSSSSSSLRFQPLLATLLAAFQLPDTTIYQRRAQIVSERLTTVLEFATILLRVADYLNKASAGIQTQLFKSACVIARLPAIRHSFRIPAISLLSALVESAGKSSGEPPSLLGYLGPQVSRSFIQIAAQLDKPFDRVAEVASTWRFFSTILRNRQQWMANCLLT 1149
                                    10        20        30        40        50        60        70        80   ||   97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670   ||  688       698       708       718       728       738       748       758       768       778       788       798       808       818       828       838       848       858       868       878      |905       915       925       935       945       955      |973       983       993      1003      1013      1023      1033      1043      1053      1063      1073      1083      1093      1103      1113      1123      1133      1143
                                                                                                              84|                                                                                                                                                                                                                                                                                                                                                               446|                                                                                                                                                                                                                   674|                                                                                                                                                                                                       885|                                                        962|
                                                                                                               92                                                                                                                                                                                                                                                                                                                                                                460                                                                                                                                                                                                                    683                                                                                                                                                                                                        903                                                         971
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4KF7)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4KF7)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4KF7)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4kf7)

  Sites
(no "Sites" information available for 4kf7)

  Cis Peptide Bonds
    Phe A:600 - Pro A:601   [ RasMol ]


(-) Still Images

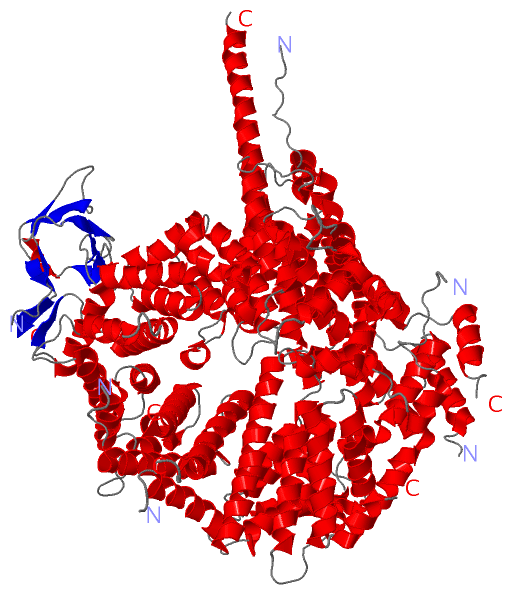

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4kf7
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  G2QD05_MYCTT | G2QD05
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  G2QD05_MYCTT | G2QD05
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        G2QD05_MYCTT | G2QD05: 4kf8

(-) Related Entries Specified in the PDB File

4kf8
