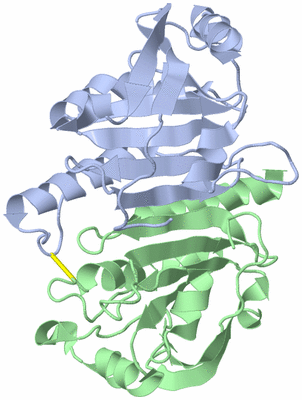

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE MITOCHONDRIAL PEROXIREDOXIN FROM LEISHMANIA BRAZILIENSIS IN THE DIMERIC FORM

Authors :  T. A. C. B. Souza, M. A. B. Morais, P. O. Giuseppe, M. T. Murakami
Date :  24 Apr 13  (Deposition) - 14 May 14  (Release) - 14 May 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.79
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Thioredoxin-Like, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. A. C. B. Souza, M. A. B. Morais, P. O. Giuseppe, M. T. Murakami
Crystal Structure Of The Mitochondrial Peroxiredoxin From Leishmania Braziliensis In The Dimeric Form
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PEROXIDOXIN
    Chains: A, B
    EC Number: 1.11.1.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 34-225
    Gene: LBRM_23_0050
    Organism Scientific: LEISHMANIA BRAZILIENSIS
    Organism Taxid: 5660

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4KCE)

(-) Sites  (0, 0)

(no "Site" information available for 4KCE)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:204 -B:81

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4KCE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4KCE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4KCE)

(-) Exons   (0, 0)

(no "Exon" information available for 4KCE)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:168

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..........eeeeee..eeeeee.hhhh..eeeeeee....hhhhhhhhhhhhhhhhh.eeeeeee..hhhhhhhhhh.hhhhh........eee...hhhhhhh...........eeeeee.....eeeeeee......hhhhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4kce A  36 ATVRDPAPQFSGKAVVDGAIKEINSNDYKGKYIVLFFYPMVCPTEIIAFSDRYLEFEKLNTQVIAVSCDSEYSHLAWVNTPRKKGGLGEMKIPVLADKSMEIARDYGVLIESAGIALRGLFVIDKKGTLRHSTINDLPVGRNVDEVLRVVEAFQYADENGDAIPCGWT 207
                                    45        55        65        75|       89        99       109       119       129       139       149       159       169       179       189       199
                                                                  75|
                                                                   80


Chain B from PDB  Type:PROTEIN  Length:163

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeee..eeeeee.hhhh..eeeeee.........hhhhhhhhhhhhhhhhh.eeeeeee..hhhhhhhhhh.hhhhh........eee...hhhhhhh...........eeeeee.....eeeeeee......hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4kce B  36 ATVRDPAPQFSGKAVVDGAIKEINSNDYKGKYIVLFFYPMDFTFVCPTEIIAFSDRYLEFEKLNTQVIAVSCDSEYSHLAWVNTPRKKGGLGEMKIPVLADKSMEIARDYGVLIESAGIALRGLFVIDKKGTLRHSTINDLPVGRNVDEVLRVVEAFQYADEN 198
                                    45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4KCE)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4KCE)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4KCE)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4kce)

  Sites
(no "Sites" information available for 4kce)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4kce)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
