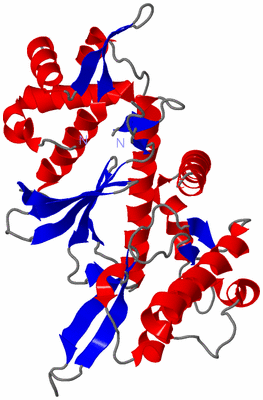

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE RIO2 KINASE FROM CHAETOMIUM THERMOPHILUM

Authors :  S. Ferreira-Cerca, V. Sagar, T. Schafer, M. Diop, A. M. Wesseling, H. Lu E. Hurt, N. Laronde-Leblanc
Date :  05 Sep 12  (Deposition) - 17 Oct 12  (Release) - 26 Dec 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.48
Chains :  Asym./Biol. Unit :  A
Keywords :  Rio-Type Ser/Thr Protein Kinase, Ribosome Biogenesis Factor, Pre-40S Maturation, Ribosomal Rna Processing, Pre-40S, Ribosomal Rna, Phosphorylation, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Ferreira-Cerca, V. Sagar, T. Schafer, M. Diop, A. M. Wesseling, H. Lu, E. Chai, E. Hurt, N. Laronde-Leblanc
Atpase-Dependent Role Of The Atypical Kinase Rio2 On The Evolving Pre-40S Ribosomal Subunit.
Nat. Struct. Mol. Biol. V. 19 1316 2012
PubMed-ID: 23104056  |  Reference-DOI: 10.1038/NSMB.2403

(-) Compounds

Molecule 1 - RIO2 KINASE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PT7
    Expression System Strain: ROSETTA(TM) PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: CTHT_0033330, RIO2
    Organism Scientific: CHAETOMIUM THERMOPHILUM
    Organism Taxid: 759272
    Strain: DSM 1495 / CBS 144.50 / IMI 039719

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4GYG)

(-) Sites  (0, 0)

(no "Site" information available for 4GYG)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4GYG)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Gly A:296 -Pro A:297
2Val A:306 -Gly A:307

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4GYG)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4GYG)

(-) Exons   (0, 0)

(no "Exon" information available for 4GYG)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:331

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhh......hhhhhhhh.hhhhhhhhhhh..eeeee....eeeeehhhhhhhhhhhhhhhh....eeeeeeee...eeeeeee.....eeeeeee...ee.......ee....hhhhhhhhhhhhhhhhhhhhhhhhhh......eeeee..eeeee....ee.hhh....hhhhhhhhhhhhhhhhhhh.ee........eeeeeee.......eeeeeee......ee....hhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhh......hhhhhhhhhh.hhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4gyg A   2 KLDTRAMRHLTAEDWRVLTAVEMGSKNHEIVPTPLIEKIGVHKSIATLAKAGLIARMKEAKYDGYRLTYGGLDYLALHTHAARKDVYSVGSRIGVGKESDIMIVADEKGKQKVLKIHRLGRISFRTVKRDYLRNRSTGSWMYLSRLAAIKEFAFMKALYEEGFPVPEPIAQSRHTIVMSLVDALPMRQVSSVPDPASLYADLIALILRLAKHGLIHGDFNEFNILIREEKDAEDPSSITLTPIIIDFPQMVSMDHPNAEMYFDRDVQCIKRFFERRFHFVSTTPGPFYKDAKKTVGKDGAKRLDAALEASGFTKKMAKDLEAAIREQQESR 342
                                    11        21        31        49        59        69        79        89        99       109       119       129       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341
                                                                 40|                                                                                     137|
                                                                  49                                                                                      140
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4GYG)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4GYG)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4GYG)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4gyg)

  Sites
(no "Sites" information available for 4gyg)

  Cis Peptide Bonds
    Gly A:296 - Pro A:297   [ RasMol ]
    Val A:306 - Gly A:307   [ RasMol ]


(-) Still Images

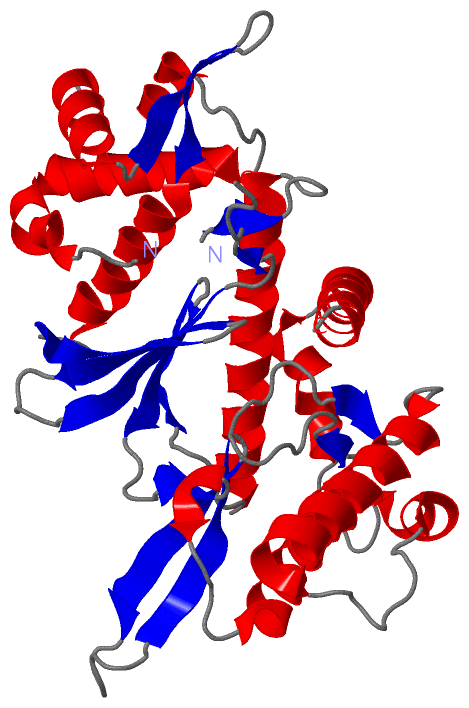

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4gyg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  G0S5R3_CHATD | G0S5R3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  G0S5R3_CHATD | G0S5R3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        G0S5R3_CHATD | G0S5R3: 4gyi

(-) Related Entries Specified in the PDB File

4gyi CRYSTAL STRUCTURE OF THE RIO2 KINASE-ADP/MG2+- PHOSPHOASPARTATE COMPLEX FROM CHAETOMIUM THERMOPHILUM
