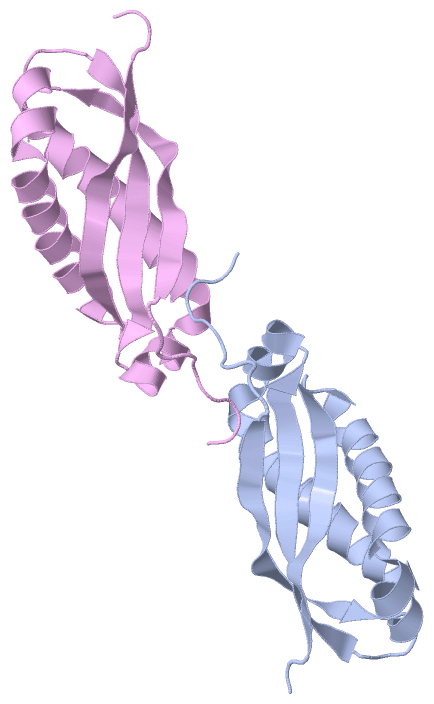

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  SPFH DOMAIN OF THE MOUSE STOMATIN (CRYSTAL FORM 2)

Authors :  J. Brand, D. Schwefel, O. Daumke
Date :  29 Jun 12  (Deposition) - 15 Aug 12  (Release) - 31 Oct 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.69
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,E  (1x)
Biol. Unit 2:  B,F  (1x)
Biol. Unit 3:  C,H  (1x)
Biol. Unit 4:  D,G  (1x)
Keywords :  Mixed Alpha-Beta Fold, Membrane Scaffold, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Brand, E. S. Smith, D. Schwefel, L. Lapatsina, K. Poole, D. Omerbasic, A. Kozlenkov, J. Behlke, G. R. Lewin, O. Daumke
A Stomatin Dimer Modulates The Activity Of Acid-Sensing Ion Channels.
Embo J. V. 31 3635 2012
PubMed-ID: 22850675  |  Reference-DOI: 10.1038/EMBOJ.2012.203

(-) Compounds

Molecule 1 - STOMATIN
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEX6P1
    Expression System Strain: BL21DE3 PHAGE RESISTANT ROSETTA
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: EPB7.2, EPB72, STOM, STOMATIN
    Mutation: YES
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: PROTEIN 7.2B, ERYTHROCYTE BAND 7 INTEGRAL MEMBRANE PROTEIN

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): A   E
Biological Unit 2 (1x):  B   F
Biological Unit 3 (1x):   C    H
Biological Unit 4 (1x):    D  G

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4FVJ)

(-) Sites  (0, 0)

(no "Site" information available for 4FVJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4FVJ)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Gln B:202 -Leu B:203

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4FVJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4FVJ)

(-) Exons   (0, 0)

(no "Exon" information available for 4FVJ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:113

               SCOP domains ----------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeeeeeee.....eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------- Transcript
                 4fvj A  89 DSLIKVDMRTISFDIPPQEVLTKDSVTISVDGVVYYRVQNATLAVANITNADSATRLLAQTTLRNALGTKNLSQILSDREEIAHHMQSTLDDATDDWGIKVERVEIKDVKLPV 201
                                    98       108       118       128       138       148       158       168       178       188       198


Chain B from PDB  Type:PROTEIN  Length:114

               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........eeeeeeeeeee.....eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4fvj B  90 SLIKVDMRTISFDIPPQEVLTKDSVTISVDGVVYYRVQNATLAVANITNADSATRLLAQTTLRNALGTKNLSQILSDREEIAHHMQSTLDDATDDWGIKVERVEIKDVKLPVQL 203
                                    99       109       119       129       139       149       159       169       179       189       199


Chain C from PDB  Type:PROTEIN  Length:112

               SCOP domains ---------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeeeeeee.....eeeeeeeeeeee.hhhhhhh...hhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------- Transcript
                 4fvj C  90 SLIKVDMRTISFDIPPQEVLTKDSVTISVDGVVYYRVQNATLAVANITNADSATRLLAQTTLRNALGTKNLSQILSDREEIAHHMQSTLDDATDDWGIKVERVEIKDVKLPV 201
                                    99       109       119       129       139       149       159       169       179       189       199


Chain D from PDB  Type:PROTEIN  Length:112

               SCOP domains ---------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeeeeeee.....eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------- Transcript
                 4fvj D  89 DSLIKVDMRTISFDIPPQEVLTKDSVTISVDGVVYYRVQNATLAVANITNADSATRLLAQTTLRNALGTKNLSQILSDREEIAHHMQSTLDDATDDWGIKVERVEIKDVKLP 200
                                    98       108       118       128       138       148       158       168       178       188       198


Chain E from PDB  Type:PROTEIN  Length:113

               SCOP domains ----------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeeeeeee.....eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------- Transcript
                 4fvj E  90 SLIKVDMRTISFDIPPQEVLTKDSVTISVDGVVYYRVQNATLAVANITNADSATRLLAQTTLRNALGTKNLSQILSDREEIAHHMQSTLDDATDDWGIKVERVEIKDVKLPVQ 202
                                    99       109       119       129       139       149       159       169       179       189       199


Chain F from PDB  Type:PROTEIN  Length:113

               SCOP domains ----------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeeeeeee.....eeeeeeeeeeee.hhhhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------- Transcript
                 4fvj F  89 DSLIKVDMRTISFDIPPQEVLTKDSVTISVDGVVYYRVQNATLAVANITNADSATRLLAQTTLRNALGTKNLSQILSDREEIAHHMQSTLDDATDDWGIKVERVEIKDVKLPV 201
                                    98       108       118       128       138       148       158       168       178       188       198


Chain G from PDB  Type:PROTEIN  Length:113

               SCOP domains ----------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeeeeeeeeee.....eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------- Transcript
                 4fvj G  89 DSLIKVDMRTISFDIPPQEVLTKDSVTISVDGVVYYRVQNATLAVANITNADSATRLLAQTTLRNALGTKNLSQILSDREEIAHHMQSTLDDATDDWGIKVERVEIKDVKLPV 201
                                    98       108       118       128       138       148       158       168       178       188       198


Chain H from PDB  Type:PROTEIN  Length:114

               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........eeeeeeeeeee.....eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4fvj H  90 SLIKVDMRTISFDIPPQEVLTKDSVTISVDGVVYYRVQNATLAVANITNADSATRLLAQTTLRNALGTKNLSQILSDREEIAHHMQSTLDDATDDWGIKVERVEIKDVKLPVQL 203
                                    99       109       119       129       139       149       159       169       179       189       199
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4FVJ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4FVJ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4FVJ)

(-) Gene Ontology  (28, 28)
