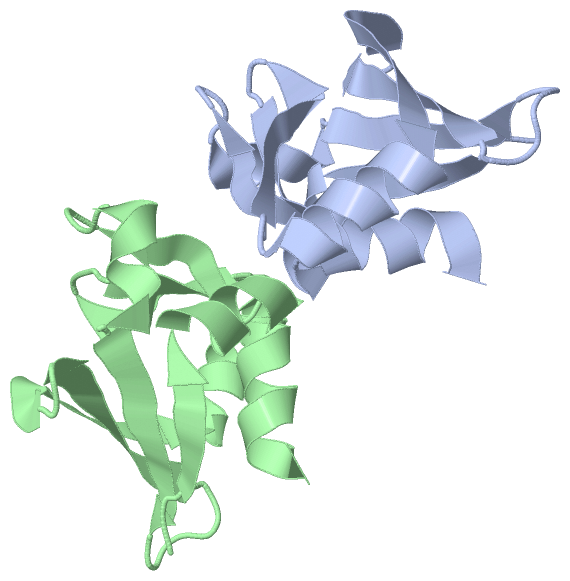

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

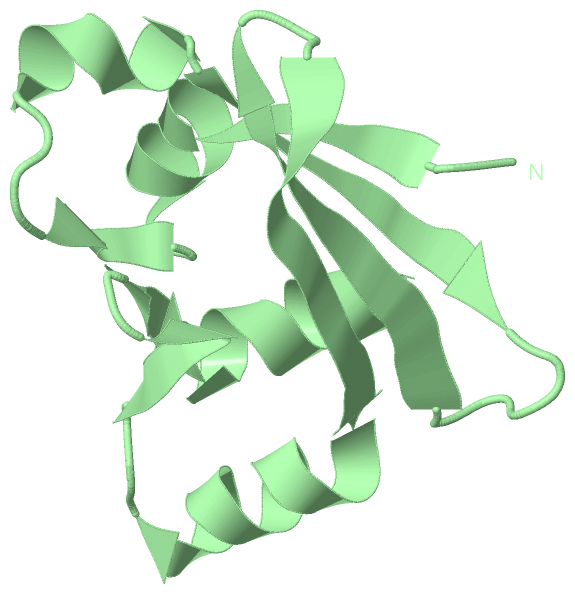

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE ATYPICAL PHOSPHOINOSITIDE (API) BINDING DOMAIN OF IQGAP2

Authors :  D. M. F. Van Aalten, M. J. Dixon, A. Gray, M. Schenning, M. Agacan, N. R. L C. P. Downes, I. H. Batty, L. Nedyalkova, W. Tempel, Y. Tong, N. Zhong, L C. H. Arrowsmith, A. M. Edwards, C. Bountra, J. Weigelt, A. Bochkarev, Structural Genomics Consortium (Sgc)
Date :  02 May 12  (Deposition) - 16 May 12  (Release) - 18 Jul 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.50
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Gap, Structural Genomics Consortium, Sgc, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. J. Dixon, A. Gray, M. Schenning, M. Agacan, W. Tempel, Y. Tong, L. Nedyalkova, H. W. Park, N. R. Leslie, D. M. Van Aalten, C. P. Downes, I. H. Batty
Iqgap Proteins Reveal An Atypical Phosphoinositide (Api) Binding Domain With A Pseudo C2 Domain Fold.
J. Biol. Chem. V. 287 22483 2012
PubMed-ID: 22493426  |  Reference-DOI: 10.1074/JBC.M112.352773

(-) Compounds

Molecule 1 - RAS GTPASE-ACTIVATING-LIKE PROTEIN IQGAP2
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28-MHL
    Expression System Strain: BL21-V2R-PRARE2
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 1476-1571
    Gene: IQGAP2
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4EZA)

(-) Sites  (0, 0)

(no "Site" information available for 4EZA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4EZA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4EZA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4EZA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4EZA)

(-) Exons   (0, 0)

(no "Exon" information available for 4EZA)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:94

               SCOP domains d4ezaa_ A: automated matches                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeehhhhhhh..eeee...hhhhhh.eeeeeee.....eeeeeeee..eeeeeeeeehhhhhhhhhh...eeeee..eeeehhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------- Transcript
                  4eza A  2 KPVKYTAAKLHEKGVLLDIDDLQTNQFKNVTFDIIATEDVGIFDVRSKFLGVEMEKVQLNIQDLLQMQYEGVAVMKMFDKVKVNVNLLIYLLNK 95
                                    11        21        31        41        51        61        71        81        91


Chain B from PDB  Type:PROTEIN  Length:94

               SCOP domains d4ezab_ B: automated matches                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeehhhhhhh..eeee...hhhhhh.eeeeeee.....eeeeeeee..eeeeeeeeehhhhhhhhhh...eeeee..eeeehhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------- Transcript
                  4eza B  2 KPVKYTAAKLHEKGVLLDIDDLQTNQFKNVTFDIIATEDVGIFDVRSKFLGVEMEKVQLNIQDLLQMQYEGVAVMKMFDKVKVNVNLLIYLLNK 95
                                    11        21        31        41        51        61        71        81        91
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4EZA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4EZA)

(-) Gene Ontology  (26, 26)

Asymmetric Unit(hide GO term definitions)
