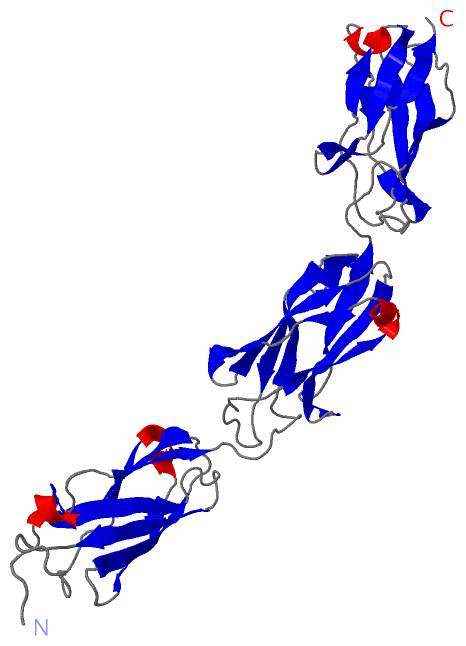

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

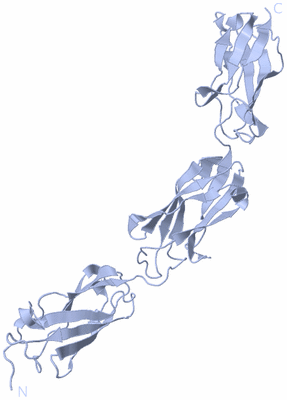

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  FDEC, A NOVEL BROADLY CONSERVED ESCHERICHIA COLI ADHESIN ELICITING PROTECTION AGAINST URINARY TRACT INFECTIONS

Authors :  G. Spraggon, B. Nesta, C. Alteri, D. Gomes Moriel, R. Rosini, D. Veggi, I. Bertoldi, I. Pastorello, I. Ferlenghi, M. R. Fontana, G. Frankel, H. L. T. Mobley, R. Rappuoli, M. Pizza, L. Serino, M. Soriana
Date :  21 Mar 12  (Deposition) - 25 Apr 12  (Release) - 10 Jul 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (2x)
Keywords :  Invasin-Like, Bacterial Immunoglobulin, Pathogenic, Vaccine, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. Nesta, G. Spraggon, C. Alteri, D. G. Moriel, R. Rosini, D. Veggi, S. Smith, I. Bertoldi, I. Pastorello, I. Ferlenghi, M. R. Fontana, G. Frankel, H. L. Mobley, R. Rappuoli, M. Pizza, L. Serino, M. Soriani
Fdec, A Novel Broadly Conserved Escherichia Coli Adhesin Eliciting Protection Against Urinary Tract Infections.
Mbio V. 3 2012
PubMed-ID: 22496310  |  Reference-DOI: 10.1128/MBIO.00010-12

(-) Compounds

Molecule 1 - ATTACHING AND EFFACING PROTEIN, PATHOGENESIS FACTOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: SPEEDET
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 595-1008
    Gene: EAEH, UTI89_C0321
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 364106
    Strain: UTI89 / UPEC

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4E9L)

(-) Sites  (0, 0)

(no "Site" information available for 4E9L)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4E9L)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Asn A:693 -Pro A:694

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4E9L)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4E9L)

(-) Exons   (0, 0)

(no "Exon" information available for 4E9L)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:314

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhheeeee........eeeeeee.................eeehhhhh..ee...ee....eeeeeee.....eeeeee.ee..ee.....eeeee..........eeee...eee...eeeeeee.............eeeeeehhhhh..ee...eeee..eeeeeee.....eeeeeeeee..ee.....eeeeee.........eeee.........eeeeeee.................eeehhhhh.....ee...eeee..eeeeeee.....eeeeee.ee..ee.....eeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4e9l A 678 FVAGPLDAAHSSITLNPDKPVVGGTVTAIWTAKDANDNPVTGLNPDAPSLSGAAAAGSTASGWTDNGDGTWTAQISLGTTAGELDVMPKLNGQDAAANAAKVTVVADALSSNQSKVSVAEDHVKAGESTTVTLVAKDAHGNAISGLSLSASLTGTASEGATVSSWTEKGDGSYVATLTTGGKTGELRVMPLFNGQPAATEAAQLTVIAGEMSSANSTLVADNKTPTVKTTTELTFTMKDAYGNPVTGLKPDAPVFSGAASTGSERPSAGNWTEKGNGVYVSTLTLGSAAGQLSVMPRVNGQNAVAQPLVLNVAG 991
                                   687       697       707       717       727       737       747       757       767       777       787       797       807       817       827       837       847       857       867       877       887       897       907       917       927       937       947       957       967       977       987
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4E9L)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4E9L)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4E9L)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4e9l)

  Sites
(no "Sites" information available for 4e9l)

  Cis Peptide Bonds
    Asn A:693 - Pro A:694   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4e9l
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A0H2YWG9_E | A0A0H2YWG9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL
  Q1RFP2_ECOUT | Q1RFP2
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A0H2YWG9_E | A0A0H2YWG9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q1RFP2_ECOUT | Q1RFP2
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
