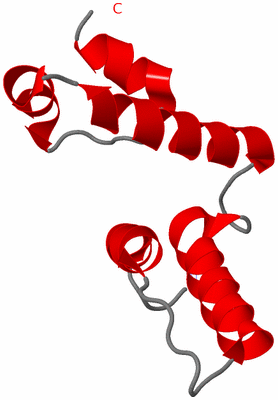

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE SCAN DOMAIN FROM MOUSE ZFP206

Authors :  Y. Liang, S. H. Choo, M. Rossbach, N. Baburajendran, P. Palasingam, P. R
Date :  15 Mar 12  (Deposition) - 02 May 12  (Release) - 02 May 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Scan Domain, Protein Interaction, Other Scans, N-Terminal Part, Zinc Finger Transcription Factor, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Liang, S. H. Choo, M. Rossbach, N. Baburajendran, P. Palasingam, P. R. Kolatkar
Crystal Optimization And Preliminary Diffraction Data Analysis Of The Scan Domain Of Zfp206.
Acta Crystallogr. , Sect. F V. 68 443 2012
PubMed-ID: 22505416  |  Reference-DOI: 10.1107/S1744309112006070

(-) Compounds

Molecule 1 - ZINC FINGER AND SCAN DOMAIN-CONTAINING PROTEIN 10
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PDEST-HISMBP
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: SCAN DOMAIN, UNP RESIDUES 36-128
    Gene: ZSCAN10, ZFP206
    Mutation: YES
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: ZINC FINGER PROTEIN 206

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4E6S)

(-) Sites  (0, 0)

(no "Site" information available for 4E6S)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4E6S)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4E6S)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4E6S)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4E6S)

(-) Exons   (0, 0)

(no "Exon" information available for 4E6S)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:85

               SCOP domains d4e6sa_ A: automated matches                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhh.......hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh.hhhhhhhhh.....hhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------- Transcript
                  4e6s A  1 GRPRPEVAHQLFRCFQYQEDMGPRASLGRLRELCNHWLRPALHTKKQILELLVLEQFLSVLPPHVLSRLHGAPLRDGEEVAQLEG 85
                                    10        20        30        40        50        60        70        80
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4E6S)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4E6S)

(-) Gene Ontology  (11, 11)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4e6s)

  Sites
(no "Sites" information available for 4e6s)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4e6s)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4e6s
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ZSC10_MOUSE | Q3URR7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ZSC10_MOUSE | Q3URR7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4E6S)

(-) Related Entries Specified in the PDB File

1y7q THE SAME FAMILY MEMBER
2fi2 THE SAME FAMILY MEMBER
3lhr THE SAME FAMILY MEMBER
