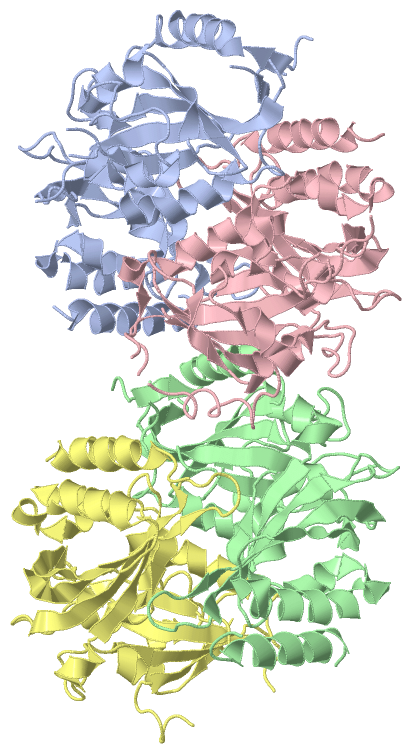

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  UNWINDING THE DIFFERENCES OF THE MAMMALIAN PERIOD CLOCK PROTEINS FROM CRYSTAL STRUCTURE TO CELLULAR FUNCTION

Authors :  N. Kucera, I. Schmalen, S. Hennig, R. Oellinger, H. M. Strauss, A. Grudz C. Wieczorek, A. Kramer, E. Wolf
Date :  01 Feb 12  (Deposition) - 29 Feb 12  (Release) - 14 Mar 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.75
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,C  (1x)
Biol. Unit 2:  B,D  (1x)
Keywords :  Pas Domains, Circadian Clock Protein, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  N. Kucera, I. Schmalen, S. Hennig, R. Ollinger, H. M. Strauss, A. Grudziecki, C. Wieczorek, A. Kramer, E. Wolf
Unwinding The Differences Of The Mammalian Period Clock Proteins From Crystal Structure To Cellular Function.
Proc. Natl. Acad. Sci. Usa V. 109 3311 2012
PubMed-ID: 22331899  |  Reference-DOI: 10.1073/PNAS.1113280109

(-) Compounds

Molecule 1 - PERIOD CIRCADIAN PROTEIN HOMOLOG 1
    ChainsA, B, C, D
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    GenePER1, PER, RIGUI
    Organism CommonMOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    SynonymMPER1, CIRCADIAN CLOCK PROTEIN PERIOD 1, CIRCADIAN PACEMAKER PROTEIN RIGUI

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit ABCD
Biological Unit 1 (1x)A C
Biological Unit 2 (1x) B D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4DJ2)

(-) Sites  (0, 0)

(no "Site" information available for 4DJ2)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4DJ2)

(-) Cis Peptide Bonds  (12, 12)

Asymmetric Unit
No.Residues
1Ala A:350 -Pro A:351
2Ser A:423 -Pro A:424
3Asn A:431 -Gly A:432
4Ala B:350 -Pro B:351
5Ser B:423 -Pro B:424
6Phe C:226 -Leu C:227
7Arg C:302 -Gly C:303
8Pro C:311 -Arg C:312
9Ala C:350 -Pro C:351
10Ser C:423 -Pro C:424
11Ala D:350 -Pro D:351
12Ser D:423 -Pro D:424

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4DJ2)

(-) PROSITE Motifs  (1, 4)

Asymmetric Unit (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PASPS50112 PAS repeat profile.PER1_MOUSE373-416



  4A:373-416
B:373-416
C:373-416
D:373-416
Biological Unit 1 (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PASPS50112 PAS repeat profile.PER1_MOUSE373-416



  2A:373-416
-
C:373-416
-
Biological Unit 2 (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PASPS50112 PAS repeat profile.PER1_MOUSE373-416



  2-
B:373-416
-
D:373-416

(-) Exons   (0, 0)

(no "Exon" information available for 4DJ2)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:276
 aligned with PER1_MOUSE | O35973 from UniProtKB/Swiss-Prot  Length:1291

    Alignment length:307
                                   205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485       495
           PER1_MOUSE   196 DMSTYTLEELEHITSEYTLRNQDTFSVAVSFLTGRIVYISEQAGVLLRCKRDVFRGARFSELLAPQDVGVFYGSTTPSRLPTWGTGTSAGSGLKDFTQEKSVFCRIRGGPDRDPGPRYQPFRLTPYVTKIRVSDGAPAQPCCLLIAERIHSGYEAPRIPPDKRIFTTRHTPSCLFQDVDERAAPLLGYLPQDLLGAPVLLFLHPEDRPLMLAIHKKILQLAGQPFDHSPIRFCARNGEYVTMDTSWAGFVHPWSRKVAFVLGRHKVRTAPLNEDVFTPPAPSPAPSLDSDIQELSEQIHRLLLQPVH 502
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eehhhhhhhhhhhhh.....eeeeeee.....eeee.hhhhhhhh.........hhhhhhhhhhhhhhhhhh..........-------------...eeeee...-------..eeeeeeeeeeee..---...eeeeeeeeee..........hhhh.eeeeee.....eeee..hhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhhhhhh......ee...eeee.....eeeee.eeeeee......eeeeeeeeee.............--------.hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PAS  PDB: A:373-416 UniProt: 373-416        -------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4dj2 A 196 DMSTYTLEELEHITSEYTLRNQDTFSVAVSFLTGRIVYISEQAGVLLRCKRDVFRGARFSELLAPQDVGVFYGSTTPSRLPTWGT-------------EKSVFCRIRGG-------RYQPFRLTPYVTKIRV---APAQPCCLLIAERIHSGYEAPRIPPDKRIFTTRHTPSCLFQDVDERAAPLLGYLPQDLLGAPVLLFLHPEDRPLMLAIHKKILQLAGQPFDHSPIRFCARNGEYVTMDTSWAGFVHPWSRKVAFVLGRHKVRTAPLNEDVFTPP--------DSDIQELSEQIHRLLLQPVH 502
                                   205       215       225       235       245       255       265       275    |    -       295        |-      |315       325 |   | 335       345       355       365       375       385       395       405       415       425       435       445       455       465        |-       485       495
                                                                                                              280           294       304     312            327 331                                                                                                                                            474      483

Chain B from PDB  Type:PROTEIN  Length:279
 aligned with PER1_MOUSE | O35973 from UniProtKB/Swiss-Prot  Length:1291

    Alignment length:307
                                   205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485       495
           PER1_MOUSE   196 DMSTYTLEELEHITSEYTLRNQDTFSVAVSFLTGRIVYISEQAGVLLRCKRDVFRGARFSELLAPQDVGVFYGSTTPSRLPTWGTGTSAGSGLKDFTQEKSVFCRIRGGPDRDPGPRYQPFRLTPYVTKIRVSDGAPAQPCCLLIAERIHSGYEAPRIPPDKRIFTTRHTPSCLFQDVDERAAPLLGYLPQDLLGAPVLLFLHPEDRPLMLAIHKKILQLAGQPFDHSPIRFCARNGEYVTMDTSWAGFVHPWSRKVAFVLGRHKVRTAPLNEDVFTPPAPSPAPSLDSDIQELSEQIHRLLLQPVH 502
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee.hhhhhhhhhhhhhh..eeeeeee.....eeee.hhhhhhhh.........hhhhhh...hhhhhhhhh.........--------------...eeeee....----....eeeeeeeeeeeee..-....eeeeeeeeee..........hhhh.eeeeee.....eeee..hhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeeeee.....eeeeeeee..ee......eeeeeeeeee.............---------.hhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PAS  PDB: B:373-416 UniProt: 373-416        -------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4dj2 B 196 DMSTYTLEELEHITSEYTLRNQDTFSVAVSFLTGRIVYISEQAGVLLRCKRDVFRGARFSELLAPQDVGVFYGSTTPSRLPTWG--------------EKSVFCRIRGGP----GPRYQPFRLTPYVTKIRVS-GAPAQPCCLLIAERIHSGYEAPRIPPDKRIFTTRHTPSCLFQDVDERAAPLLGYLPQDLLGAPVLLFLHPEDRPLMLAIHKKILQLAGQPFDHSPIRFCARNGEYVTMDTSWAGFVHPWSRKVAFVLGRHKVRTAPLNEDVFTPP---------SDIQELSEQIHRLLLQPVH 502
                                   205       215       225       235       245       255       265       275   |     -       295       305    |  315       325  | |  335       345       355       365       375       385       395       405       415       425       435       445       455       465        |-       485       495
                                                                                                             279            294        305  310               328 |                                                                                                                                             474       484
                                                                                                                                                                330

Chain C from PDB  Type:PROTEIN  Length:264
 aligned with PER1_MOUSE | O35973 from UniProtKB/Swiss-Prot  Length:1291

    Alignment length:299
                                   213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493
           PER1_MOUSE   204 ELEHITSEYTLRNQDTFSVAVSFLTGRIVYISEQAGVLLRCKRDVFRGARFSELLAPQDVGVFYGSTTPSRLPTWGTGTSAGSGLKDFTQEKSVFCRIRGGPDRDPGPRYQPFRLTPYVTKIRVSDGAPAQPCCLLIAERIHSGYEAPRIPPDKRIFTTRHTPSCLFQDVDERAAPLLGYLPQDLLGAPVLLFLHPEDRPLMLAIHKKILQLAGQPFDHSPIRFCARNGEYVTMDTSWAGFVHPWSRKVAFVLGRHKVRTAPLNEDVFTPPAPSPAPSLDSDIQELSEQIHRLLLQPVH 502
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...............eeeeee......eeee.hhhhhhhh.hhhhh...hhhhh.hhhhhhhhhhhhhhhhh....---------------..eeeee.....----...eeeeeeee.....----------.eeeeee...............eeeeee.....eeee..hhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhhhhhhh.....eeeeeeeee.....eeeeeeee..ee......eeeeeeeeee..............------..hhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------PAS  PDB: C:373-416 UniProt: 373-416        -------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4dj2 C 204 ELEHITSEYTLRNQDTFSVAVSFLTGRIVYISEQAGVLLRCKRDVFRGARFSELLAPQDVGVFYGSTTPSRLPTWG---------------KSVFCRIRGGPD----PRYQPFRLTPYVTKIR----------CLLIAERIHSGYEAPRIPPDKRIFTTRHTPSCLFQDVDERAAPLLGYLPQDLLGAPVLLFLHPEDRPLMLAIHKKILQLAGQPFDHSPIRFCARNGEYVTMDTSWAGFVHPWSRKVAFVLGRHKVRTAPLNEDVFTPPA------LDSDIQELSEQIHRLLLQPVH 502
                                   213       223       233       243       253       263       273     |   -         - |     303  |    313       323  |      -   |   343       353       363       373       383       393       403       413       423       433       443       453       463       473 |     483       493
                                                                                                     279             295        306  311            326        337                                                                                                                                       475    482

Chain D from PDB  Type:PROTEIN  Length:246
 aligned with PER1_MOUSE | O35973 from UniProtKB/Swiss-Prot  Length:1291

    Alignment length:291
                                   221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501
           PER1_MOUSE   212 YTLRNQDTFSVAVSFLTGRIVYISEQAGVLLRCKRDVFRGARFSELLAPQDVGVFYGSTTPSRLPTWGTGTSAGSGLKDFTQEKSVFCRIRGGPDRDPGPRYQPFRLTPYVTKIRVSDGAPAQPCCLLIAERIHSGYEAPRIPPDKRIFTTRHTPSCLFQDVDERAAPLLGYLPQDLLGAPVLLFLHPEDRPLMLAIHKKILQLAGQPFDHSPIRFCARNGEYVTMDTSWAGFVHPWSRKVAFVLGRHKVRTAPLNEDVFTPPAPSPAPSLDSDIQELSEQIHRLLLQPVH 502
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeee.--......ee..hhhhhh..hhhhh.........hhhhhhhhhhhh.........--------------...eeeee..--------..eeeeeeee.-------------..eeeeee..........hhhh.eeeeee.....eeee..hhhhhhh.hhhhhh..hhhhhhhhhhhhhhhhhhhhhhhh....eeeeeeeee.....eeeeeeee..ee......eeeeeeeeeeee...........--------.hhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------------------------------------------PAS  PDB: D:373-416 UniProt: 373-416        -------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4dj2 D 212 YTLRNQDTFSVAV--LTGRIVYISEQAGVLLRCKRDVFRGARFSELLAPQDVGVFYGSTTPSRLPTWG--------------EKSVFCRIRG--------RYQPFRLTPYV-------------CCLLIAERIHSGYEAPRIPPDKRIFTTRHTPSCLFQDVDERAAPLLGYLPQDLLGAPVLLFLHPEDRPLMLAIHKKILQLAGQPFDHSPIRFCARNGEYVTMDTSWAGFVHPWSRKVAFVLGRHKVRTAPLNEDVFTPP--------DSDIQELSEQIHRLLLQPVH 502
                                   221  |  | 231       241       251       261       271       | -         -  |    301 |       -|      321|        -    |  341       351       361       371       381       391       401       411       421       431       441       451       461       471  |      - |     491       501
                                      224  |                                                 279            294      303      312       322           336                                                                                                                                       474      483
                                         227

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4DJ2)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4DJ2)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4DJ2)

(-) Gene Ontology  (37, 37)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (PER1_MOUSE | O35973)
molecular function
    GO:0070888    E-box binding    Interacting selectively and non-covalently with an E-box, a DNA motif with the consensus sequence CANNTG that is found in the promoters of a wide array of genes expressed in neurons, muscle and other tissues.
    GO:0000978    RNA polymerase II core promoter proximal region sequence-specific DNA binding    Interacting selectively and non-covalently with a sequence of DNA that is in cis with and relatively close to a core promoter for RNA polymerase II.
    GO:0031490    chromatin DNA binding    Interacting selectively and non-covalently with DNA that is assembled into chromatin.
    GO:0019900    kinase binding    Interacting selectively and non-covalently with a kinase, any enzyme that catalyzes the transfer of a phosphate group.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0000989    transcription factor activity, transcription factor binding    Interacting selectively and non-covalently with a specific transcription factor, which may be a single protein or a complex, in order to modulate transcription. A protein binding transcription factor may or may not also interact with the template nucleic acid (either DNA or RNA) as well.
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
    GO:0000976    transcription regulatory region sequence-specific DNA binding    Interacting selectively and non-covalently with a specific sequence of DNA that is part of a regulatory region that controls transcription of that section of the DNA. The transcribed region might be described as a gene, cistron, or operon.
    GO:0031625    ubiquitin protein ligase binding    Interacting selectively and non-covalently with a ubiquitin protein ligase enzyme, any of the E3 proteins.
biological process
    GO:0032922    circadian regulation of gene expression    Any process that modulates the frequency, rate or extent of gene expression such that an expression pattern recurs with a regularity of approximately 24 hours.
    GO:0097167    circadian regulation of translation    Any process that modulates the frequency, rate or extent of mRNA translation with a regularity of approximately 24 hours.
    GO:0007623    circadian rhythm    Any biological process in an organism that recurs with a regularity of approximately 24 hours.
    GO:0043153    entrainment of circadian clock by photoperiod    The synchronization of a circadian rhythm to photoperiod, the intermittent cycle of light (day) and dark (night).
    GO:0043966    histone H3 acetylation    The modification of histone H3 by the addition of an acetyl group.
    GO:0070932    histone H3 deacetylation    The modification of histone H3 by the removal of one or more acetyl groups.
    GO:0043967    histone H4 acetylation    The modification of histone H4 by the addition of an acetyl group.
    GO:0043124    negative regulation of I-kappaB kinase/NF-kappaB signaling    Any process that stops, prevents, or reduces the frequency, rate or extent of -kappaB kinase/NF-kappaB signaling.
    GO:0046329    negative regulation of JNK cascade    Any process that stops, prevents, or reduces the frequency, rate or extent of signal transduction mediated by the JNK cascade.
    GO:2000323    negative regulation of glucocorticoid receptor signaling pathway    Any process that stops, prevents or reduces the frequency, rate or extent of glucocorticoid receptor signaling pathway.
    GO:0000122    negative regulation of transcription from RNA polymerase II promoter    Any process that stops, prevents, or reduces the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0045944    positive regulation of transcription from RNA polymerase II promoter    Any process that activates or increases the frequency, rate or extent of transcription from an RNA polymerase II promoter.
    GO:0010608    posttranscriptional regulation of gene expression    Any process that modulates the frequency, rate or extent of gene expression after the production of an RNA transcript.
    GO:0042752    regulation of circadian rhythm    Any process that modulates the frequency, rate or extent of a circadian rhythm. A circadian rhythm is a biological process in an organism that recurs with a regularity of approximately 24 hours.
    GO:1900015    regulation of cytokine production involved in inflammatory response    Any process that modulates the frequency, rate or extent of cytokine production involved in inflammatory response.
    GO:0042634    regulation of hair cycle    Any process that modulates the frequency, rate or extent of the cyclical phases of growth (anagen), regression (catagen), quiescence (telogen), and shedding (exogen) in the life of a hair.
    GO:1900744    regulation of p38MAPK cascade    Any process that modulates the frequency, rate or extent of p38MAPK cascade.
    GO:0002028    regulation of sodium ion transport    Any process that modulates the frequency, rate or extent of the directed movement of sodium ions (Na+) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0051591    response to cAMP    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a cAMP (cyclic AMP, adenosine 3',5'-cyclophosphate) stimulus.
    GO:0009416    response to light stimulus    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a light stimulus, electromagnetic radiation of wavelengths classified as infrared, visible or ultraviolet light.
    GO:0048511    rhythmic process    Any process pertinent to the generation and maintenance of rhythms in the physiology of an organism.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4dj2)

  Sites
(no "Sites" information available for 4dj2)

  Cis Peptide Bonds
    Ala A:350 - Pro A:351   [ RasMol ]
    Ala B:350 - Pro B:351   [ RasMol ]
    Ala C:350 - Pro C:351   [ RasMol ]
    Ala D:350 - Pro D:351   [ RasMol ]
    Arg C:302 - Gly C:303   [ RasMol ]
    Asn A:431 - Gly A:432   [ RasMol ]
    Phe C:226 - Leu C:227   [ RasMol ]
    Pro C:311 - Arg C:312   [ RasMol ]
    Ser A:423 - Pro A:424   [ RasMol ]
    Ser B:423 - Pro B:424   [ RasMol ]
    Ser C:423 - Pro C:424   [ RasMol ]
    Ser D:423 - Pro D:424   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4dj2
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PER1_MOUSE | O35973
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  PER1_MOUSE | O35973
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4DJ2)

(-) Related Entries Specified in the PDB File

1wa9 DROSOPHILA PERIOD
3gdi MOUSE PERIOD 2
4dj3
