(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

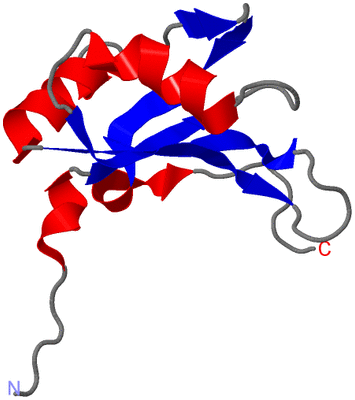

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)
Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  RRM DOMAIN FROM C. ELEGANS SUP-12

Authors :  S. Amrane, C. D. Mackereth
Date :  27 Nov 13  (Deposition) - 03 Sep 14  (Release) - 04 May 16  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  S  (15x)
NMR Structure *:  S  (1x)
Keywords :  Transcription, Development (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Amrane, K. Rebora, I. Zniber, D. Dupuy, C. D. Mackereth
Backbone-Independent Nucleic Acid Binding By Splicing Factor Sup-12 Reveals Key Aspects Of Molecular Recognition
Nat. Commun. V. 5 4595 2014
PubMed-ID: 25183497  |  Reference-DOI: 10.1038/NCOMMS5595

(-) Compounds

Molecule 1 - PROTEIN SUP-12, ISOFORM B
    Chains: S
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-HIS1A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Variant: PLYSY
    Expression System Vector Type: PLASMID
    Fragment: RRM DOMAIN, RESIDUES 28 TO 121
    Organism Scientific: CAENORHABDITIS ELEGANS
    Organism Taxid: 6239
    Tissue: MUSCLE

 Structural Features

(-) Chains, Units

  1
NMR Structure (15x): S
NMR Structure * (1x): S

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4CH0)

(-) Sites  (0, 0)

(no "Site" information available for 4CH0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4CH0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4CH0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4CH0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4CH0)

(-) Exons   (0, 0)

(no "Exon" information available for 4CH0)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain S from PDB  Type:PROTEIN  Length:97
 aligned with H2L051_CAEEL | H2L051 from UniProtKB/TrEMBL  Length:151

    Alignment length:97
                                    34        44        54        64        74        84        94       104       114
         H2L051_CAEEL    25 PVVGSRDTMFTKIFVGGLPYHTSDKTLHEYFEQFGDIEEAVVITDRNTQKSRGYGFVTMKDRASAERACKDPNPIIDGRKANVNLAYLGAKPRTNVQ 121
               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhh.eeeee......hhhhhhhhhh....eeeeeeee......eeeeeeeee.hhhhhhhhh.....ee..ee.eeeehhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 4ch0 S  25 GAMGSRDTMFTKIFVGGLPYHTSDKTLHEYFEQFGDIEEAVVITDRNTQKSRGYGFVTMKDRASAERACKDPNPIIDGRKANVNLAYLGAKPRTNVQ 121
                                    34        44        54        64        74        84        94       104       114


Chain S from PDB  Type:PROTEIN  Length:97
 aligned with O45189_CAEEL | O45189 from UniProtKB/TrEMBL  Length:248

    Alignment length:97
                                    34        44        54        64        74        84        94       104       114
         O45189_CAEEL    25 PVVGSRDTMFTKIFVGGLPYHTSDKTLHEYFEQFGDIEEAVVITDRNTQKSRGYGFVTMKDRASAERACKDPNPIIDGRKANVNLAYLGAKPRTNVQ 121
               SCOP domains ------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhh.eeeee......hhhhhhhhhh....eeeeeeee......eeeeeeeee.hhhhhhhhh.....ee..ee.eeeehhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 4ch0 S  25 GAMGSRDTMFTKIFVGGLPYHTSDKTLHEYFEQFGDIEEAVVITDRNTQKSRGYGFVTMKDRASAERACKDPNPIIDGRKANVNLAYLGAKPRTNVQ 121
                                    34        44        54        64        74        84        94       104       114
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4CH0)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4CH0)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4CH0)

(-) Gene Ontology  (12, 23)

NMR Structure(hide GO term definitions)
Chain S   (H2L051_CAEEL | H2L051)
molecular function
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0036002    pre-mRNA binding    Interacting selectively and non-covalently with pre-messenger RNA (pre-mRNA), an intermediate molecule between DNA and protein that may contain introns and, at least in part, encodes one or more proteins. Introns are removed from pre-mRNA to form a mRNA molecule.
    GO:0097157    pre-mRNA intronic binding    Interacting selectively and non-covalently with an intronic sequence of a pre-messenger RNA (pre-mRNA).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0000380    alternative mRNA splicing, via spliceosome    The process of generating multiple mRNA molecules from a given set of exons by differential use of exons from the primary transcript(s) to form multiple mature mRNAs that vary in their exon composition.
    GO:0032956    regulation of actin cytoskeleton organization    Any process that modulates the frequency, rate or extent of the formation, arrangement of constituent parts, or disassembly of cytoskeletal structures comprising actin filaments and their associated proteins.
    GO:0000381    regulation of alternative mRNA splicing, via spliceosome    Any process that modulates the frequency, rate or extent of alternative splicing of nuclear mRNAs.
    GO:0040012    regulation of locomotion    Any process that modulates the frequency, rate or extent of locomotion of a cell or organism.
cellular component
    GO:0030529    intracellular ribonucleoprotein complex    An intracellular macromolecular complex containing both protein and RNA molecules.
    GO:0016607    nuclear speck    A discrete extra-nucleolar subnuclear domain, 20-50 in number, in which splicing factors are seen to be localized by immunofluorescence microscopy.

Chain S   (O45189_CAEEL | O45189)
molecular function
    GO:0003676    nucleic acid binding    Interacting selectively and non-covalently with any nucleic acid.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0036002    pre-mRNA binding    Interacting selectively and non-covalently with pre-messenger RNA (pre-mRNA), an intermediate molecule between DNA and protein that may contain introns and, at least in part, encodes one or more proteins. Introns are removed from pre-mRNA to form a mRNA molecule.
    GO:0097157    pre-mRNA intronic binding    Interacting selectively and non-covalently with an intronic sequence of a pre-messenger RNA (pre-mRNA).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0003727    single-stranded RNA binding    Interacting selectively and non-covalently with single-stranded RNA.
biological process
    GO:0000380    alternative mRNA splicing, via spliceosome    The process of generating multiple mRNA molecules from a given set of exons by differential use of exons from the primary transcript(s) to form multiple mature mRNAs that vary in their exon composition.
    GO:0032956    regulation of actin cytoskeleton organization    Any process that modulates the frequency, rate or extent of the formation, arrangement of constituent parts, or disassembly of cytoskeletal structures comprising actin filaments and their associated proteins.
    GO:0000381    regulation of alternative mRNA splicing, via spliceosome    Any process that modulates the frequency, rate or extent of alternative splicing of nuclear mRNAs.
    GO:0040012    regulation of locomotion    Any process that modulates the frequency, rate or extent of locomotion of a cell or organism.
cellular component
    GO:0030529    intracellular ribonucleoprotein complex    An intracellular macromolecular complex containing both protein and RNA molecules.
    GO:0016607    nuclear speck    A discrete extra-nucleolar subnuclear domain, 20-50 in number, in which splicing factors are seen to be localized by immunofluorescence microscopy.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4ch0)

  Sites
(no "Sites" information available for 4ch0)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4ch0)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4ch0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  H2L051_CAEEL | H2L051
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  O45189_CAEEL | O45189
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  H2L051_CAEEL | H2L051
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  O45189_CAEEL | O45189
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        H2L051_CAEEL | H2L051: 4ch1
        O45189_CAEEL | O45189: 2mgz 2ru3 4cio

(-) Related Entries Specified in the PDB File

4ch1 RRM DOMAIN FROM C. ELEGANS SUP-12
4cio RRM DOMAIN FROM C. ELEGANS SUP-12 BOUND TO GGUGUGC RNA
