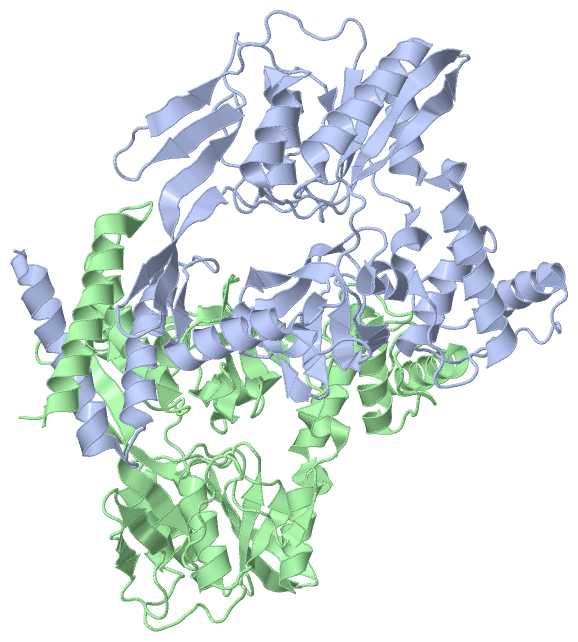

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE PROTEASE CTPB(S309A) PRESENT IN A RESTING STATE

Authors :  M. Mastny, A. Heuck, R. Kurzbauer, T. Clausen
Date :  17 Aug 13  (Deposition) - 04 Dec 13  (Release) - 04 Dec 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Hydrolase, Proteolytic Tunnel (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Mastny, A. Heuck, R. Kurzbauer, A. Heiduk, P. Boisguerin, R. Volkmer, M. Ehrmann, C. D. A. Rodrigues, D. Z. Rudner, T. Clausen
Ctpb Assembles A Gated Protease Tunnel Regulating Cell-Cell Signaling During Spore Formation In Bacillus Subtilis.
Cell(Cambridge, Mass. ) V. 155 647 2013
PubMed-ID: 24243021  |  Reference-DOI: 10.1016/J.CELL.2013.09.050

(-) Compounds

Molecule 1 - CARBOXY-TERMINAL PROCESSING PROTEASE CTPB
    Chains: A, B
    EC Number: 3.4.21.102
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Fragment: RESIDUES 44-480
    Mutation: YES
    Organism Scientific: BACILLUS SUBTILIS SUBSP. SUBTILIS STR. 168
    Organism Taxid: 224308
    Synonym: C-TERMINAL PROCESSING PROTEASE, CTPB

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4C2E)

(-) Sites  (0, 0)

(no "Site" information available for 4C2E)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4C2E)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4C2E)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4C2E)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PDZPS50106 PDZ domain profile.CTPB_BACSU92-168
 		  2A:92-168
B:92-168

(-) Exons   (0, 0)

(no "Exon" information available for 4C2E)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:436
 aligned with CTPB_BACSU | O35002 from UniProtKB/Swiss-Prot  Length:480

    Alignment length:436
                                    53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473
           CTPB_BACSU    44 ADSERDKAMDKIEKAYELISNEYVEKVDREKLLEGAIQGMLSTLNDPYSVYMDKQTAKQFSDSLDSSFEGIGAEVGMEDGKIIIVSPFKKSPAEKAGLKPNDEIISINGESMAGKDLNHAVLKIRGKKGSSVSMKIQRPGTKKQLSFRIKRAEIPLETVFASEKKVQGHSVGYIAISTFSEHTAEDFAKALRELEKKEIEGLVIDVRGNPGGYLQSVEEILKHFVTKDQPYIQIAERNGDKKRYFSTLTHKKAYPVNVITDKGSASASEILAGALKEAGHYDVVGDTSFGKGTVQQAVPMGDGSNIKLTLYKWLTPNGNWIHKKGIEPTIAIKQPDYFSAGPLQLKEPLKVDMNNEDVKHAQVLLKGLSFDPGREDGYFSKDMKKAVMAFQDQNKLNKTGVIDTRTAETLNQQIEKKKSDEKNDLQLQTALKSLFV 479
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh......eeehhhhhhhhhhhhhh......eeeeee..eeeeeee...hhhhhhh.....eeeee..ee....hhhhhhhhhh.....eeeeeee......eeeeeee........eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhhh....eeee.......hhhhhhhhhh.........eeee.....eeee...........eeeee.....hhhhhhhhhhhhh...eeee.......eeeeeee.....eeeeeeeeee...............ee...hhhhhhh.............hhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------PDZ  PDB: A:92-168 UniProt: 92-168                                           ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4c2e A  44 ADSERDKAMDKIEKAYELISNEYVEKVDREKLLEGAIQGMLSTLNDPYSVYMDKQTAKQFSDSLDSSFEGIGAEVGMEDGKIIIVSPFKKSPAEKAGLKPNDEIISINGESMAGKDLNHAVLKIRGKKGSSVSMKIQRPGTKKQLSFRIKRAEIPLETVFASEKKVQGHSVGYIAISTFSEHTTEDFAKALRELEKKEIEGLVIDVRGNPGGYIQSVEEILKHFVTKDQPYIQIAERNGDKKRYFSTLTHKKAYPVNVITDKGSAAASEILAGALKEAGHYDVVGDTSFGKGTVQQAVPMGDGSNIKLTLYKWLTPNGNWIHKKGIEPTIAIKQPDYFSAGPLQLKEPLKVDMNNEDVKHAQVLLKGLSFDPGREDGYFSKDMKKAVMAFQDQNKLNKTGIIDTRTAETLNQQIEKKKSDEKNDLQLQTALKSLFV 479
                                    53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473


Chain B from PDB  Type:PROTEIN  Length:436
 aligned with CTPB_BACSU | O35002 from UniProtKB/Swiss-Prot  Length:480

    Alignment length:436
                                    53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473
           CTPB_BACSU    44 ADSERDKAMDKIEKAYELISNEYVEKVDREKLLEGAIQGMLSTLNDPYSVYMDKQTAKQFSDSLDSSFEGIGAEVGMEDGKIIIVSPFKKSPAEKAGLKPNDEIISINGESMAGKDLNHAVLKIRGKKGSSVSMKIQRPGTKKQLSFRIKRAEIPLETVFASEKKVQGHSVGYIAISTFSEHTAEDFAKALRELEKKEIEGLVIDVRGNPGGYLQSVEEILKHFVTKDQPYIQIAERNGDKKRYFSTLTHKKAYPVNVITDKGSASASEILAGALKEAGHYDVVGDTSFGKGTVQQAVPMGDGSNIKLTLYKWLTPNGNWIHKKGIEPTIAIKQPDYFSAGPLQLKEPLKVDMNNEDVKHAQVLLKGLSFDPGREDGYFSKDMKKAVMAFQDQNKLNKTGVIDTRTAETLNQQIEKKKSDEKNDLQLQTALKSLFV 479
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh......eeehhhhhhhhhhhhhh......eeeeee..eeeeeee...hhhhhhh.....eeeee..ee....hhhhhhhhhh.....eeeeeee......eeeeeee........eeeeeeee..eeeeeeee.....hhhhhhhhhhhhhhhh....eeee.......hhhhhhhhhh.........eeee.....eeee...........eeeee.....hhhhhhhhhhhhh...eeee.......eeeeeee.....eeeeeeeeee...............ee...hhhhh...............hhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------PDZ  PDB: B:92-168 UniProt: 92-168                                           ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4c2e B  44 ADSERDKAMDKIEKAYELISNEYVEKVDREKLLEGAIQGMLSTLNDPYSVYMDKQTAKQFSDSLDSSFEGIGAEVGMEDGKIIIVSPFKKSPAEKAGLKPNDEIISINGESMAGKDLNHAVLKIRGKKGSSVSMKIQRPGTKKQLSFRIKRAEIPLETVFASEKKVQGHSVGYIAISTFSEHTTEDFAKALRELEKKEIEGLVIDVRGNPGGYIQSVEEILKHFVTKDQPYIQIAERNGDKKRYFSTLTHKKAYPVNVITDKGSAAASEILAGALKEAGHYDVVGDTSFGKGTVQQAVPMGDGSNIKLTLYKWLTPNGNWIHKKGIEPTIAIKQPDYFSAGPLQLKEPLKVDMNNEDVKHAQVLLKGLSFDPGREDGYFSKDMKKAVMAFQDQNKLNKTGIIDTRTAETLNQQIEKKKSDEKNDLQLQTALKSLFV 479
                                    53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4C2E)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4C2E)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4C2E)

(-) Gene Ontology  (11, 11)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (CTPB_BACSU | O35002)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0042277    peptide binding    Interacting selectively and non-covalently with peptides, any of a group of organic compounds comprising two or more amino acids linked by peptide bonds.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0042803    protein homodimerization activity    Interacting selectively and non-covalently with an identical protein to form a homodimer.
    GO:0008236    serine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a catalytic mechanism that involves a catalytic triad consisting of a serine nucleophile that is activated by a proton relay involving an acidic residue (e.g. aspartate or glutamate) and a basic residue (usually histidine).
biological process
    GO:0006518    peptide metabolic process    The chemical reactions and pathways involving peptides, compounds of two or more amino acids where the alpha carboxyl group of one is bound to the alpha amino group of another.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
    GO:0030435    sporulation resulting in formation of a cellular spore    The process in which a relatively unspecialized cell acquires the specialized features of a cellular spore, a cell form that can be used for dissemination, for survival of adverse conditions because of its heat and dessication resistance, and/or for reproduction.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4c2e)

  Sites
(no "Sites" information available for 4c2e)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4c2e)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4c2e
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CTPB_BACSU | O35002
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.4.21.102
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CTPB_BACSU | O35002
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CTPB_BACSU | O35002: 4c2c 4c2d 4c2f 4c2g 4c2h

(-) Related Entries Specified in the PDB File

4c2c CRYSTAL STRUCTURE OF THE PROTEASE CTPB IN AN ACTIVE STATE
4c2d CRYSTAL STRUCTURE OF THE PROTEASE CTPB IN AN ACTIVE STATE
4c2f CRYSTAL STRUCTURE OF THE CTPB R168A MUTANT PRESENT IN AN ACTIVE CONFORMATION
4c2g CRYSTAL STRUCTURE OF CTPB(S309A) IN COMPLEX WITH A PEPTIDE HAVING A VAL-PRO-ALA C-TERMINUS
4c2h CRYSTAL STRUCTURE OF THE CTPB(V118Y) MUTANT
