Title :   PLASMODIUM VIVAX N-MYRISTOYLTRANSFERASE WITH A BOUND BENZOTHIOPHENE INHIBITOR

Authors :   M. D. Rackham, J. A. Brannigan, D. K. Moss, Z. Yu, A. J. Wilkinson, A. A. Ho E. W. Tate, R. J. Leatherbarrow

Date :   23 Sep 12 (Deposition) - 05 Dec 12 (Release) - 23 Jan 13 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.63

Chains :   Asym. Unit : A,B,C
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)

Keywords :   Transferase, Myristoylation, Malaria, Inhibitor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. D. Rackham, J. A. Brannigan, D. K. Moss, Z. Yu, A. J. Wilkinson, A. A. Holder, E. W. Tate, R. J. Leatherbarrow
Discovery Of Novel And Ligand-Efficient Inhibitors Of Plasmodium Falciparum And Plasmodium Vivax N- Myristoyltransferase.
J. Med. Chem. V. 56 371 2013
PubMed-ID: 23170970 | Reference-DOI: 10.1021/JM301474T

Molecule 1 - GLYCYLPEPTIDE N-TETRADECANOYLTRANSFERASE
	Chains	:	A, B, C
	EC Number	:	2.3.1.97
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Variant	:	PLYSS
	Expression System Vector	:	PET28
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	PLASMODIUM VIVAX
	Organism Taxid	:	5855

		1	2	3
Asymmetric Unit	:	A	B	C
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (6, 16)

No.	Name	Count	Type	Full Name
1	CL	3	Ligand/Ion	CHLORIDE ION
2	DMS	3	Ligand/Ion	DIMETHYL SULFOXIDE
3	MG	3	Ligand/Ion	MAGNESIUM ION
4	NHW	3	Ligand/Ion	2-OXOPENTADECYL-COA
5	SO4	1	Ligand/Ion	SULFATE ION
6	YBN	3	Ligand/Ion	3-METHOXYBENZYL 3-(PIPERIDIN-4-YLOXY)-1-BENZOTHIOPHENE-2-CARBOXYLATE

Biological Unit 1 (4, 4)

No.	Name	Count	Type	Full Name
1	CL	-1	Ligand/Ion	CHLORIDE ION
2	DMS	1	Ligand/Ion	DIMETHYL SULFOXIDE
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	NHW	1	Ligand/Ion	2-OXOPENTADECYL-COA
5	SO4	1	Ligand/Ion	SULFATE ION
6	YBN	1	Ligand/Ion	3-METHOXYBENZYL 3-(PIPERIDIN-4-YLOXY)-1-BENZOTHIOPHENE-2-CARBOXYLATE

Biological Unit 2 (3, 3)

No.	Name	Count	Type	Full Name
1	CL	-1	Ligand/Ion	CHLORIDE ION
2	DMS	1	Ligand/Ion	DIMETHYL SULFOXIDE
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	NHW	1	Ligand/Ion	2-OXOPENTADECYL-COA
5	SO4	-1	Ligand/Ion	SULFATE ION
6	YBN	1	Ligand/Ion	3-METHOXYBENZYL 3-(PIPERIDIN-4-YLOXY)-1-BENZOTHIOPHENE-2-CARBOXYLATE

Biological Unit 3 (3, 3)

No.	Name	Count	Type	Full Name
1	CL	-1	Ligand/Ion	CHLORIDE ION
2	DMS	1	Ligand/Ion	DIMETHYL SULFOXIDE
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	NHW	1	Ligand/Ion	2-OXOPENTADECYL-COA
5	SO4	-1	Ligand/Ion	SULFATE ION
6	YBN	1	Ligand/Ion	3-METHOXYBENZYL 3-(PIPERIDIN-4-YLOXY)-1-BENZOTHIOPHENE-2-CARBOXYLATE

Asymmetric Unit (16, 16)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	GLU A:159 , PHE A:281 , TRP A:289 , HOH A:2241	BINDING SITE FOR RESIDUE DMS A 999
02	AC2	SOFTWARE	TYR A:28 , LYS A:29 , PHE A:30 , TRP A:31 , TYR A:95 , VAL A:96 , ASN A:161 , PHE A:162 , LEU A:163 , CYS A:164 , VAL A:165 , ARG A:170 , SER A:171 , LYS A:172 , ARG A:173 , LEU A:174 , ALA A:175 , PRO A:176 , THR A:183 , ILE A:186 , TRP A:192 , GLN A:193 , ALA A:194 , TYR A:196 , THR A:197 , LEU A:202 , TYR A:393 , MG A:1413 , HOH A:2002 , HOH A:2134 , HOH A:2137 , HOH A:2278 , HOH A:2279 , HOH A:2280 , HOH A:2281 , HOH A:2282	BINDING SITE FOR RESIDUE NHW A1000
03	AC3	SOFTWARE	ASP A:98 , PHE A:105 , TYR A:107 , THR A:197 , TYR A:211 , HIS A:213 , TYR A:315 , SER A:319 , TYR A:334 , SER A:335 , ASN A:365 , ALA A:366 , LEU A:367 , LEU A:388 , LEU A:409 , LEU A:410	BINDING SITE FOR RESIDUE YBN A1001
04	AC4	SOFTWARE	ARG A:210 , LYS A:373 , ARG B:210 , LYS B:373	BINDING SITE FOR RESIDUE SO4 A1411
05	AC5	SOFTWARE	LYS A:180 , THR A:247 , LEU A:248 , ARG A:358 , HOH A:2194	BINDING SITE FOR RESIDUE CL A1412
06	AC6	SOFTWARE	LEU A:169 , SER A:171 , LYS A:172 , ARG A:173 , LEU A:174 , NHW A:1000	BINDING SITE FOR RESIDUE MG A1413
07	AC7	SOFTWARE	GLU B:159 , PHE B:281 , TRP B:289 , HOH B:2216	BINDING SITE FOR RESIDUE DMS B 999
08	AC8	SOFTWARE	TYR B:28 , LYS B:29 , PHE B:30 , TRP B:31 , ASN B:94 , TYR B:95 , VAL B:96 , ASN B:161 , PHE B:162 , LEU B:163 , CYS B:164 , VAL B:165 , ARG B:170 , SER B:171 , LYS B:172 , ARG B:173 , LEU B:174 , ALA B:175 , PRO B:176 , THR B:183 , ILE B:186 , ASN B:187 , TRP B:192 , ALA B:194 , TYR B:196 , THR B:197 , LEU B:202 , TYR B:393 , YBN B:1001 , MG B:1412 , HOH B:2001 , HOH B:2121 , HOH B:2124 , HOH B:2125 , HOH B:2254 , HOH B:2255 , HOH B:2256 , HOH B:2257 , HOH B:2258 , HOH B:2259	BINDING SITE FOR RESIDUE NHW B1000
09	AC9	SOFTWARE	VAL B:96 , PHE B:105 , TYR B:107 , THR B:197 , GLY B:199 , TYR B:211 , TYR B:315 , TYR B:334 , SER B:335 , ASN B:365 , ALA B:366 , LEU B:388 , LEU B:409 , LEU B:410 , NHW B:1000	BINDING SITE FOR RESIDUE YBN B1001
10	BC1	SOFTWARE	LYS B:180 , LEU B:248 , ARG B:358 , HOH B:2176	BINDING SITE FOR RESIDUE CL B1411
11	BC2	SOFTWARE	LEU B:169 , SER B:171 , LYS B:172 , ARG B:173 , LEU B:174 , NHW B:1000	BINDING SITE FOR RESIDUE MG B1412
12	BC3	SOFTWARE	GLU C:159 , PHE C:281 , TRP C:289 , HOH C:2212	BINDING SITE FOR RESIDUE DMS C 999
13	BC4	SOFTWARE	TYR C:28 , LYS C:29 , PHE C:30 , TRP C:31 , ASN C:94 , TYR C:95 , VAL C:96 , ASN C:161 , PHE C:162 , LEU C:163 , CYS C:164 , VAL C:165 , ARG C:170 , SER C:171 , LYS C:172 , ARG C:173 , LEU C:174 , ALA C:175 , PRO C:176 , THR C:183 , ILE C:186 , TRP C:192 , GLN C:193 , TYR C:196 , THR C:197 , LEU C:202 , TYR C:393 , MG C:1412 , HOH C:2001 , HOH C:2111 , HOH C:2116 , HOH C:2128 , HOH C:2242 , HOH C:2243 , HOH C:2244 , HOH C:2245 , HOH C:2246	BINDING SITE FOR RESIDUE NHW C1000
14	BC5	SOFTWARE	ASP C:98 , PHE C:105 , TYR C:107 , TYR C:211 , TYR C:315 , TYR C:334 , SER C:335 , ASN C:365 , LEU C:367 , LEU C:388 , VAL C:408 , LEU C:410 , HOH C:2128	BINDING SITE FOR RESIDUE YBN C1001
15	BC6	SOFTWARE	LYS C:180 , THR C:247 , LEU C:248 , ARG C:358	BINDING SITE FOR RESIDUE CL C1411
16	BC7	SOFTWARE	LEU C:169 , SER C:171 , LYS C:172 , ARG C:173 , LEU C:174 , NHW C:1000	BINDING SITE FOR RESIDUE MG C1412

(no "SS Bond" information available for 4BBH)

Asymmetric Unit

No.	Residues
1	Pro A:203	-	Lys A:204
2	Pro B:203	-	Lys B:204
3	Pro C:203	-	Lys C:204

(no "SAP(SNP)/Variant" information available for 4BBH)

(no "PROSITE Motif" information available for 4BBH)

(no "Exon" information available for 4BBH)

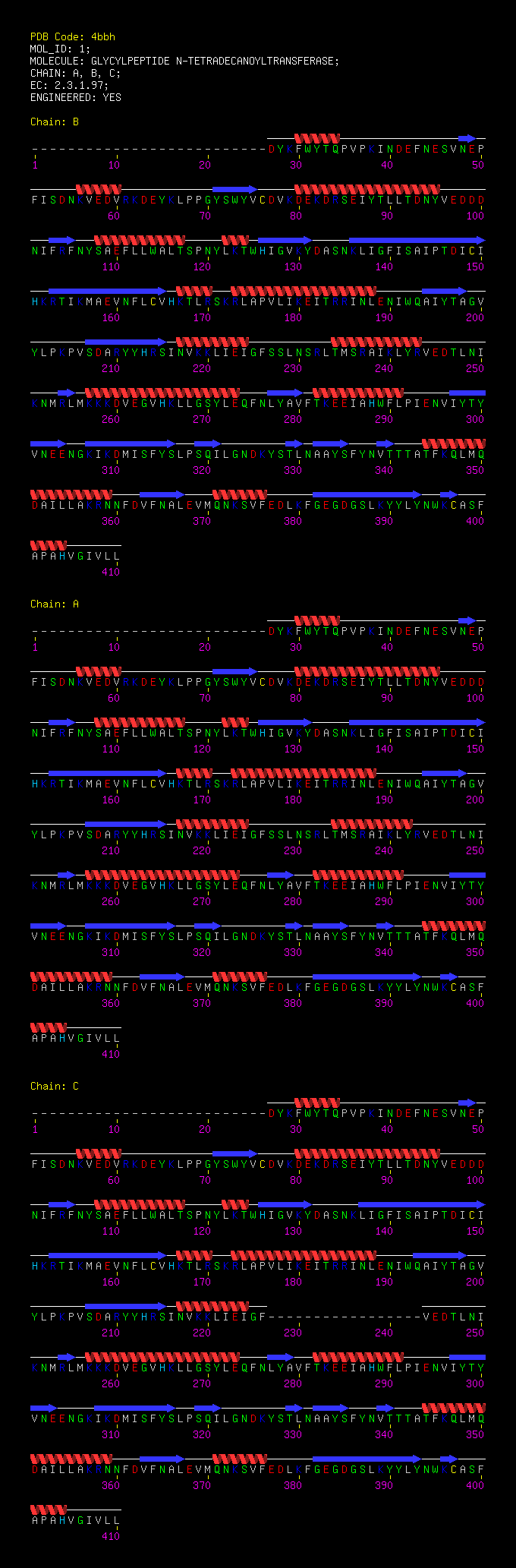

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:384
 aligned with A5K1A2_PLAVS | A5K1A2 from UniProtKB/TrEMBL  Length:410

    Alignment length:384
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406
         A5K1A2_PLAVS    27 DYKFWYTQPVPKINDEFNESVNEPFISDNKVEDVRKDEYKLPPGYSWYVCDVKDEKDRSEIYTLLTDNYVEDDDNIFRFNYSAEFLLWALTSPNYLKTWHIGVKYDASNKLIGFISAIPTDICIHKRTIKMAEVNFLCVHKTLRSKRLAPVLIKEITRRINLENIWQAIYTAGVYLPKPVSDARYYHRSINVKKLIEIGFSSLNSRLTMSRAIKLYRVEDTLNIKNMRLMKKKDVEGVHKLLGSYLEQFNLYAVFTKEEIAHWFLPIENVIYTYVNEENGKIKDMISFYSLPSQILGNDKYSTLNAAYSFYNVTTTATFKQLMQDAILLAKRNNFDVFNALEVMQNKSVFEDLKFGEGDGSLKYYLYNWKCASFAPAHVGIVLL 410
               SCOP domains d4bbha1 A:27-210 automated matches                                                                                                                                                      -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhh.............ee......hhhhh..........eeeee....hhhhhhhhhhhhhhhh.......eee..hhhhhhhhhh....hhh.eeeeee....eeeeeeeeeeeeeee..eeeeeeeeeeeee.hhhh..hhhhhhhhhhhhhhhh.....eeeee........eeeeeeeee.hhhhhhhh.........hhhhhhhhh...........ee.hhhhhhhhhhhhhhhhh...eee..hhhhhhhhhh.....eeeeeeee..eeeeeeeeee..eee.......ee.eeee...ee...hhhhhhhhhhhhhhhh...eeeee...hhhhhh.....eeeeeeeeeeee..ee...hhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbh A  27 DYKFWYTQPVPKINDEFNESVNEPFISDNKVEDVRKDEYKLPPGYSWYVCDVKDEKDRSEIYTLLTDNYVEDDDNIFRFNYSAEFLLWALTSPNYLKTWHIGVKYDASNKLIGFISAIPTDICIHKRTIKMAEVNFLCVHKTLRSKRLAPVLIKEITRRINLENIWQAIYTAGVYLPKPVSDARYYHRSINVKKLIEIGFSSLNSRLTMSRAIKLYRVEDTLNIKNMRLMKKKDVEGVHKLLGSYLEQFNLYAVFTKEEIAHWFLPIENVIYTYVNEENGKIKDMISFYSLPSQILGNDKYSTLNAAYSFYNVTTTATFKQLMQDAILLAKRNNFDVFNALEVMQNKSVFEDLKFGEGDGSLKYYLYNWKCASFAPAHVGIVLL 410
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406

Chain B from PDB  Type:PROTEIN  Length:384
 aligned with A5K1A2_PLAVS | A5K1A2 from UniProtKB/TrEMBL  Length:410

    Alignment length:384
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406
         A5K1A2_PLAVS    27 DYKFWYTQPVPKINDEFNESVNEPFISDNKVEDVRKDEYKLPPGYSWYVCDVKDEKDRSEIYTLLTDNYVEDDDNIFRFNYSAEFLLWALTSPNYLKTWHIGVKYDASNKLIGFISAIPTDICIHKRTIKMAEVNFLCVHKTLRSKRLAPVLIKEITRRINLENIWQAIYTAGVYLPKPVSDARYYHRSINVKKLIEIGFSSLNSRLTMSRAIKLYRVEDTLNIKNMRLMKKKDVEGVHKLLGSYLEQFNLYAVFTKEEIAHWFLPIENVIYTYVNEENGKIKDMISFYSLPSQILGNDKYSTLNAAYSFYNVTTTATFKQLMQDAILLAKRNNFDVFNALEVMQNKSVFEDLKFGEGDGSLKYYLYNWKCASFAPAHVGIVLL 410
               SCOP domains d4bbhb1 B:27-210 automated matches                                                                                                                                                      -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhh.............ee......hhhhh..........eeeee....hhhhhhhhhhhhhhhh.......eee..hhhhhhhhhh....hhh.eeeeee....eeeeeeeeeeeeeee..eeeeeeeeeeeee.hhhh..hhhhhhhhhhhhhhhh.....eeeee........eeeeeeeee.hhhhhhhh.........hhhhhhhhhh..........ee.hhhhhhhhhhhhhhhhh...eeee.hhhhhhhhhh.....eeeeeeee..eeeeeeeeee..eee.......ee.eeee...ee...hhhhhhhhhhhhhhhh...eeeee...hhhhhh.....eeeeeeeeeeee..ee...hhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbh B  27 DYKFWYTQPVPKINDEFNESVNEPFISDNKVEDVRKDEYKLPPGYSWYVCDVKDEKDRSEIYTLLTDNYVEDDDNIFRFNYSAEFLLWALTSPNYLKTWHIGVKYDASNKLIGFISAIPTDICIHKRTIKMAEVNFLCVHKTLRSKRLAPVLIKEITRRINLENIWQAIYTAGVYLPKPVSDARYYHRSINVKKLIEIGFSSLNSRLTMSRAIKLYRVEDTLNIKNMRLMKKKDVEGVHKLLGSYLEQFNLYAVFTKEEIAHWFLPIENVIYTYVNEENGKIKDMISFYSLPSQILGNDKYSTLNAAYSFYNVTTTATFKQLMQDAILLAKRNNFDVFNALEVMQNKSVFEDLKFGEGDGSLKYYLYNWKCASFAPAHVGIVLL 410
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406

Chain C from PDB  Type:PROTEIN  Length:367
 aligned with A5K1A2_PLAVS | A5K1A2 from UniProtKB/TrEMBL  Length:410

    Alignment length:384
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406
         A5K1A2_PLAVS    27 DYKFWYTQPVPKINDEFNESVNEPFISDNKVEDVRKDEYKLPPGYSWYVCDVKDEKDRSEIYTLLTDNYVEDDDNIFRFNYSAEFLLWALTSPNYLKTWHIGVKYDASNKLIGFISAIPTDICIHKRTIKMAEVNFLCVHKTLRSKRLAPVLIKEITRRINLENIWQAIYTAGVYLPKPVSDARYYHRSINVKKLIEIGFSSLNSRLTMSRAIKLYRVEDTLNIKNMRLMKKKDVEGVHKLLGSYLEQFNLYAVFTKEEIAHWFLPIENVIYTYVNEENGKIKDMISFYSLPSQILGNDKYSTLNAAYSFYNVTTTATFKQLMQDAILLAKRNNFDVFNALEVMQNKSVFEDLKFGEGDGSLKYYLYNWKCASFAPAHVGIVLL 410
               SCOP domains d4bbhc1 C:27-210 automated matches                                                                                                                                                      -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhh.............ee......hhhhh..........eeeee....hhhhhhhhhhhhhhhh.......eee..hhhhhhhhhh....hhh.eeeeee.....eeeeeeeeeeeeee..eeeeeeeeeeeee.hhhh..hhhhhhhhhhhhhhhh....eeeeee........eeeeeeeee.hhhhhhhh..-----------------..........ee.hhhhhhhhhhhhhhhhh...eee..hhhhhhhhhh.....eeeeeee....eeeeeeeee..eee.......ee.eeee...ee...hhhhhhhhhhhhhhhh...eeeee...hhhhhh.....eeeeeeeeeeee..ee...hhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbh C  27 DYKFWYTQPVPKINDEFNESVNEPFISDNKVEDVRKDEYKLPPGYSWYVCDVKDEKDRSEIYTLLTDNYVEDDDNIFRFNYSAEFLLWALTSPNYLKTWHIGVKYDASNKLIGFISAIPTDICIHKRTIKMAEVNFLCVHKTLRSKRLAPVLIKEITRRINLENIWQAIYTAGVYLPKPVSDARYYHRSINVKKLIEIGF-----------------VEDTLNIKNMRLMKKKDVEGVHKLLGSYLEQFNLYAVFTKEEIAHWFLPIENVIYTYVNEENGKIKDMISFYSLPSQILGNDKYSTLNAAYSFYNVTTTATFKQLMQDAILLAKRNNFDVFNALEVMQNKSVFEDLKFGEGDGSLKYYLYNWKCASFAPAHVGIVLL 410
                                    36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226         -       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386       396       406
                                                                                                                                                                                                                                 226               244

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Acyl-CoA N-acyltransferases (Nat) (250)

Superfamily: Acyl-CoA N-acyltransferases (Nat) (250)

Family: automated matches (63)

Protein domain: automated matches (63)

Plasmodium vivax [TaxId: 5855] (6)

1a	d4bbha1	A:27-210
1b	d4bbhb1	B:27-210
1c	d4bbhc1	C:27-210

(no "CATH Domain" information available for 4BBH)

(no "Pfam Domain" information available for 4BBH)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C (A5K1A2_PLAVS | A5K1A2)

molecular function
	GO:0004379	glycylpeptide N-tetradecanoyltransferase activity	Catalysis of the reaction: tetradecanoyl-CoA + glycyl-peptide = CoA + N-tetradecanoylglycyl-peptide.
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0016746	transferase activity, transferring acyl groups	Catalysis of the transfer of an acyl group from one compound (donor) to another (acceptor).
biological process
	GO:0006499	N-terminal protein myristoylation	The covalent attachment of a myristoyl group to the N-terminal amino acid residue of a protein.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		DMS	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		NHW	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		YBN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Pro A:203 - Lys A:204	[ RasMol ]
		Pro B:203 - Lys B:204	[ RasMol ]
		Pro C:203 - Lys C:204	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	4bbh
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	A5K1A2_PLAVS \| A5K1A2
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	2.3.1.97
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	A5K1A2_PLAVS \| A5K1A2
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

4a95	PLASMODIUM VIVAX N-MYRISTOYLTRANSFERASE WITH QUINOLINE INHIBITOR
4b10	PLASMODIUM VIVAX N-MYRISTOYLTRANSFERASE WITH A NON- HYDROLYSABLE CO-FACTOR
4b11	PLASMODIUM VIVAX N-MYRISTOYLTRANSFERASE WITH A BOUND BENZOFURAN INHIBITOR (COMPOUND 13)
4b12	PLASMODIUM VIVAX N-MYRISTOYLTRANSFERASE WITH A BOUND BENZOFURAN INHIBITOR (COMPOUND 23)
4b13	PLASMODIUM VIVAX N-MYRISTOYLTRANSFERASE WITH A BOUND BENZOFURAN INHIBITOR (COMPOUND 25)
4b14	PLASMODIUM VIVAX N-MYRISTOYLTRANSFERASE WITH A BOUND BENZOFURAN INHIBITOR (COMPOUND 26)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (6, 16)

Sites (16, 16)

SS Bonds (0, 0)

Cis Peptide Bonds (3, 3)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 3)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (4, 4)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
