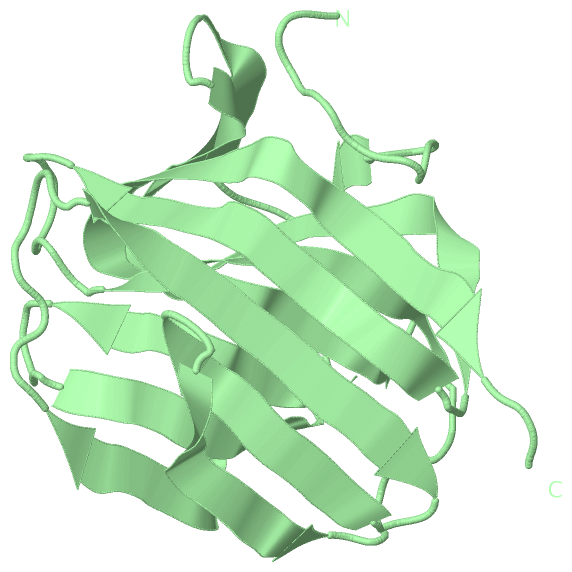

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CARBOHYDRATE BINDING MODULE CBM66 FROM BACILLUS SUBTILIS

Authors :  T. M. Gloster, J. E. Flint, H. J. Gilbert, G. J. Davies
Date :  27 Jun 12  (Deposition) - 25 Jul 12  (Release) - 09 Jan 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.70
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Hydrolase, Levan (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Cuskin, J. E. Flint, T. M. Gloster, C. Morland, A. Basle, B. Henrissat, P. M. Coutinho, A. Strazzulli, A. S. Solovyova, G. J. Davies, H. J. Gilbert
How Nature Can Exploit Nonspecific Catalytic And Carbohydrate Binding Modules To Create Enzymatic Specificity.
Proc. Natl. Acad. Sci. Usa V. 109 20889 2012
PubMed-ID: 23213210  |  Reference-DOI: 10.1073/PNAS.1212034109

(-) Compounds

Molecule 1 - LEVANASE
    Chains: A, B
    EC Number: 3.2.1.80
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: CARBOHYDRATE BINDING MODULE, RESIDUES 515-677
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423
    Synonym: BETA-D-FRUCTOFURANOSIDASE, EXO-BETA-D-FRUCTOSIDASE, EXO-LEVANASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4AZZ)

(-) Sites  (0, 0)

(no "Site" information available for 4AZZ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4AZZ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4AZZ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4AZZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4AZZ)

(-) Exons   (0, 0)

(no "Exon" information available for 4AZZ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:165
 aligned with SACC_BACSU | P05656 from UniProtKB/Swiss-Prot  Length:677

    Alignment length:165
                                                                                                                                                                                           677
                                   525       535       545       555       565       575       585       595       605       615       625       635       645       655       665       675 |
           SACC_BACSU   516 TPFMSNMTGWTTVNGTWADTIEGKQGRSDGDSFILSSASGSDFTYESDITIKDGNGRGAGALMFRSDKDAKNGYLANVDAKHDLVKFFKFENGAASVIAEYKTPIDVNKKYHLKTEAEGDRFKIYLDDRLVIDAHDSVFSEGQFGLNVWDATAVFQNVTKES---   -
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........eeee.eeeee..eeeeeeeeeeeeeeeeee..eeeeeeeee.......eeeeeeee......eeeeeee....eeeeeeee..eeeeeeeee.......eeeeeeeee..eeeeee..eeeeeee......eeeeeeeeeeeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4azz A   3 TPFMSNMTGWTTVNGTWADTIEGKQGRSDGDSFILSSASGSDFTYESDITIKDGNGRGAGALMFRSDKDAKNGYLANVDAKHDLVKFFKFENGAASVIAEYKTPIDVNKKYHLKTEAEGDRFKIYLDDRLVIDAHDSVFSEGQFGLNVWDATAVFQNVTKESLEH 167
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162


Chain B from PDB  Type:PROTEIN  Length:165
 aligned with SACC_BACSU | P05656 from UniProtKB/Swiss-Prot  Length:677

    Alignment length:165
                                                                                                                                                                                           677
                                   525       535       545       555       565       575       585       595       605       615       625       635       645       655       665       675 |
           SACC_BACSU   516 TPFMSNMTGWTTVNGTWADTIEGKQGRSDGDSFILSSASGSDFTYESDITIKDGNGRGAGALMFRSDKDAKNGYLANVDAKHDLVKFFKFENGAASVIAEYKTPIDVNKKYHLKTEAEGDRFKIYLDDRLVIDAHDSVFSEGQFGLNVWDATAVFQNVTKES---   -
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........ee...eeeee..eeeeeeeeeeeeeeeeee..eeeeeeeee.......eeeeeeee......eeeeeee....eeeeeeee..eeeeeeeee.......eeeeeeeee..eeeeee..eeeeeee......eeeeeeeeeeeeeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4azz B   3 TPFMSNMTGWTTVNGTWADTIEGKQGRSDGDSFILSSASGSDFTYESDITIKDGNGRGAGALMFRSDKDAKNGYLANVDAKHDLVKFFKFENGAASVIAEYKTPIDVNKKYHLKTEAEGDRFKIYLDDRLVIDAHDSVFSEGQFGLNVWDATAVFQNVTKESLEH 167
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4AZZ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4AZZ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4AZZ)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (SACC_BACSU | P05656)
molecular function
    GO:0051669    fructan beta-fructosidase activity    Catalysis of the hydrolysis of terminal, non-reducing 2,1- and 2,6-linked beta-D-fructofuranose residues in fructans.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
    GO:0004575    sucrose alpha-glucosidase activity    Catalysis of the reaction: sucrose + H2O = alpha-D-glucose + beta-D-fructose.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0005987    sucrose catabolic process    The chemical reactions and pathways resulting in the breakdown of sucrose, the disaccharide fructofuranosyl-glucopyranoside.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
