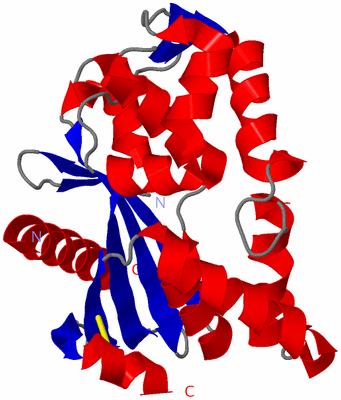

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE ORF273 PROTEIN FROM THE ACIDIANUS TWO-TAILED VIRUS

Authors :  C. Felisberto-Rodrigues, M. Ortiz-Lombardia
Date :  09 May 12  (Deposition) - 24 Oct 12  (Release) - 24 Oct 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.85
Chains :  Asym./Biol. Unit :  A
Keywords :  Viral Protein, Archaeal Virus, Extremophiles, Bicaudavirus, Hyper- Thermostability (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Felisberto-Rodrigues, S. Blangy, A. Goulet, G. Vestergaard, C. Cambillau, R. A. Garrett, M. Ortiz-Lombardia
Crystal Structure Of Atv(Orf273), A New Fold For A Thermo- And Acido-Stable Protein From The Acidianus Two-Tailed Virus.
Plos One V. 7E45847 2012
PubMed-ID: 23056221  |  Reference-DOI: 10.1371/JOURNAL.PONE.0045847

(-) Compounds

Molecule 1 - STRUCTURAL PROTEIN ORF273
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Variant: T7 IQ PLYSS
    Expression System Vector: PET28A
    Expression System Vector Type: PLASMID
    Organism Scientific: ACIDIANUS TWO-TAILED VIRUS
    Organism Taxid: 315953

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4ATS)

(-) Sites  (0, 0)

(no "Site" information available for 4ATS)

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:250 -A:263

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4ATS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ATS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ATS)

(-) Exons   (0, 0)

(no "Exon" information available for 4ATS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:233
 aligned with Y273_ATV | Q3V4T6 from UniProtKB/Swiss-Prot  Length:273

    Alignment length:245
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264
             Y273_ATV    25 TNDEEKLADIVENEIEKEIRKSKTRKCKTIENFYYYILRDGKIYPASDYDIEVEKGKRSANDIYAFVETDVTRDFDEFLFDIDYGLPSISDILKFYLEKAGFRIANEVPTPNLKYYIHAVVEFGEDRPQYLAVNIYDIDSLARALRIPQIVEQKLGNKPRTITADEFNDIERIVAEEQPILAGYTYDEALRIPYHYYVDHNNSFKDDALKIAHAYLQLFPTPYQVCYEWKARWFNKIDCLKLERL 269
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh.------------.eeee....eeehhhhhhhhhh...hhh.eeeeeeeeee.hhhhhhhhhhhh..hhhhhhhhhhhhh..ee..........eeeeeeeee....eeeeeeeeeehhhhhhhhhhhhhhhhhhh....eehhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh...eeeeeee....eeeehhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ats A  25 TNDEEKLADIVENEIEKEIRK------------YYYILRDGKIYPASDYDIEVEKGKRSANDIYAFVETDVTRDFDEFLFDIDYGLPSISDILKFYLEKAGFRIANEVPTPNLKYYIHAVVEFGEDRPQYLAVNIYDIDSLARALRIPQIVEQKLGNKPRTITADEFNDIERIVAEEQPILAGYTYDEALRIPYHYYVDHNNSFKDDALKIAHAYLQLFPTPYQVCYEWKARWFNKIDCLKLERL 269
                                    34        44|        -   |    64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264
                                               45           58
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ATS)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ATS)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ATS)

(-) Gene Ontology  (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Y273_ATV | Q3V4T6)
cellular component
    GO:0019012    virion    The complete fully infectious extracellular virus particle.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4ats)

  Sites
(no "Sites" information available for 4ats)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4ats)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4ats
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y273_ATV | Q3V4T6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y273_ATV | Q3V4T6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Y273_ATV | Q3V4T6: 4art

(-) Related Entries Specified in the PDB File

4art STRUCTURE OF THE ORF273 PROTEIN FROM THE ACIDIANUS TWO -TAILED VIRUS
